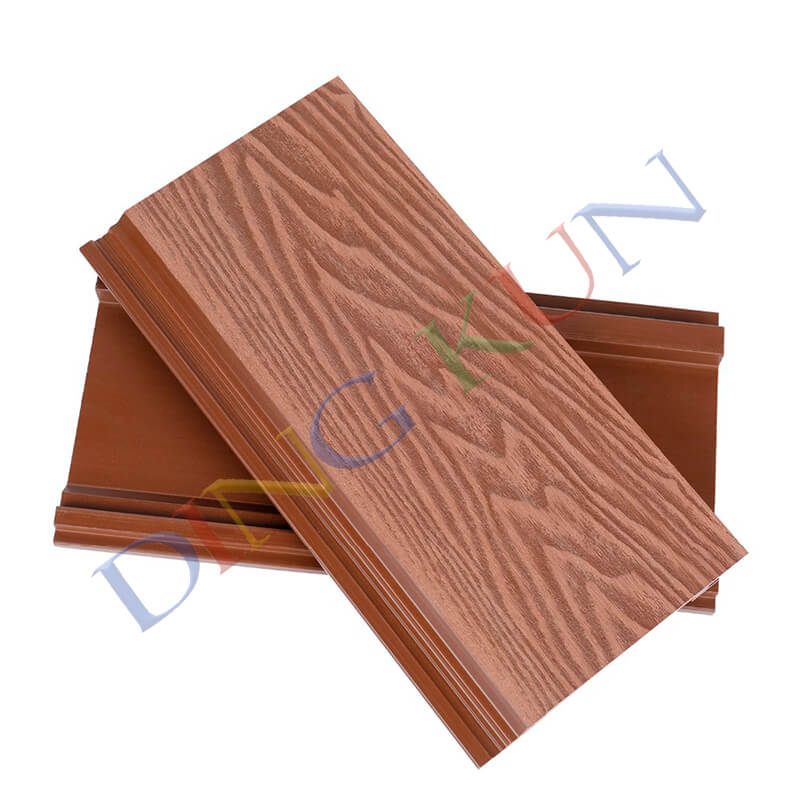

WPC Wall Panel Machine
WPC PVC wall panel production line, wpc pvc wall cladding machine it is a kind of high efficiency equipment for plastic extrusion, it is mainly composed by force feeder, soft plasticization screw and barrel, high precision gearbox, exhaust system, it is features of even mixing, better plasticization, stable working, high capacity, and it is suitable for produce PVC products from mixed powder, within different mold and other auxiliary equipments, it can produce plastic pipe, profile, board, sheet, granules and so on
Message
E-mail
WPC PVC Wall Panel Machine
1. This plastic production line is suitable for the production of PVC and WPC as raw material products.

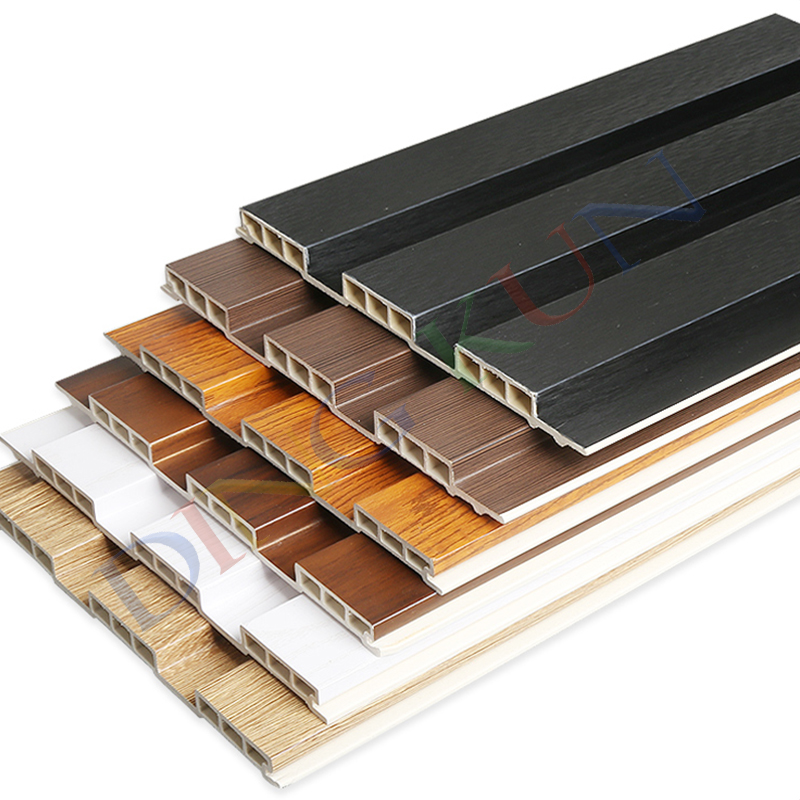

2. By replacing the mould, the same production line can be used to produce PVC/WPC ceiling panel, wall panel, U-Clip, flooring, lines etc.
3. Depend on the different products, this production line can be configured with on-line hot printing and off-line lamination.

       Model and parameters

Extruder  modelScrew diameter(mm)Capacity(kg/h)Main motor(kw)
SJSZ51/10551/10512018.5
SJSZ55/11055/11015022
SJSZ65/13265/13225030/37

Production line list

No.Machine NameQuantity
1Screw feeder1 set
2SJSZ series conical twin screw extruder1 set
3Extrusion Mould1 set
4Vacuum calibration table1 set
5Haul-off machine1 set
6Automatic cutting machine1 set
7Stacker1 set
Supporting machine(Optional)
1Hot&cold mixing units1 set
2Hot stamping machine(or Laminating machine)1 set
3Crushing machine1 set
4Grinding machine1 set

On-line hot stamping process
Raw material mixing→ Screw feeder → Extruder → Mould → Vacuum forming tank→Hot stamping machine  →Haul-off machine→ Cutting machine → Stacker(finished product)


Off-line transfer laminating process
Raw material mixing→ Screw feeder → Extruder → Mould → Vacuum forming table→Haul-off machine→ Cutting machine → Transfer table→ Lamination machine →  Stacker(finished product)


Twin Screw Extruder

Machine Electrical part:ABB inverter,Siemens Motor,Schneider Contactor,,Electrical wire is CE export standard

Screw& Barrel : Zhoushan

Control system : SIEMENS PLC or OMRON table control

pvc wall cladding machine (1).jpg

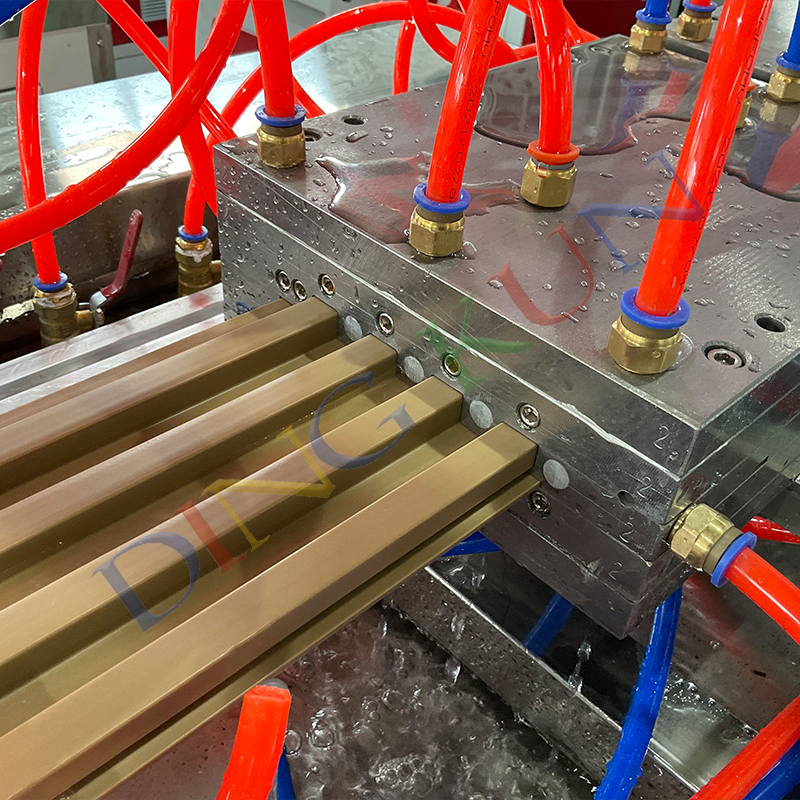

PVC Wall Cladding Mold

pvc wall cladding machine (2).jpg

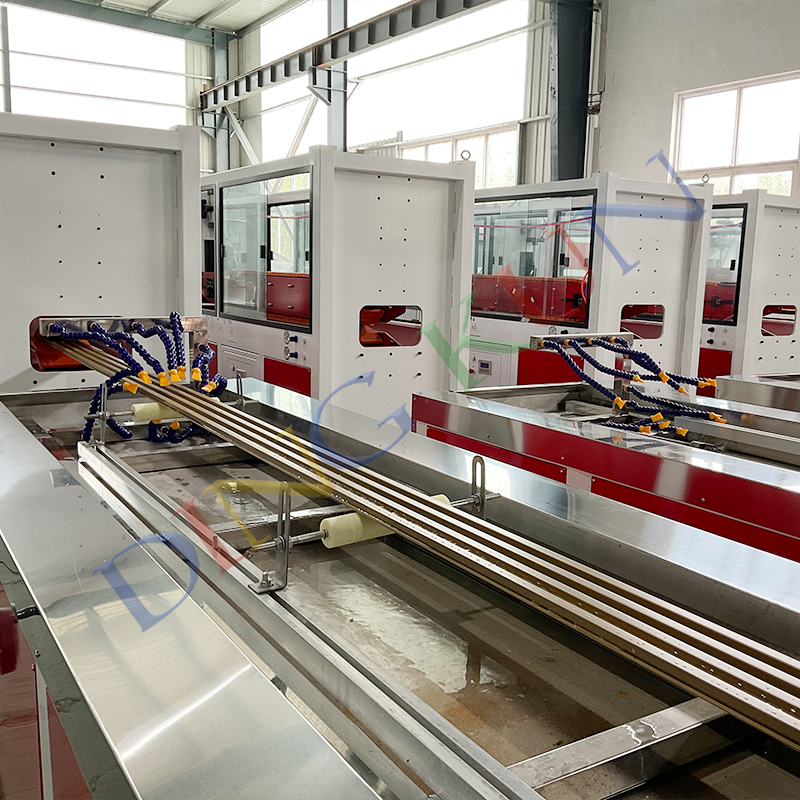

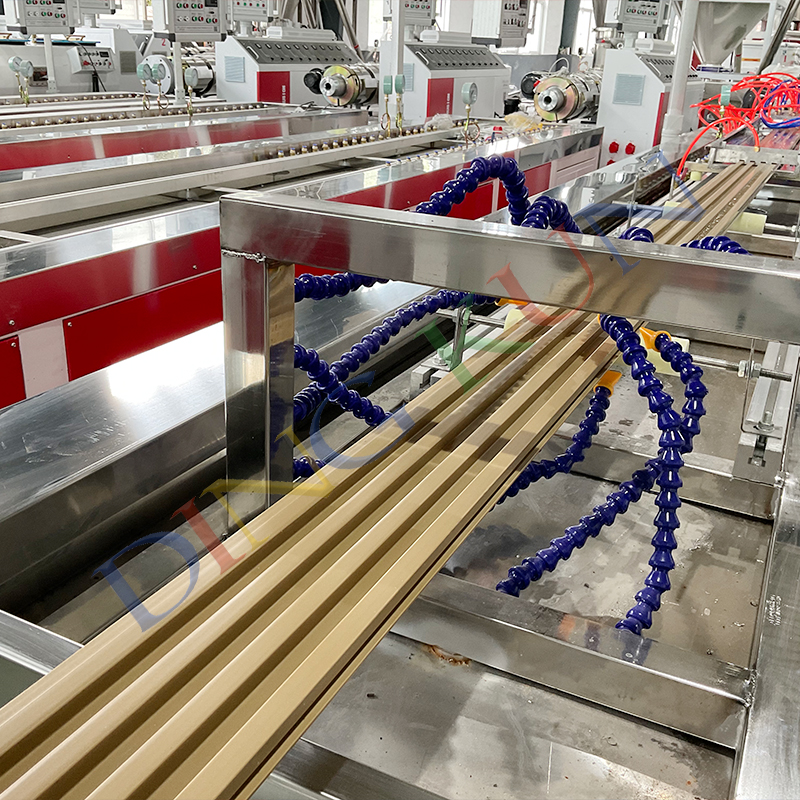

Vacuum Calibration platform
Vacuum calibration table structure adopt 304# Materia.There is also table up & down motor and forward & back motor,It is all automatic.It is easy to adjust the mold with Vacuum table. All material what touch with water ,we all use stainless steel.

pvc wall cladding machine (3).jpg

Haul-off & Cutter Machine
Haul-off Machine: Rubber block is soft material. Adopt best design,it can press products closed,and delivery stably.We choose Geax motor,and control two sets motor by ABB inverter,this mean confirm the two arm run with precise.
Cutting Machine control by PLC,we can cutting by meter.We provide different saw to cut different material products,we also havetwo kind of cutter.One is saw cutter,another one is no-dust cutter(cutting by knife).

pvc wall cladding machine (4).jpg

Auto Stacker
Length: 6 metermaterial: stainless steel
Equipped with length limit switch
Automatic stacking

pvc wall cladding machine (5).jpg
