This line can be used in the area of cable pavement pipes production. Whole line consists of conical twin screw extruder, four cavity mould, vacuum calibration cooling tank, haul-off, cutter, tripping table /belling machine,etc. And the line can be equipped with PLC control, ink-jet/laser printer, crusher, shredder, Pulverizer ,water chiller, air compressor etc. Advanced design for screws and barrel supplies powerful safeguard for the PVC plasticization.

Produce Process

Screw Loader for Mixer→ Mixer unit→ Screw Loader for Extruder→ Conical twin screw extruder → Mould → Vacuum Calibration Cooling Tank → Haul-off and cutting unit → Belling machine/ Stacker → Final Product Inspecting & Packing

Machine Details:

SJSZ Conical Twin Screw Extruder

Using high efficient conical twin screws, specially designed for PVC power to ensure uniformed plasticization, high extrusion. Stable temperature controlling system can guarantee high quality pipe extrusion.

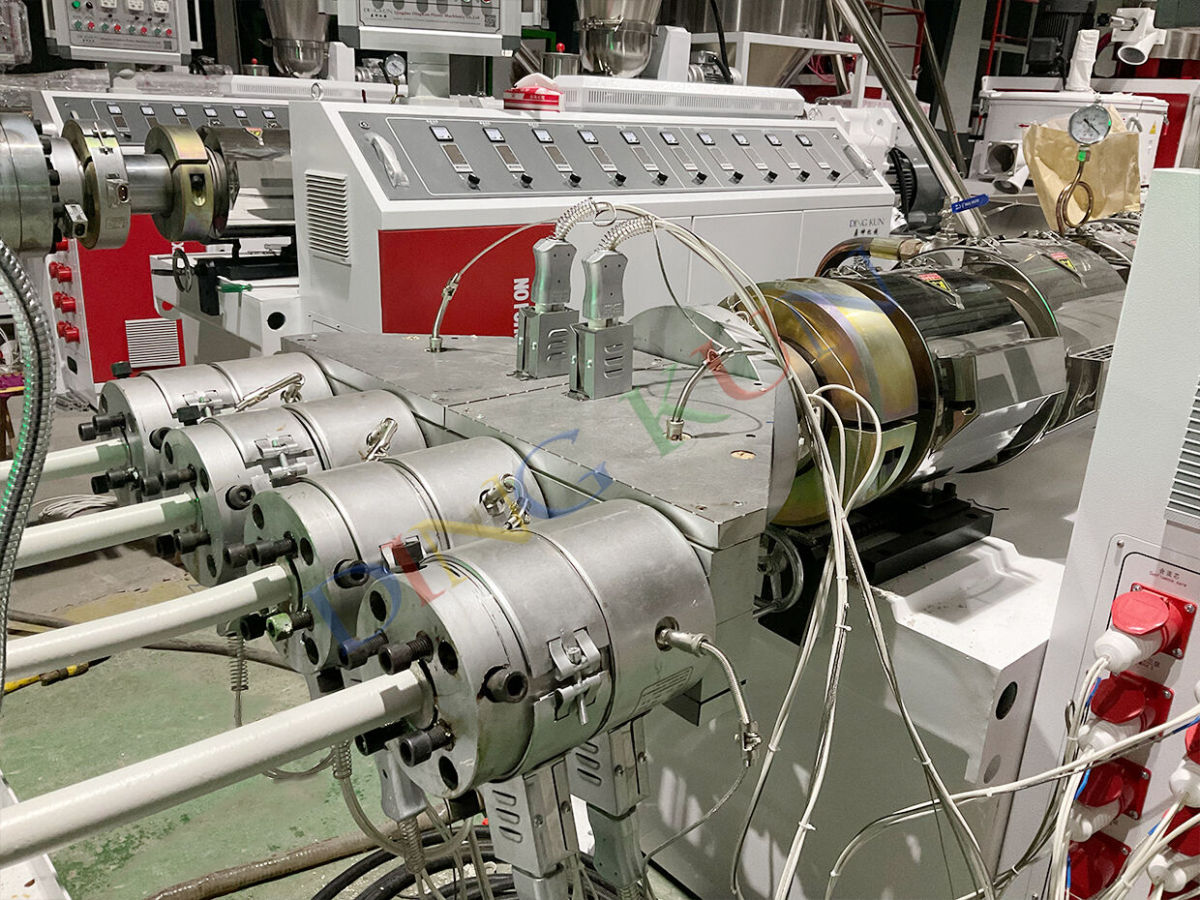

Four Pipe Mould:

Extrusion die head apply bracket structure, each material flow channel is placed evenly. Each channel is after heat treatment, mirror polishing and chroming to ensure material flow smoothly. Die head is modular design, easy for changing pipe sizes, assembling, dismantle and maintenance. Can produce single layer or multi-layer pipe.

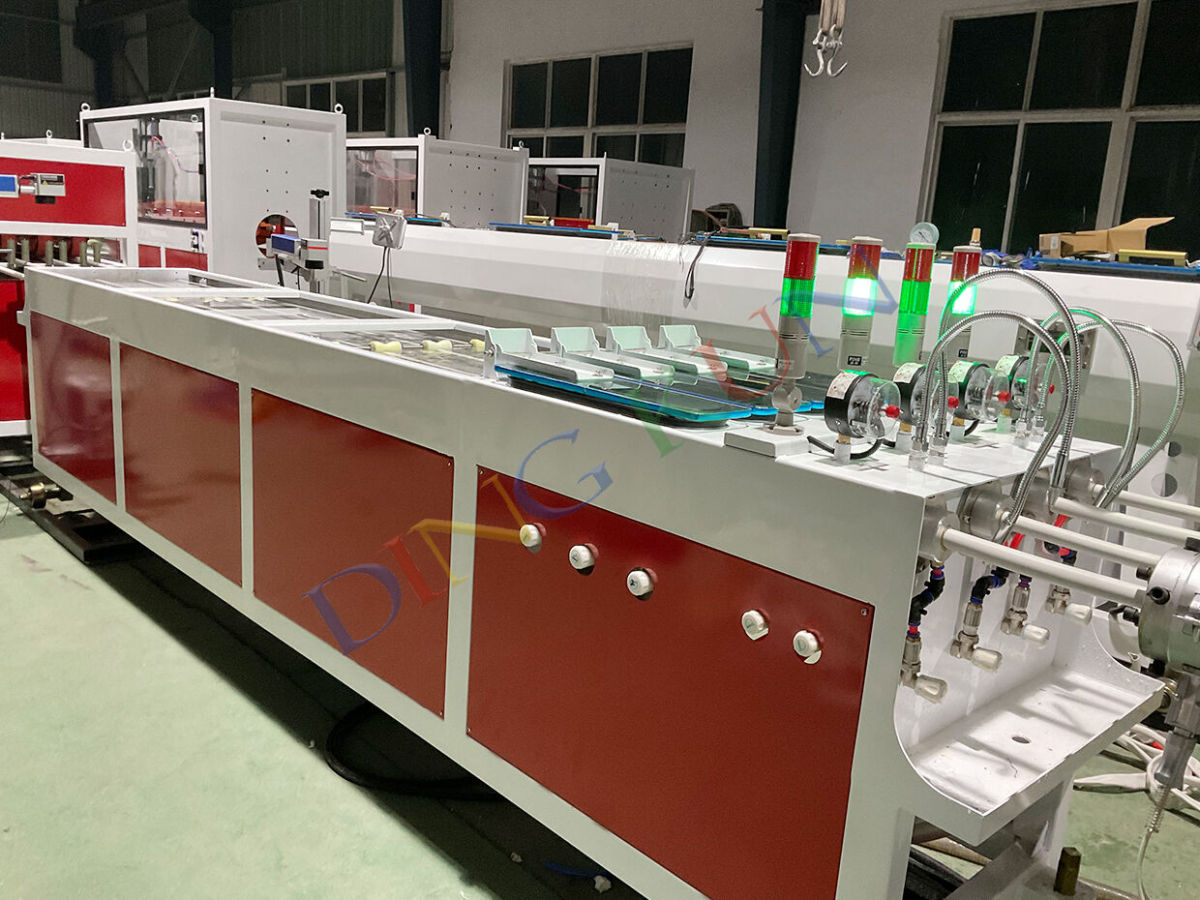

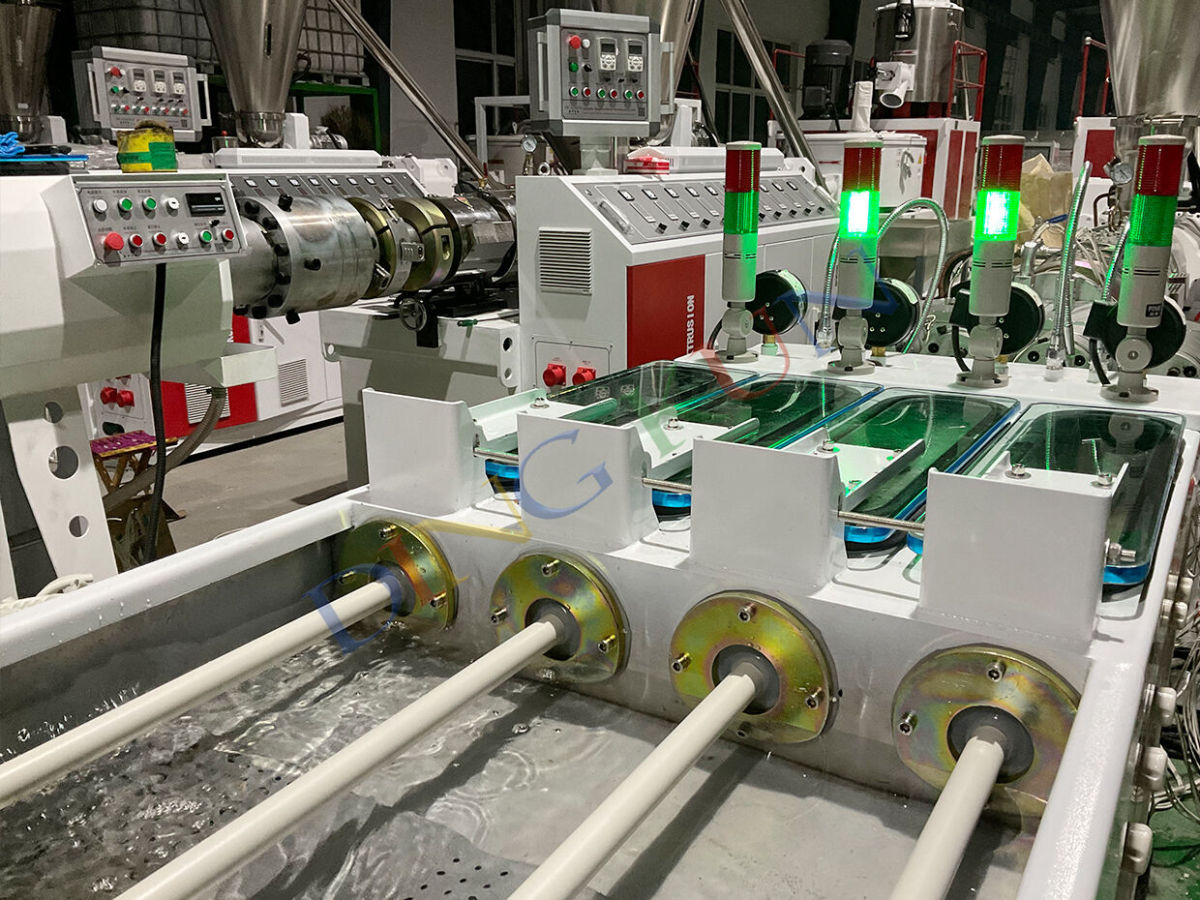

Four Pipe Vacuum Calibration Tank

Vacuum tank is used to shape and cool pipe, so as to reach standard pipe size.  First chamber is in short length, to ensure very strong cooling and vacuum function. As calibrator is placed in the front of first chamber and pipe shape is formed mainly by calibrator, this design can ensure quick and better forming and cooling of pipe.

Four Pipe Haul off & Cutter Machine:

Adopts caterpillar type,suitable for different sizes of pipes. Haul off caterpillar blocks are made of abrasion resistant rubber material, which can make a high and stable hauling speed.

Four Pipe Stacker

BEST PVC PIPE MACHINE - FOCUS EXPORT MARKT MORE THAN 16 YEARS, WIN-WIN COOPERATION!

Qingdao Dingkun Plastic Machinery Co.,Ltd . manufacture PVC Four Pipes Making Machine and supply OEM, ODM service according to your requirement. Our PVC Four Pipes Machine is good in quality and competitive in price, welcome to contact us for more details of PVC Pipe Making Machine or related products.
