PVC Window & Door Profile Machine

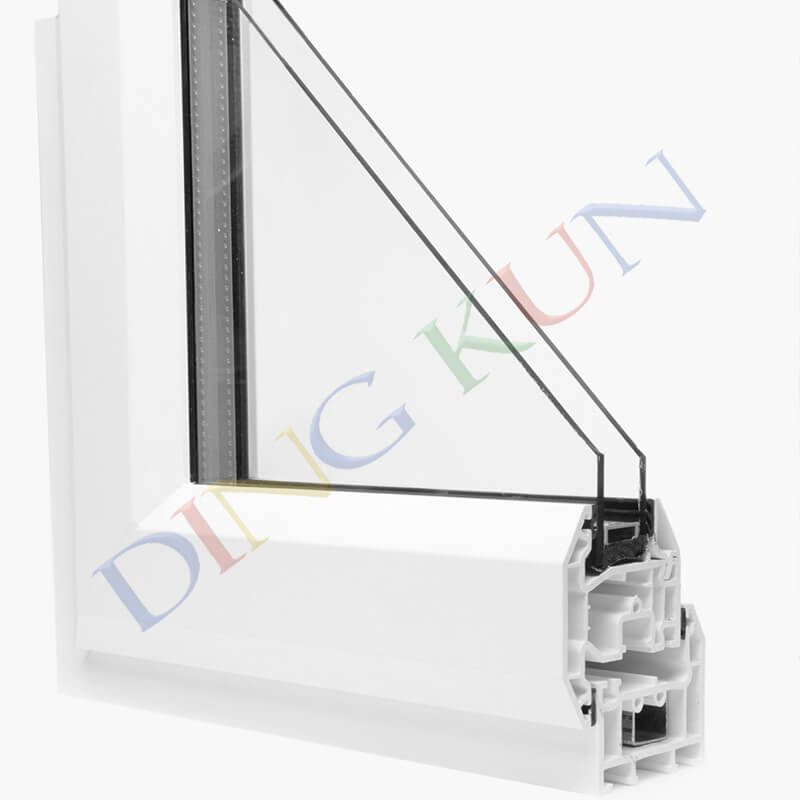

The door and windows profile is made of PVC powder. It is widely used as window and door profile, as well as decorative material. With modern technology and optimized design, it has the property of high output capacity, long life and plastic evently.
Normal pvc windows line is composed of extruder, mould, vacuum calibration table, haul-off and cutter, stacker. With different mould, PVC profile machine can produce PVC products with different shapes, Mould designed by different kinds of profile customer required.
Normal pvc windows line is composed of extruder, mould, vacuum calibration table, haul-off and cutter, stacker. With different mould, PVC profile machine can produce PVC products with different shapes, Mould designed by different kinds of profile customer required.
Message
Upvc / pvc Window Door Profile Making Machine
Process flow
Raw material +wood power+ additive → mixing → conical twin-screw extruder → profile extrusion mould → cool molding die → vacuum calibration support → belt haul-off → cutter → rack → finished product inspecting & packing
Main Technical Data

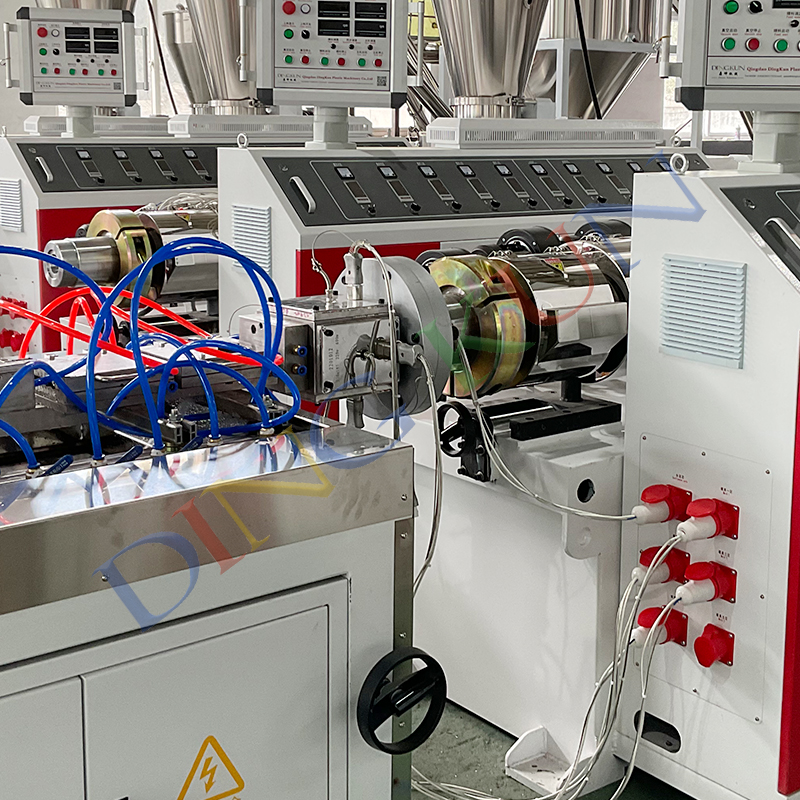

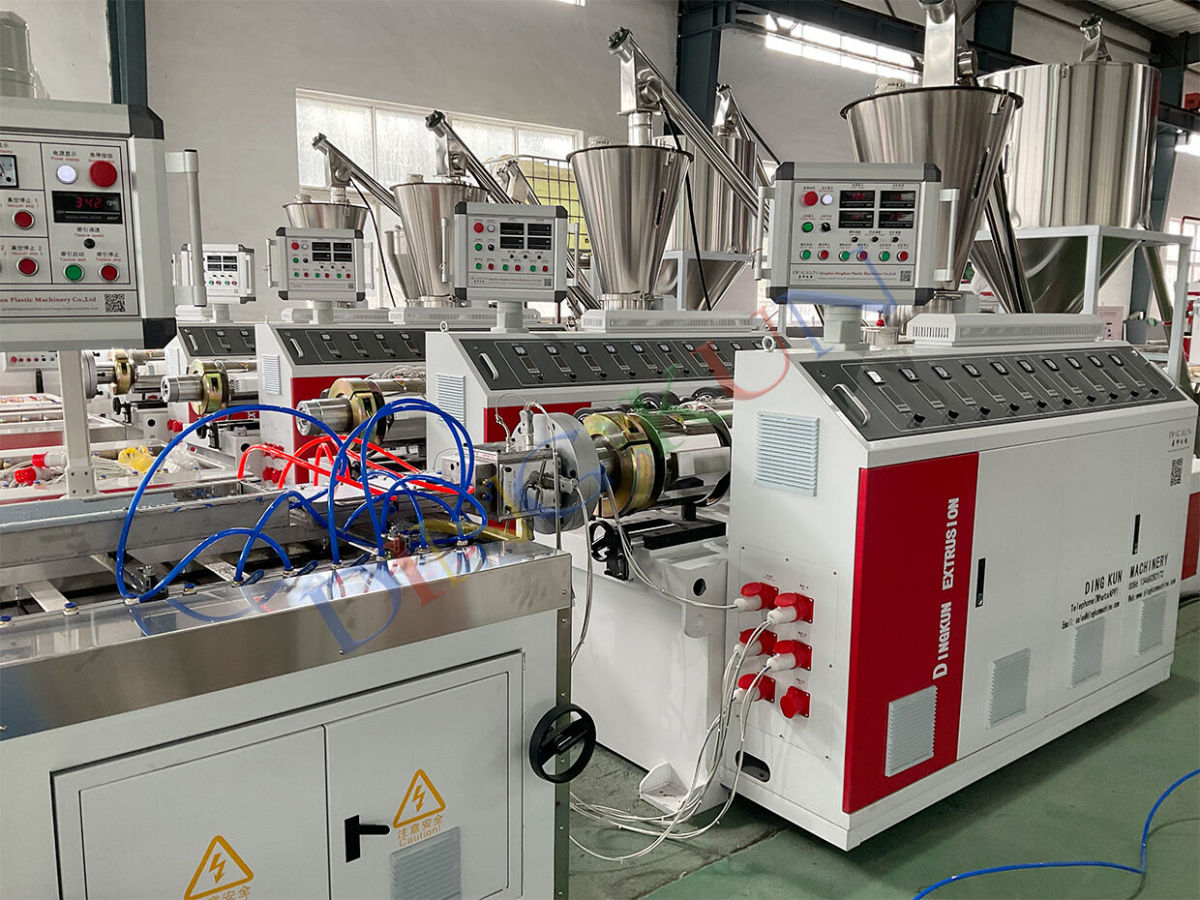

Twin Screw Extruder
Machine Electrical part:ABB inverter,Siemens Motor,Schneider Contactor,,Electrical wire is CE export standard
Screw& Barrel : Zhoushan
Control system : SIEMENS PLC or OMRON table control

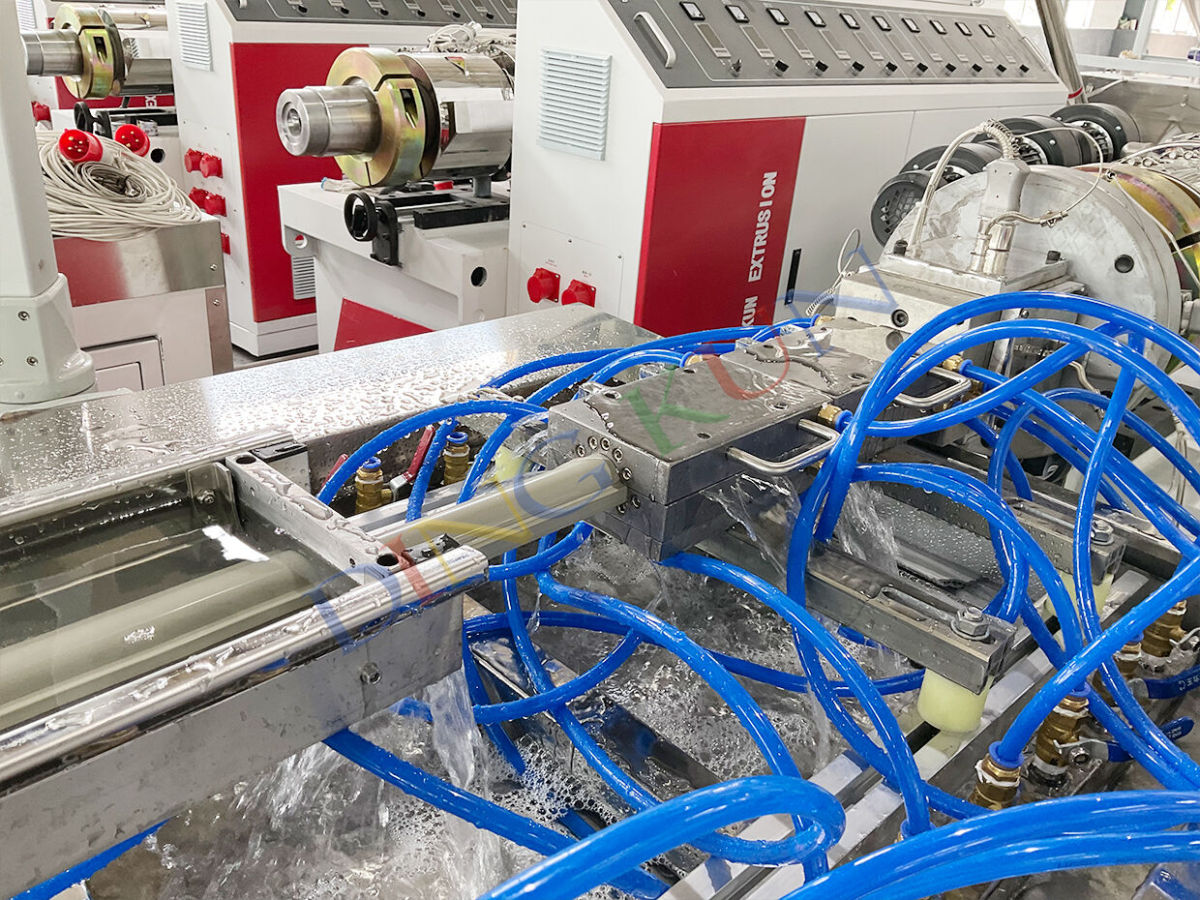

Mold

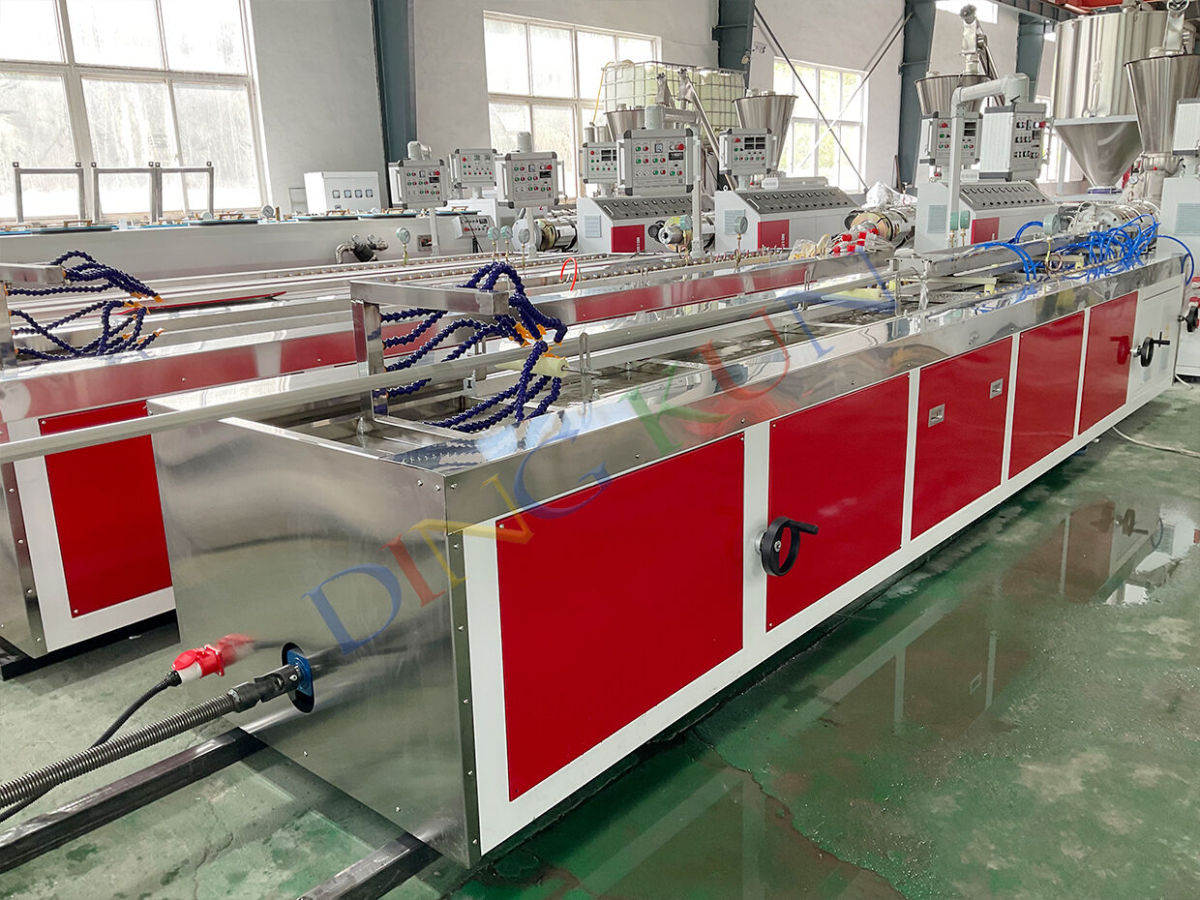

Vacuum Calibration platform
Vacuum calibration table structure adopt 304# Materia.There is also table up & down motor and forward & back motor,It is all automatic.It is easy to adjust the mold with Vacuum table. All material what touch with water ,we all use stainless steel.

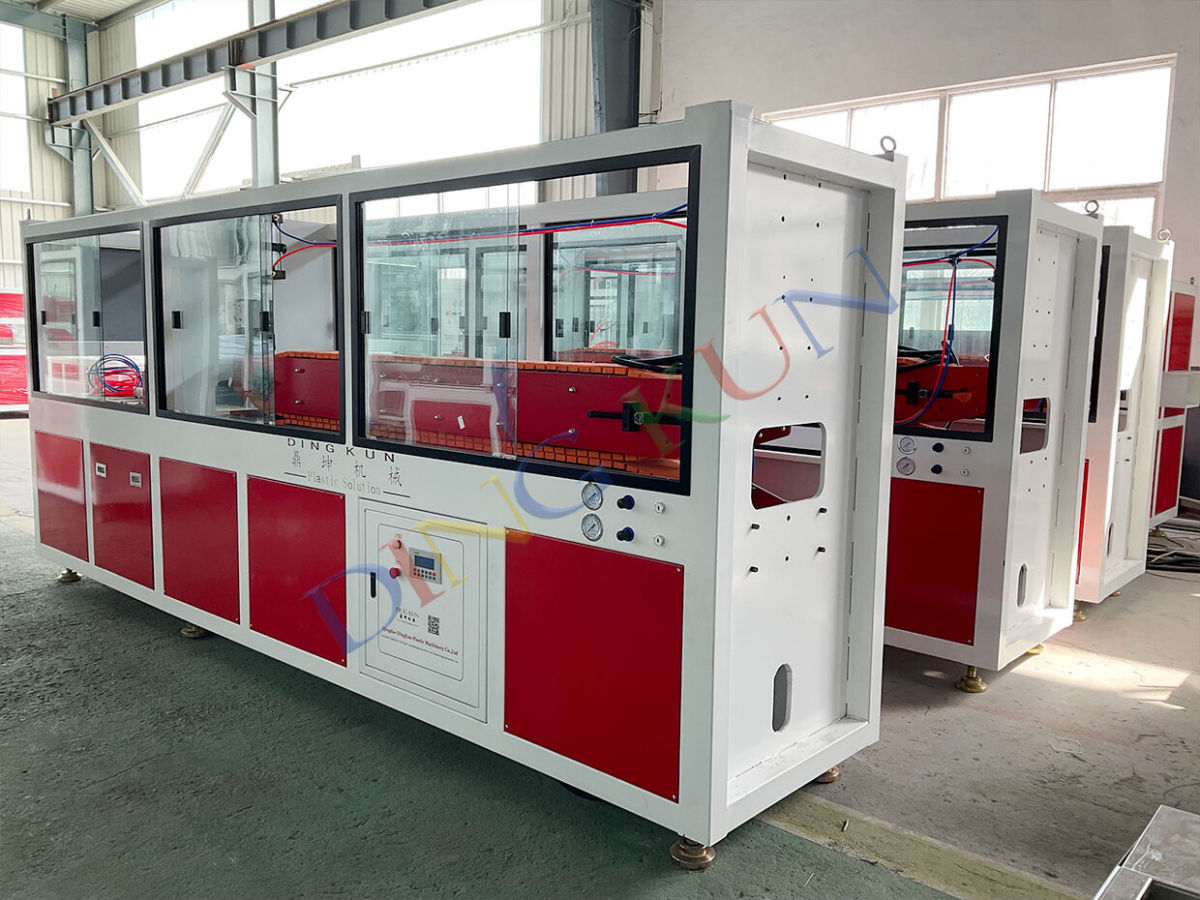

Haul-off & Cutter Machine
Haul-off Machine: Rubber block is soft material. Adopt best design,it can press products closed,and delivery stably.We choose Geax motor,and control two sets motor by ABB inverter,this mean confirm the two arm run with precise.
Cutting Machine control by PLC,we can cutting by meter.We provide different saw to cut different material products,we also havetwo kind of cutter.One is saw cutter,another one is no-dust cutter(cutting by knife).
Cutting Machine control by PLC,we can cutting by meter.We provide different saw to cut different material products,we also havetwo kind of cutter.One is saw cutter,another one is no-dust cutter(cutting by knife).
Qingdao Dingkun Plastic Machinery Co.,Ltd . manufacture PVC Windows and Door Profiles Extrusion Line and supply OEM, ODM service according to your requirement. Our PVC Windows and Door Profiles Extrusion Line is good in quality and competitive in price, welcome to contact us for more details of PVC Windows and Door Profiles Extrusion Line or related products.
