PVC Ceiling Panel / Profile Machine

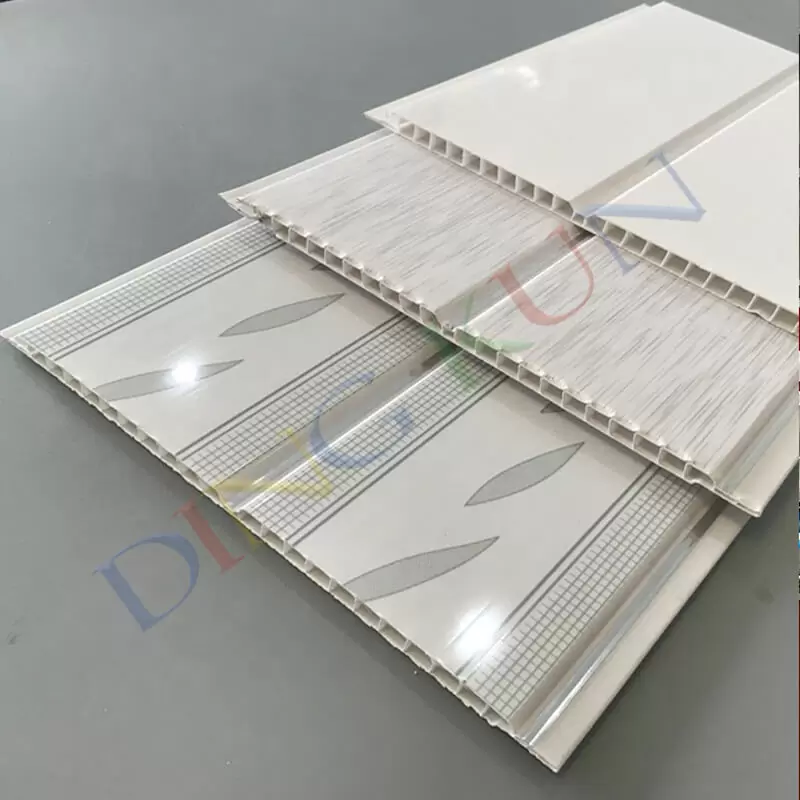

PVC Ceiling Panel / Profile machine is mainly used for making PVC ceiling panels , PVC Ceiling Corners different section shape and height. The surface of PVC profile/panel can be treated by printing & coated with glossy oil, or by heat transfer printing, or by lamination, which can make good decoration effect for kitchen, toilet,balcony and so on.
Message
E-mail

PVC Ceiling Panel / Profile machine
This production line developed by us is featured of unique structure, high degree of automatic, easy operation and stable reliable continuous manufacture performance.
It produce PVC ceiling wall panel with different size, such as 200mm, 250m,300mm, 400mm, 600mm and so on. (Material batching mixing-extruding-molding-vacuum calibrating and cooling-hauling-cutting- final PVC ceiling)


Process flow

Automatic loader→ double screw extruder machine → mould → vacuum calibration spraying platform → online lamination or hot stamping transfer machine(option) → blade cutter → stacker


Main technical specifications of machines
Maximum panel width300mm400mm600mmProfiles
Extruder modelSJZ 55SJZ 65SJZ 65/SJZ80SJZ 51
Extruder motor22kw37kw37kw/55kw15kw
Production speed2m/min4m/min3m/min2m/min
Production speed120kg/h220kg/h220kg/h / 400kg/h100kg/h
Machine List
No.NameQty.Remark
1Spring loader for extruder1
2SJZ series conical twin screw extruder1
3Extrusion mould unit1Change mould for different shape
4Vacuum calibration Table1
5Haul off unit1
6Lamination & hot stamping machine(inline)1Change film for different pattern
7Blade Cutter1
8Stacker1
Auxiliary Machine
9SRL-Z Series Mixer unit1Capacity : 450-550kg/h
10Screw loader for Mixer12.2kw
11Crusher1Power: 11kw,22kw,30kw
12Pulverizer1Power: 45kw,55kw,75kw

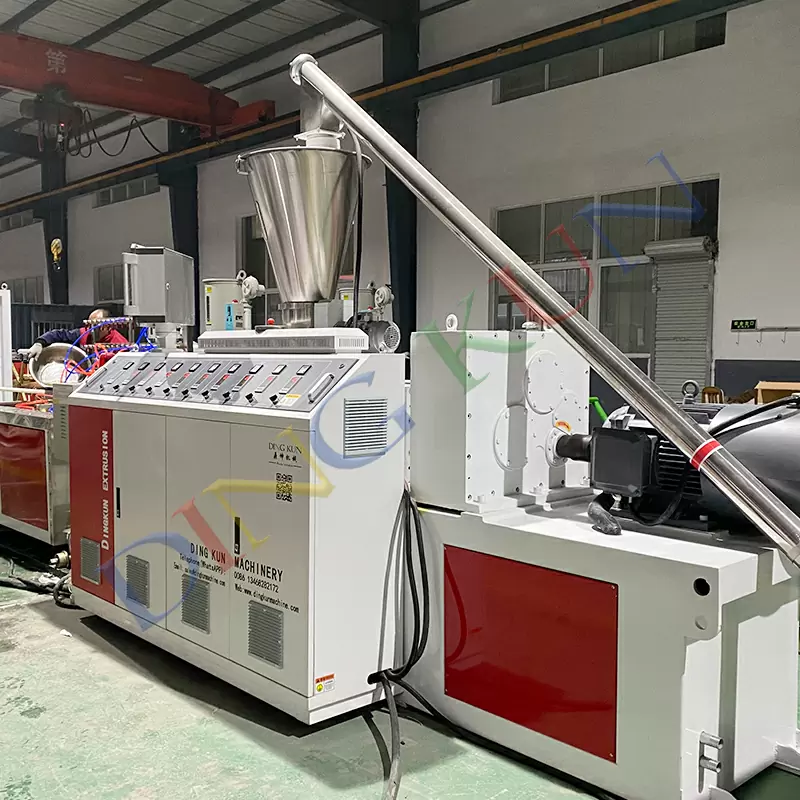

Twin Screw Extruder

Machine Electrical part:ABB inverter,Siemens Motor,Schneider Contactor,Electrical wire is CE export standard

Screw& Barrel : Zhoushan

Control system : SIEMENS PLC or OMRON table control

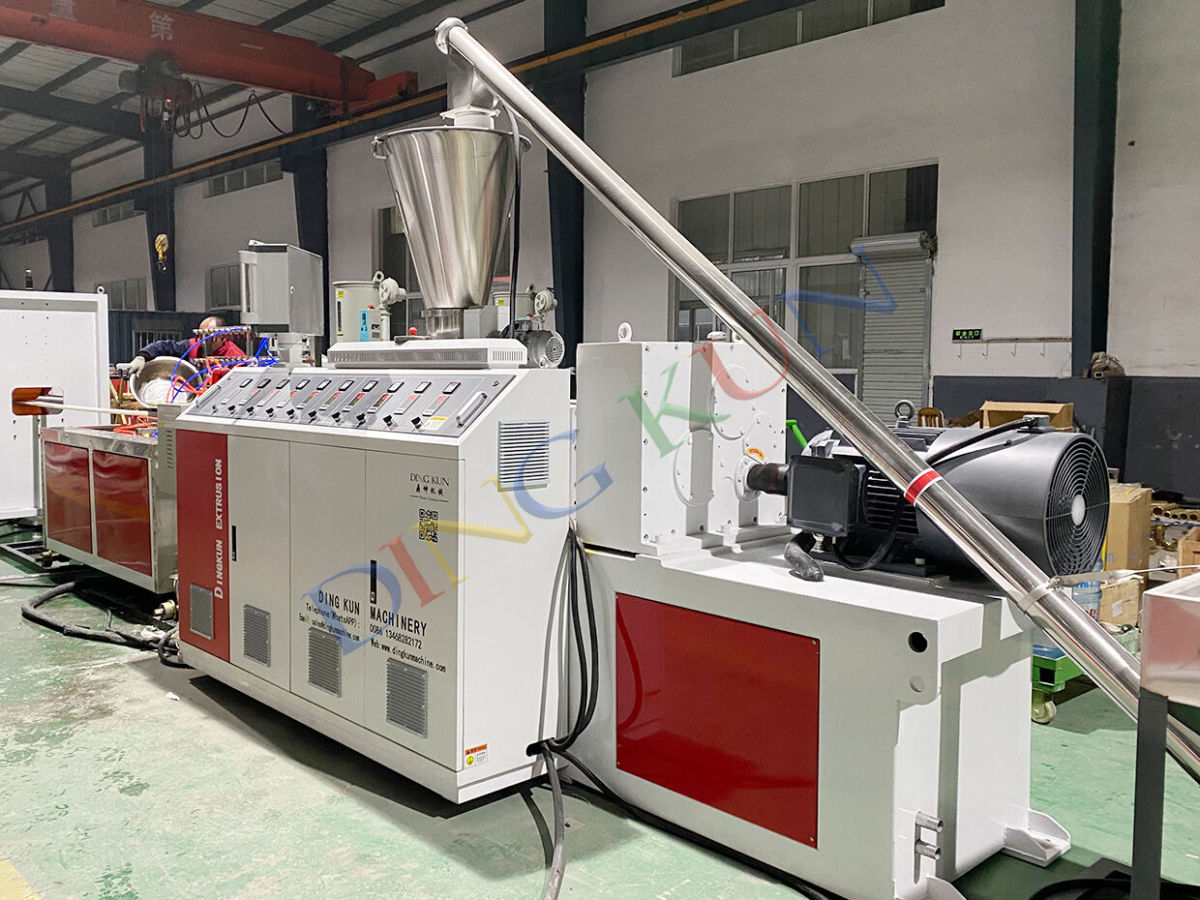

pvc ceiling machine (1).jpg

Mold

pvc ceiling machine (2).jpg

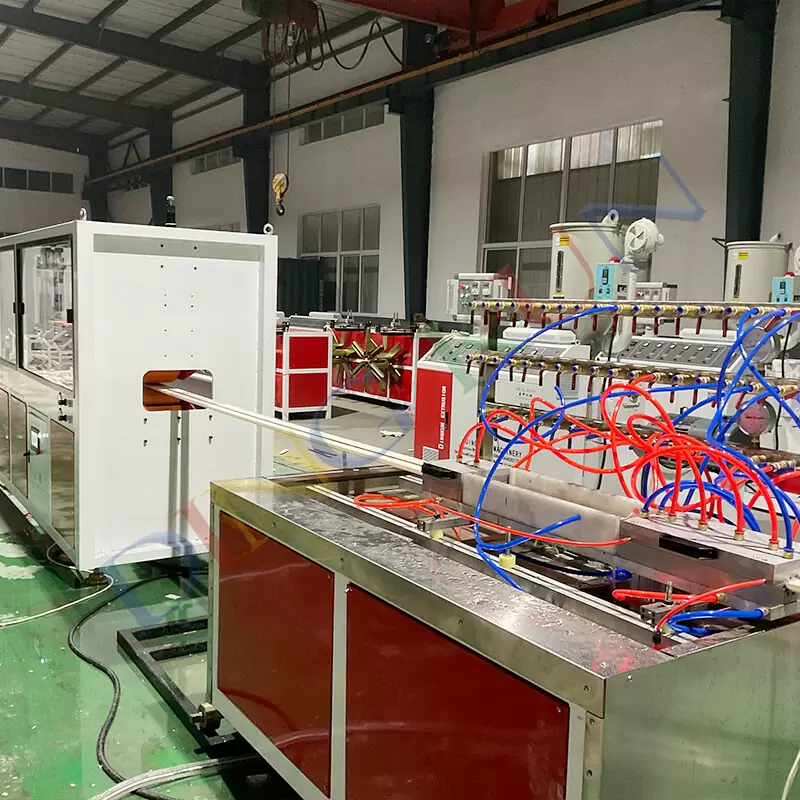

Vacuum Calibration platform
Vacuum calibration table structure adopt 304# Materia.There is also table up & down motor and forward & back motor,It is all automatic.It is easy to adjust the mold with Vacuum table. All material what touch with water ,we all use stainless steel.

pvc ceiling machine (3).jpg

Haul-off & Cutter Machine
Haul-off Machine: Rubber block is soft material. Adopt best design,it can press products closed,and delivery stably.We choose Geax motor,and control two sets motor by ABB inverter,this mean confirm the two arm run with precise.

Cutting Machine control by PLC,we can cutting by meter.

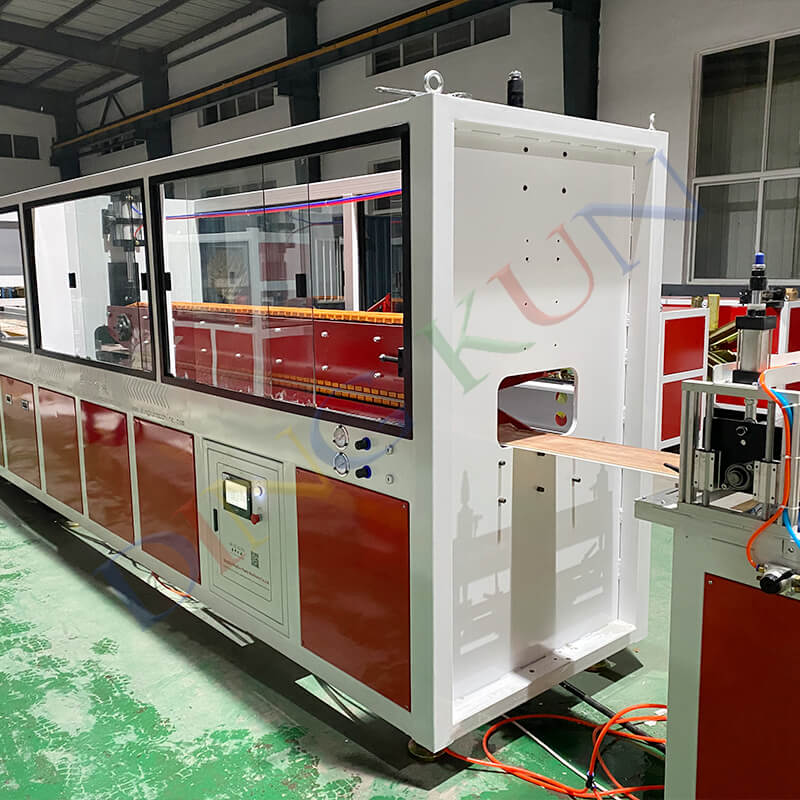

pvc ceiling machine (4).jpg

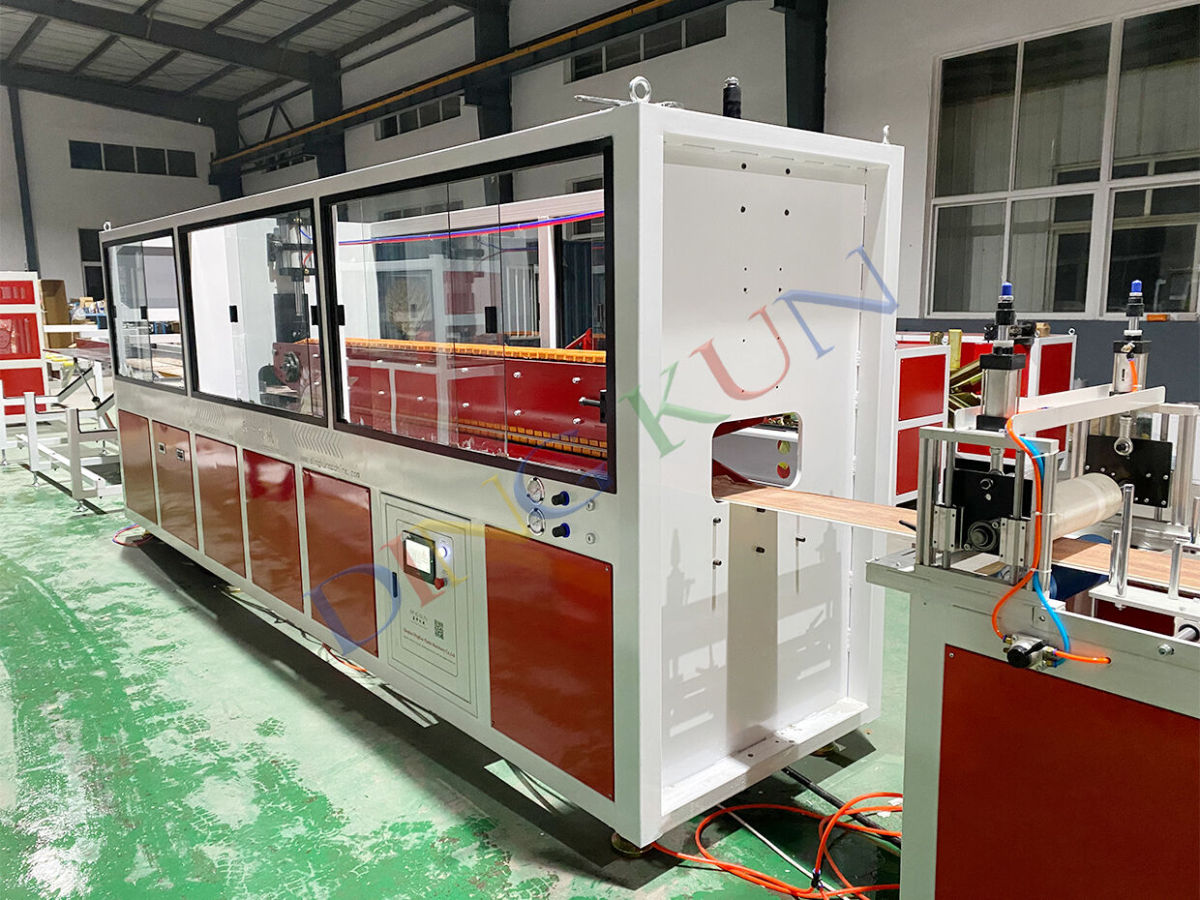

pvc ceiling machine (5).jpg

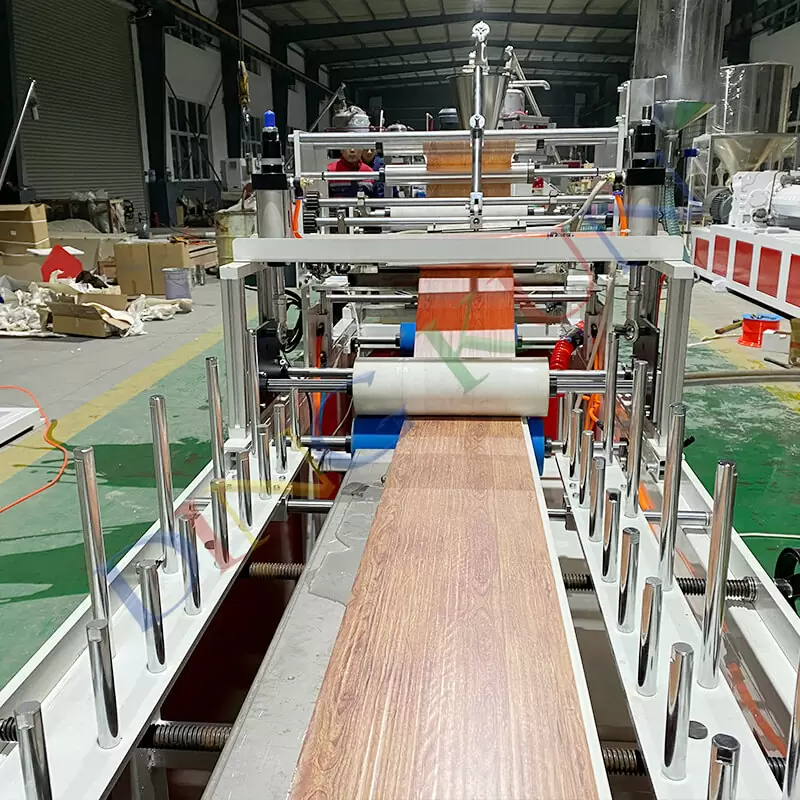

Online Hot Stamping & Lamination Machine

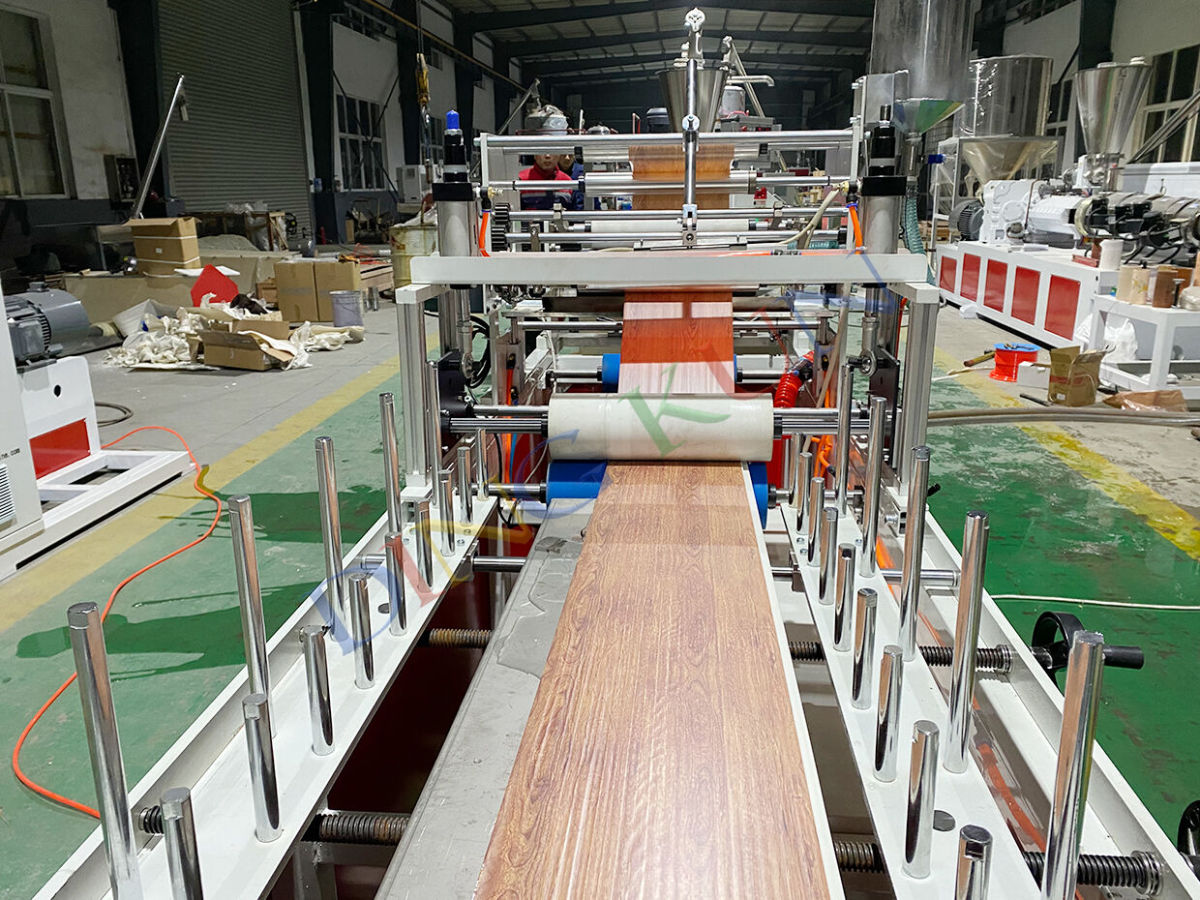

pvc ceiling machine (6).jpg
