High Speed PVC Marble Sheet Machine
High Speed PVC Artificial Marble Sheet / Wall Panel / Interior Decoration Board Production Line is used to make PVC imitation marble sheet whichhave marble, carpet, stones, natural scenery, stereo design on the surface. And the board is popular in the hospital, school, office buildings, shopping malls,supermarkets, transportation and other public places.
Message

High Spped PVC Imitation Marble Sheet / Plate Machine


Produce Process :

500/1000Mixer → Auto loader → SJSZ92/188 conical twin screw extruder → Mould → Three roller calender machine → bracket rollers → Haul off machine →  Transversal cutter → trimming cutter →  Conveyor →  UV glossy oil coating.


High Speed PVC Marble Sheet Machine Details

PVC raw materials Loading and Mixing system
1. Auto Material Feeding Unit1 set
2. Hot and cooling mixer1 set
PVC marble sheet Extrusion Line
1. Auto Material Feeding unit 1 set
2. SJZ92/188 Conical double screw Extruder1 set
3. T die1 set
4. Three-roller Calendar with Marble film unit1 set
5. Temperature controller of three rollers1 set
6. Cooling frame with side cutting1 set
7. Haul off unit1 set
8. Cutting unit1 set
9. Auto Mechanical Arm Stacker1 set
Sheet/Plate Recycling machines
1. Sheet Crusher/Grinder1 set
2. PVC Pulverizer/Miller1 set
3.  UV coating line

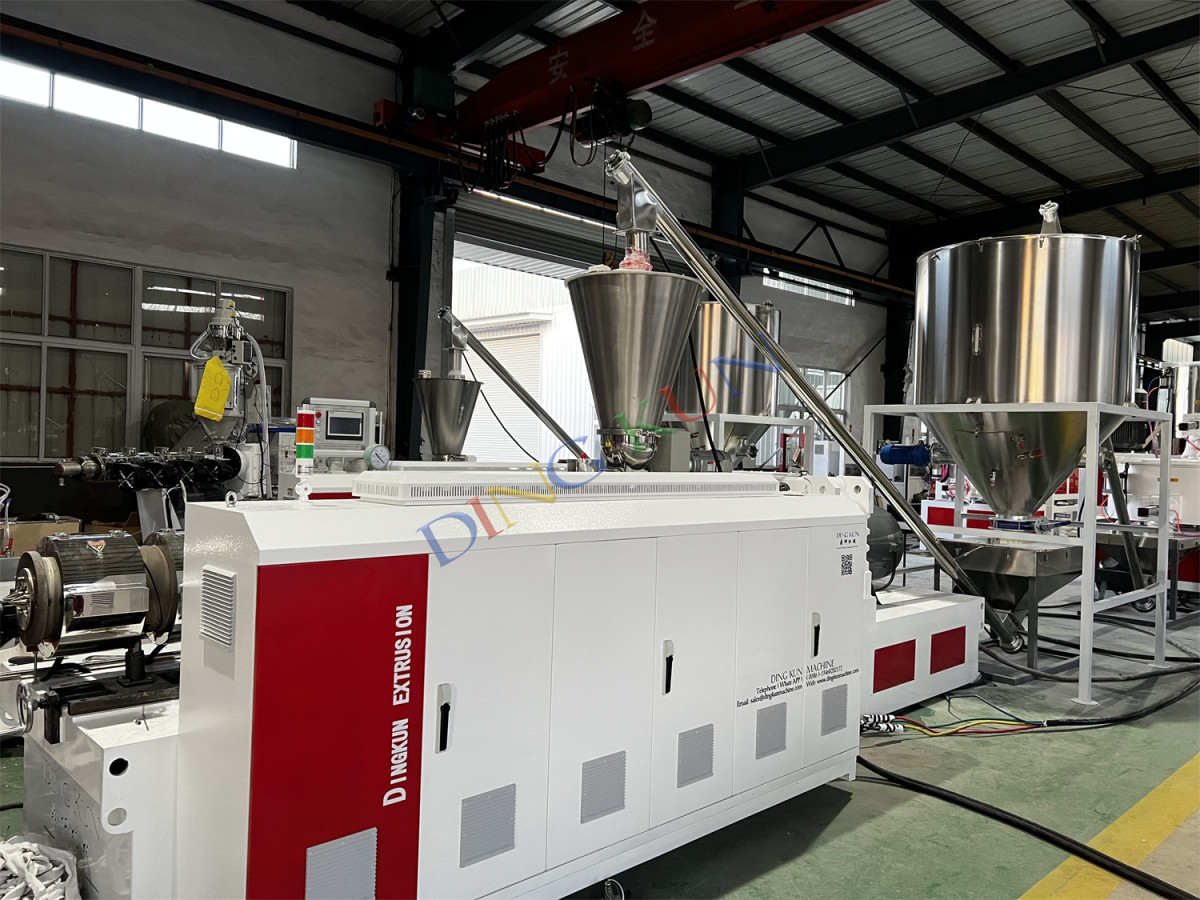

SJSZ Conical Twin Screw Extruder

Using high efficient conical twin screws, specially designed for PVC power to ensure uniformed plasticization, high extrusion. Stable temperature controlling system can guarantee high quality pipe extrusion.

pvc marble sheet  (1).jpg

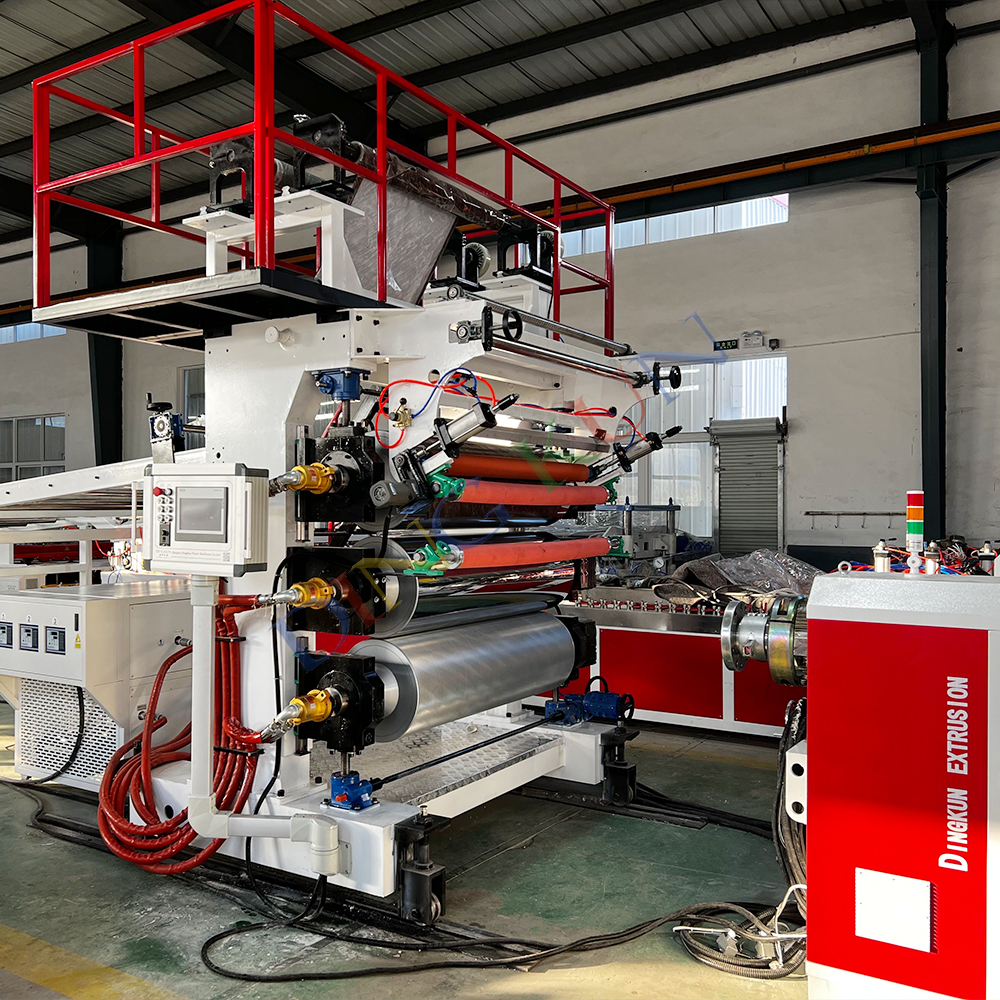

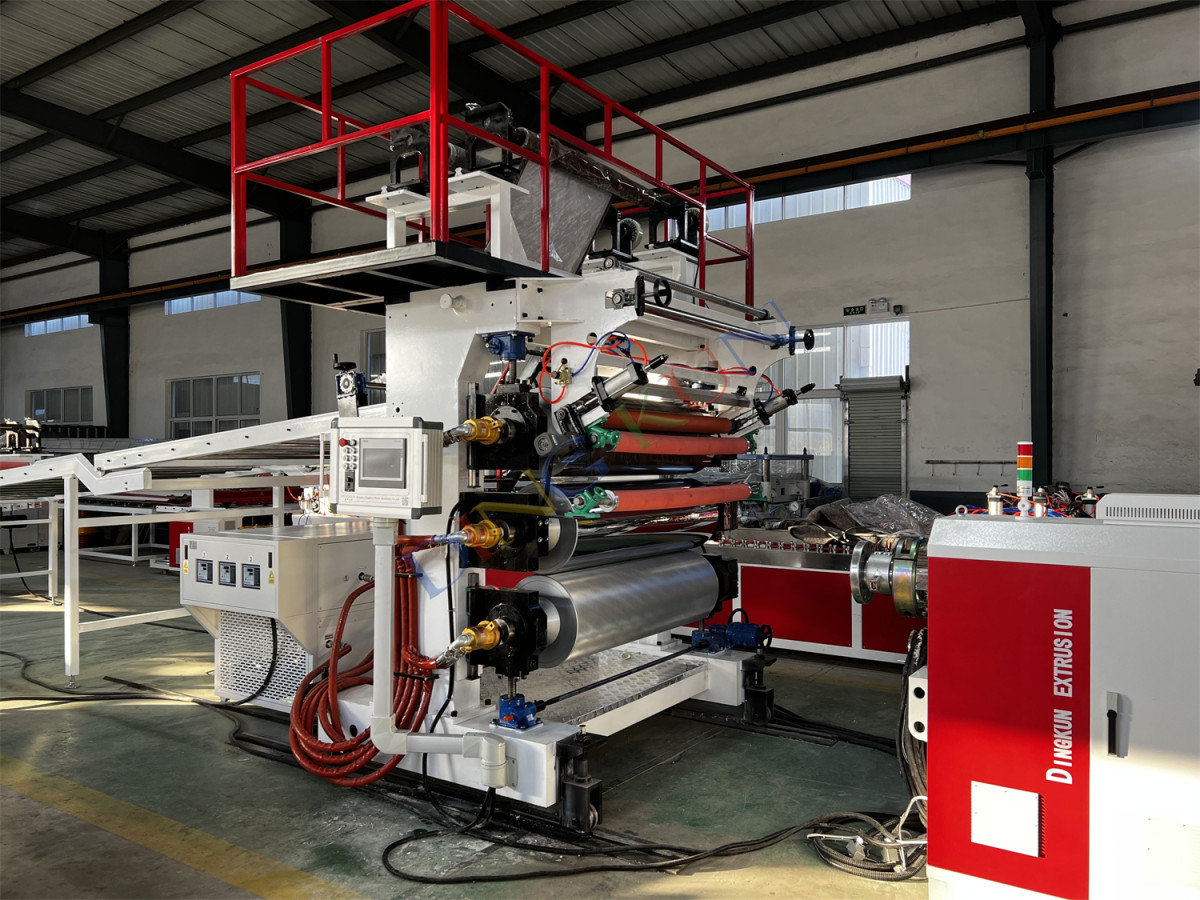

Three-roller calendar & Film laminating

pvc marble sheet  (5).jpg

Cooling frame with trimming device
Length of cooling frame: 6000mm
Cooling roller material: Stainless steel
Cooling roller length: 1350mm

pvc marble sheet machine (3).jpg

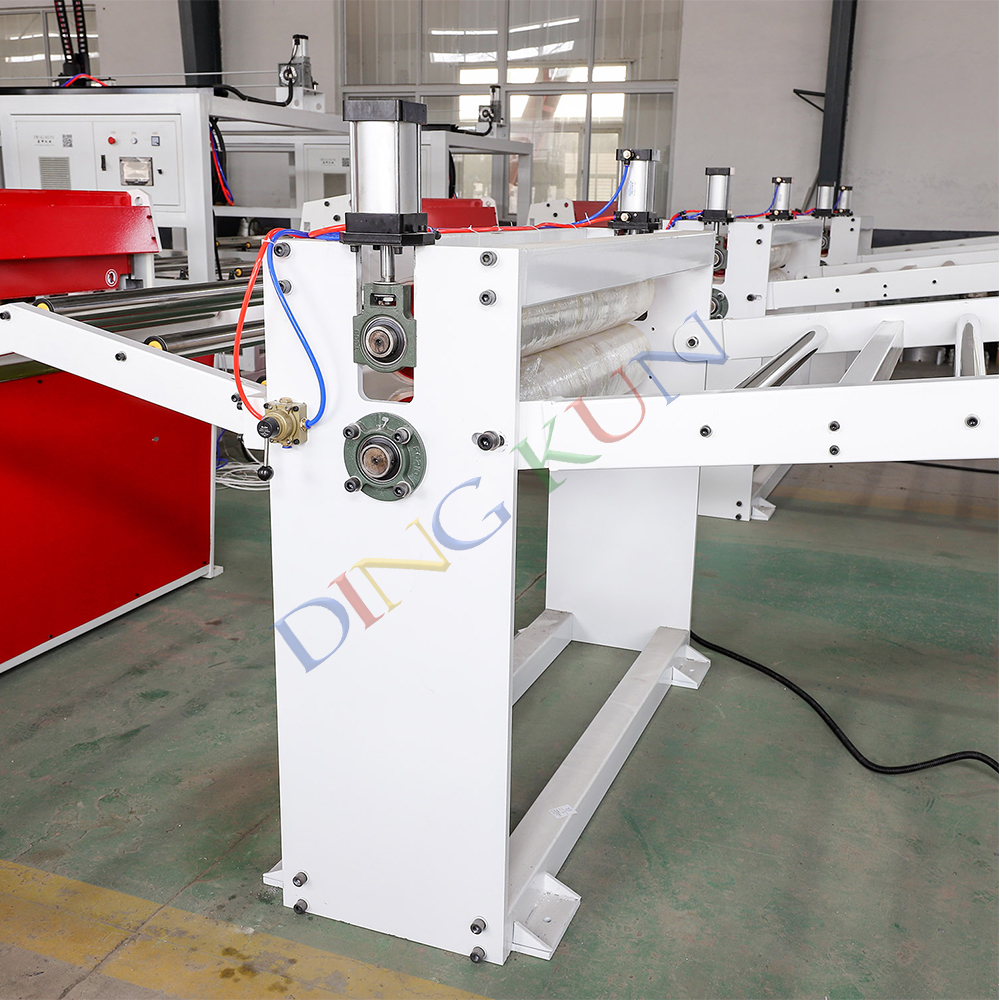

Two-Roller Haul off Machine

pvc marble sheet machine (4).jpg

pvc marble sheet machine (5).jpg

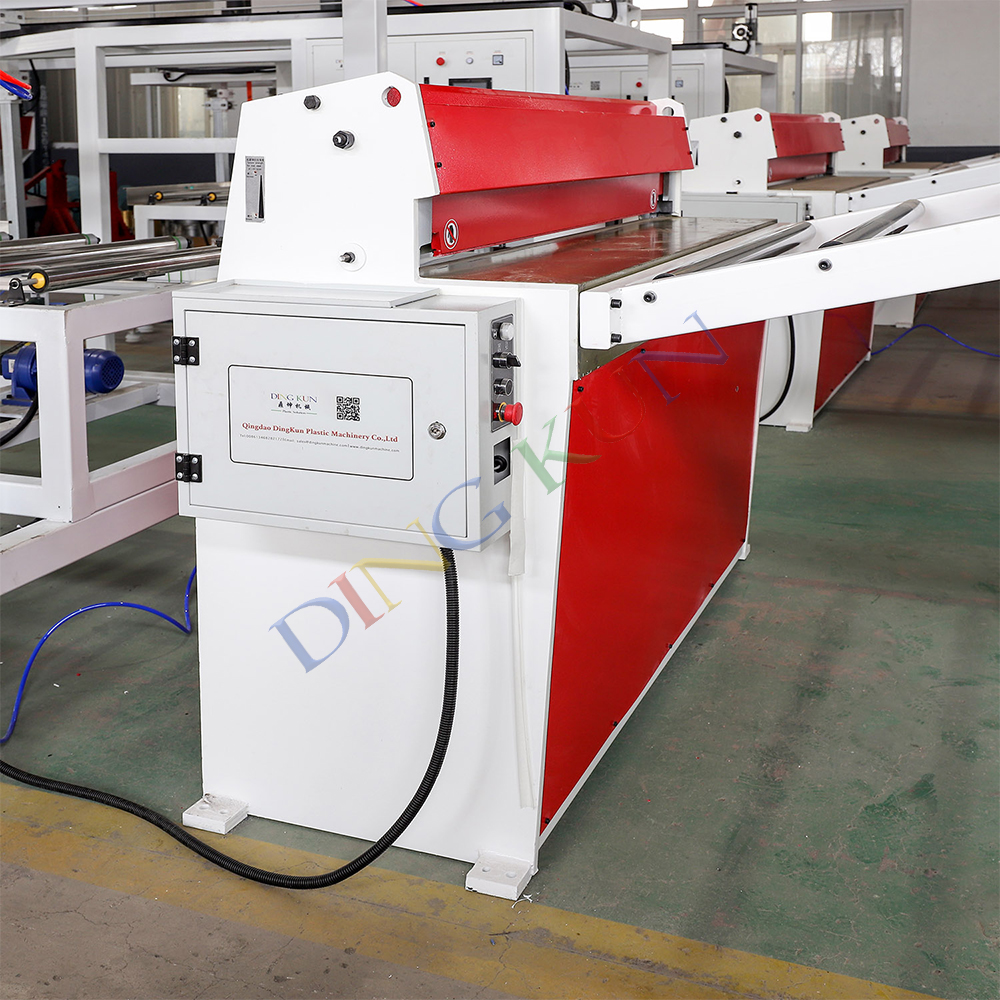

Cutter Machine

pvc marble sheet machine (6).jpg

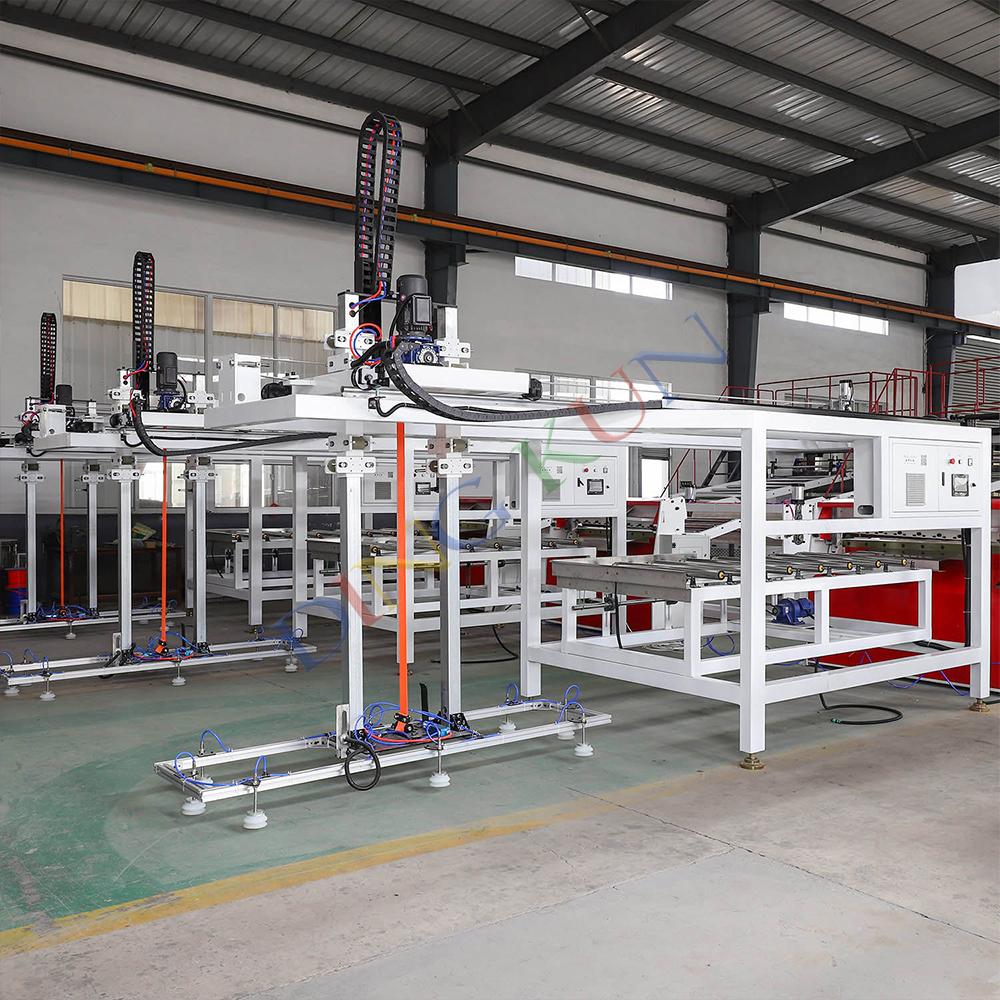

Auto Mechanical Arm Stacker

pvc marble sheet machine (7).jpg

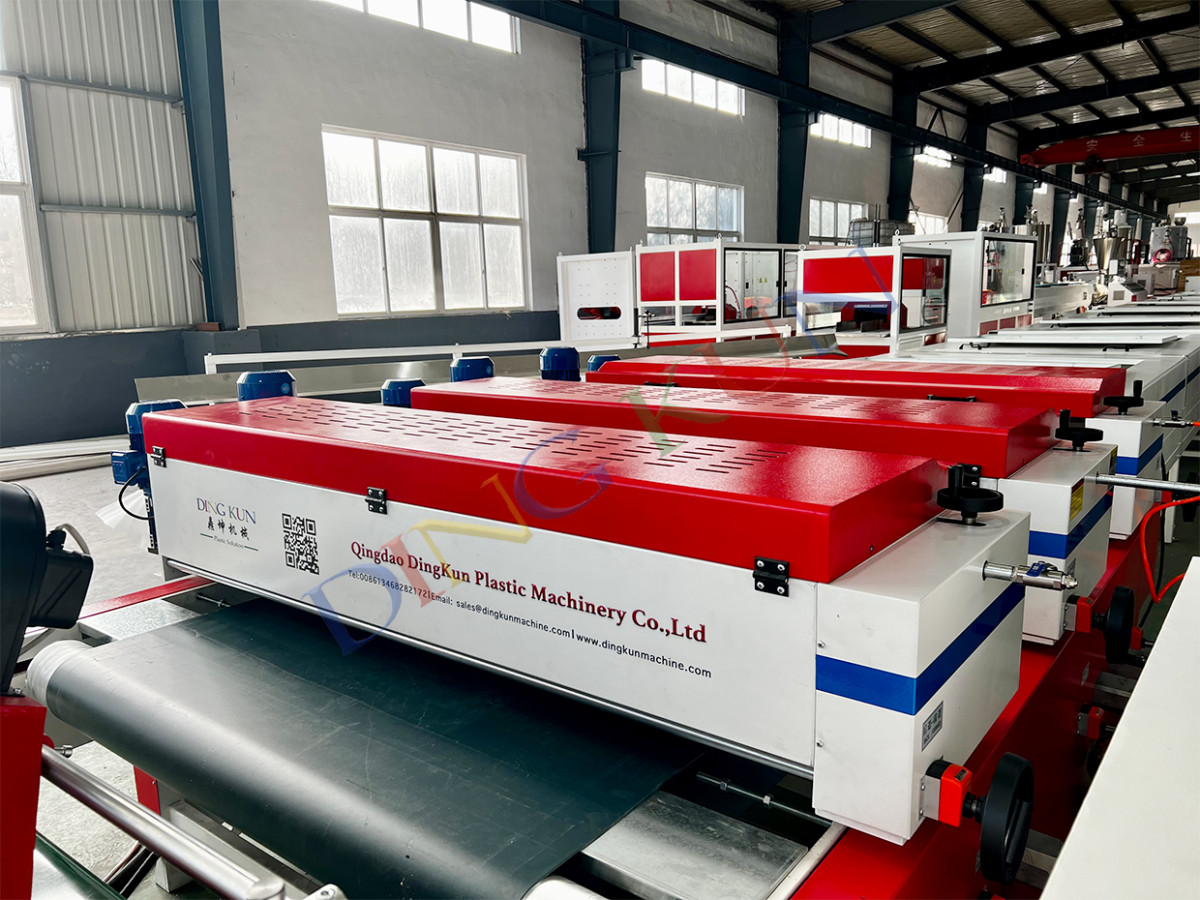

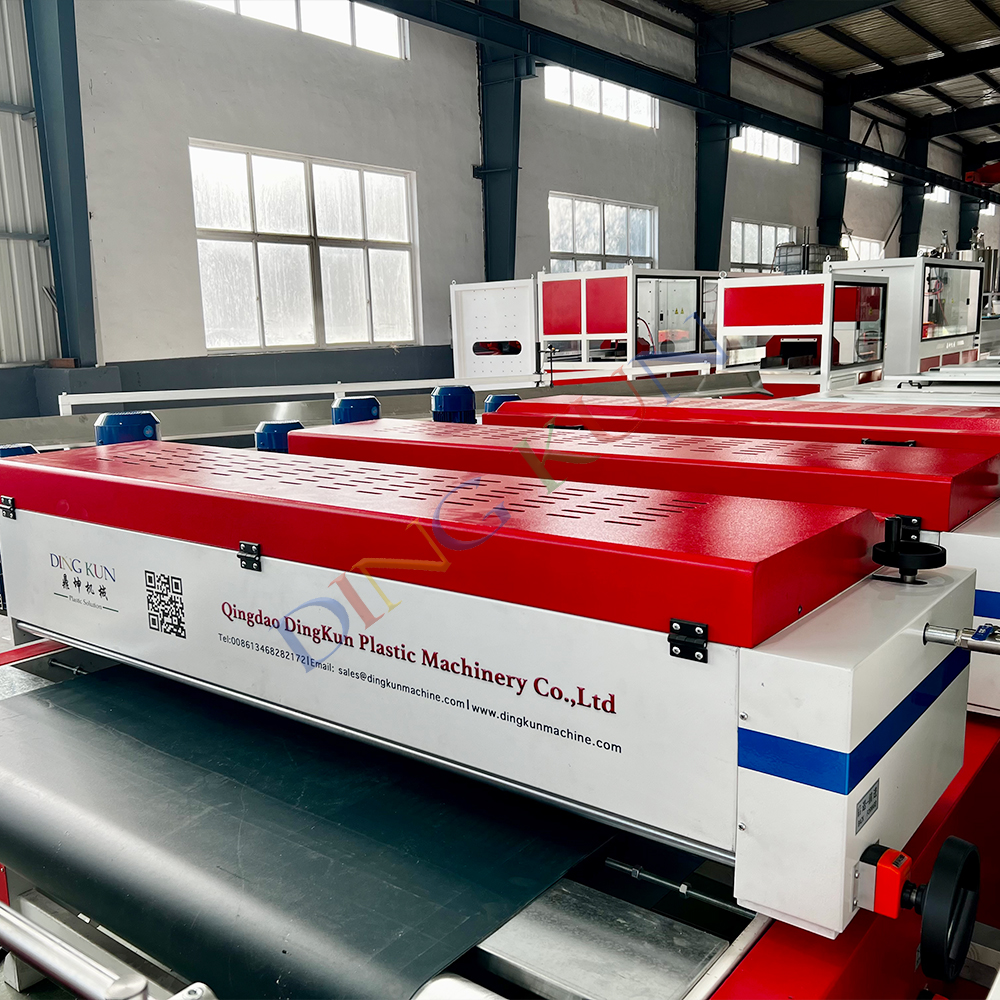

UV Coating Line for PVC Marble Sheet Machine / PVC Marble Wall Panel Making Machine / Production Line

UV COATING LINE.jpg
