WPC PVC Foam Board Machine
QINGDAO DINGKUN PLASTIC MACHINERY CO.,LTD specialize in manufacturing pvc wpc foam board machine. 16 years of professional experiences in research and development. We have been advanced to the latest generation in 2015 and greatly improved the performance and output. Welcome to our company to visit our machines.
Message

PVC / WPC Foam Board Machine

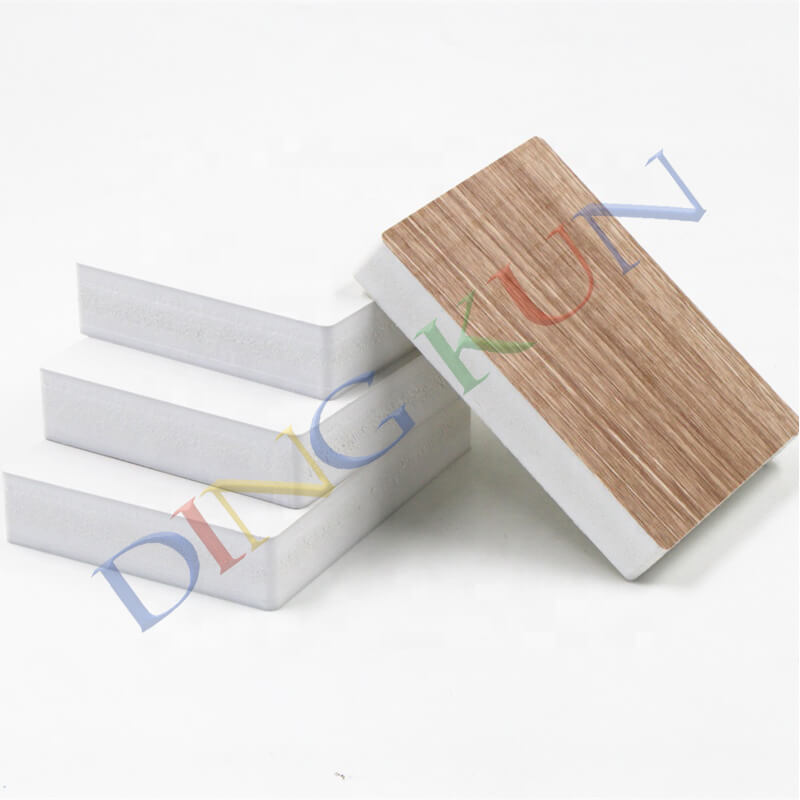

PVC WPC Foam Board machine is applied to produce PVC foam board with width 1220mm to 1830mm, thickness 3mm to 40mm, and with very rigid surface, surface hardness can reach 55-80HRC, which are mostly used for advertising, cabinet, furniture board, consution template and so on. It is widely used for building templates, industrial packing, furniture cabinet, outdoor landscapes material and indoor decoration and so on.


Produce Process

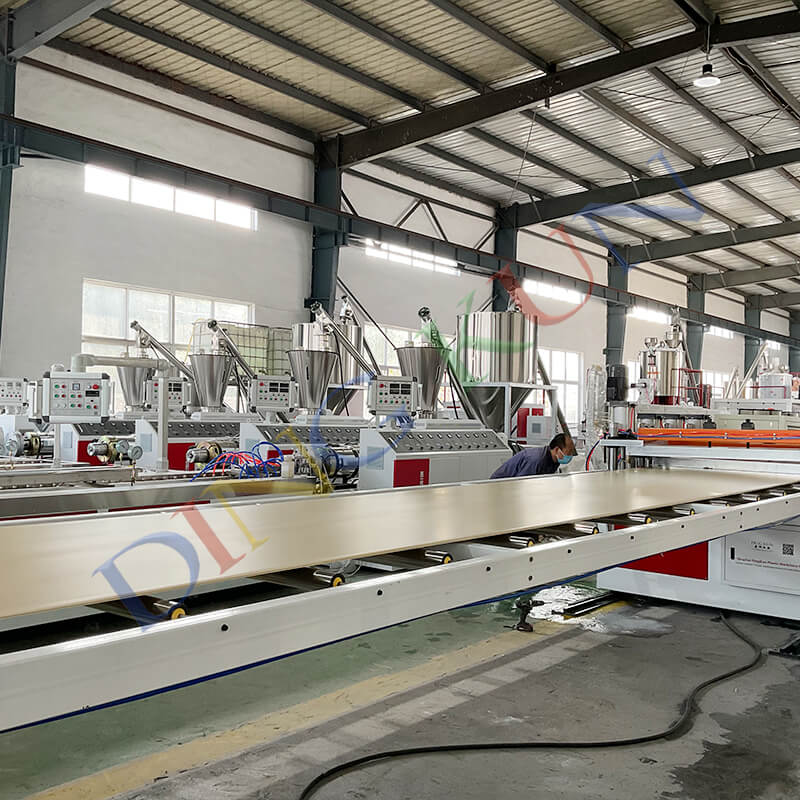

PVC powder +additive → mixer →SJSZ series extruder →Coat-hanger type mould →Vacuum calibration cooling platform →cooling rollers and edge-cutting device →Haul off →stacker

Technical information

Description

Parameter

Feed material

PVC+ assistant materials(also can add wood powder)

Product size

1220*2440*5-20mm

Production line speed

0.8-1.5m/min

Max. output

350-500kg/h

Outline size

25×2.5×3 L×W×H(m),unsaturated

Weight

16T

Total power

255kw

Actual energy consumption power

210kw

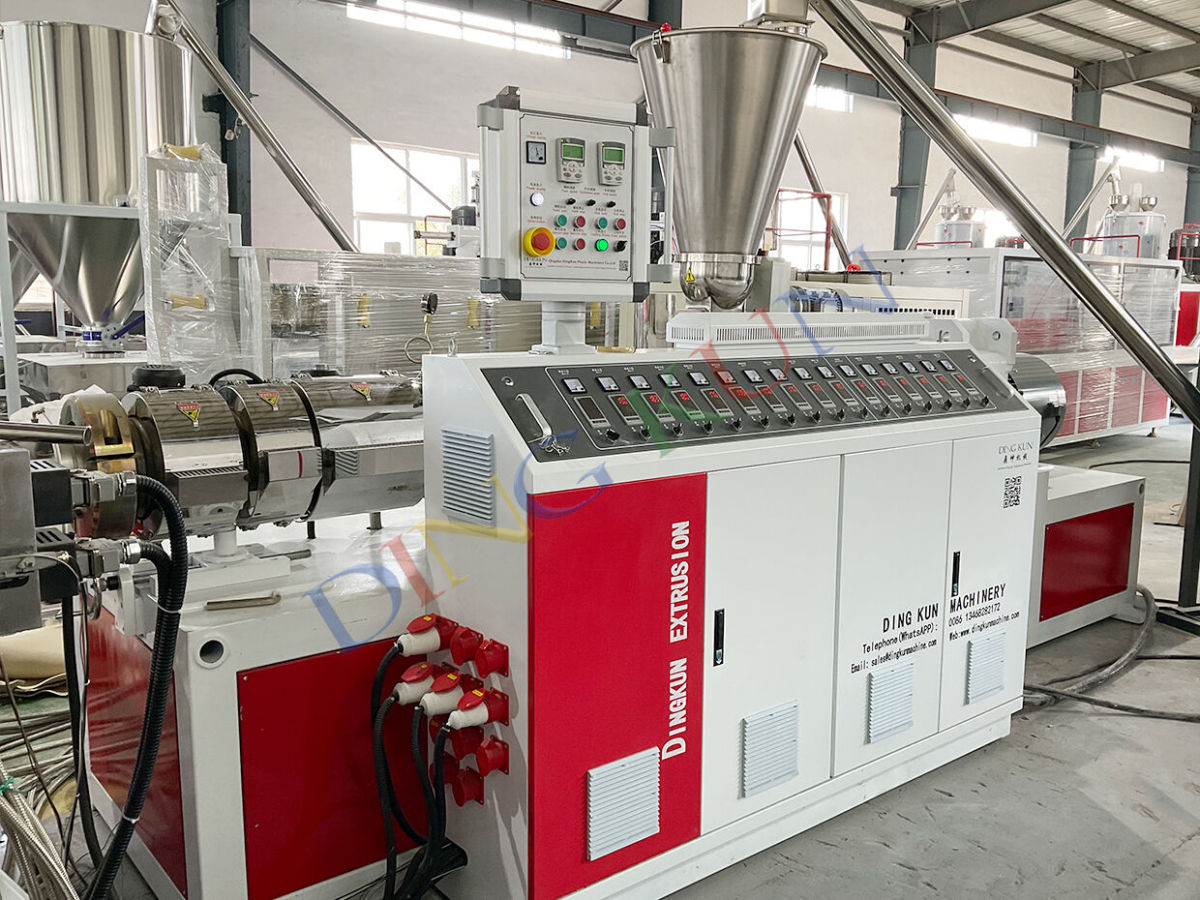

SJSZ Conical Twin Screw Extruder

Using high efficient conical twin screws, specially designed for PVC power to ensure uniformed plasticization, high extrusion. Stable temperature controlling system can guarantee high quality pipe extrusion.

pvc foam board machine (1).jpg

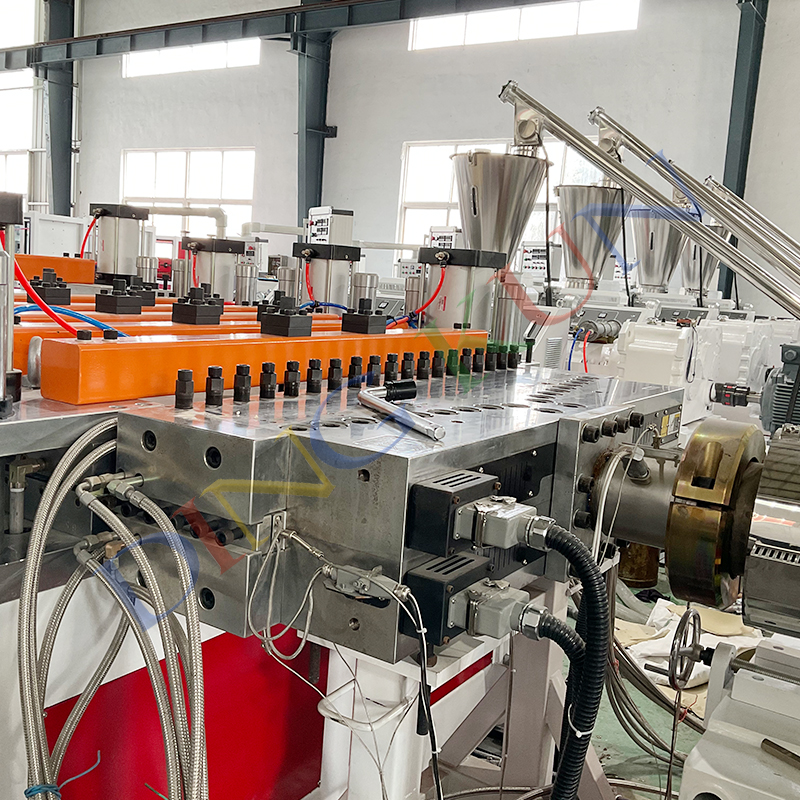

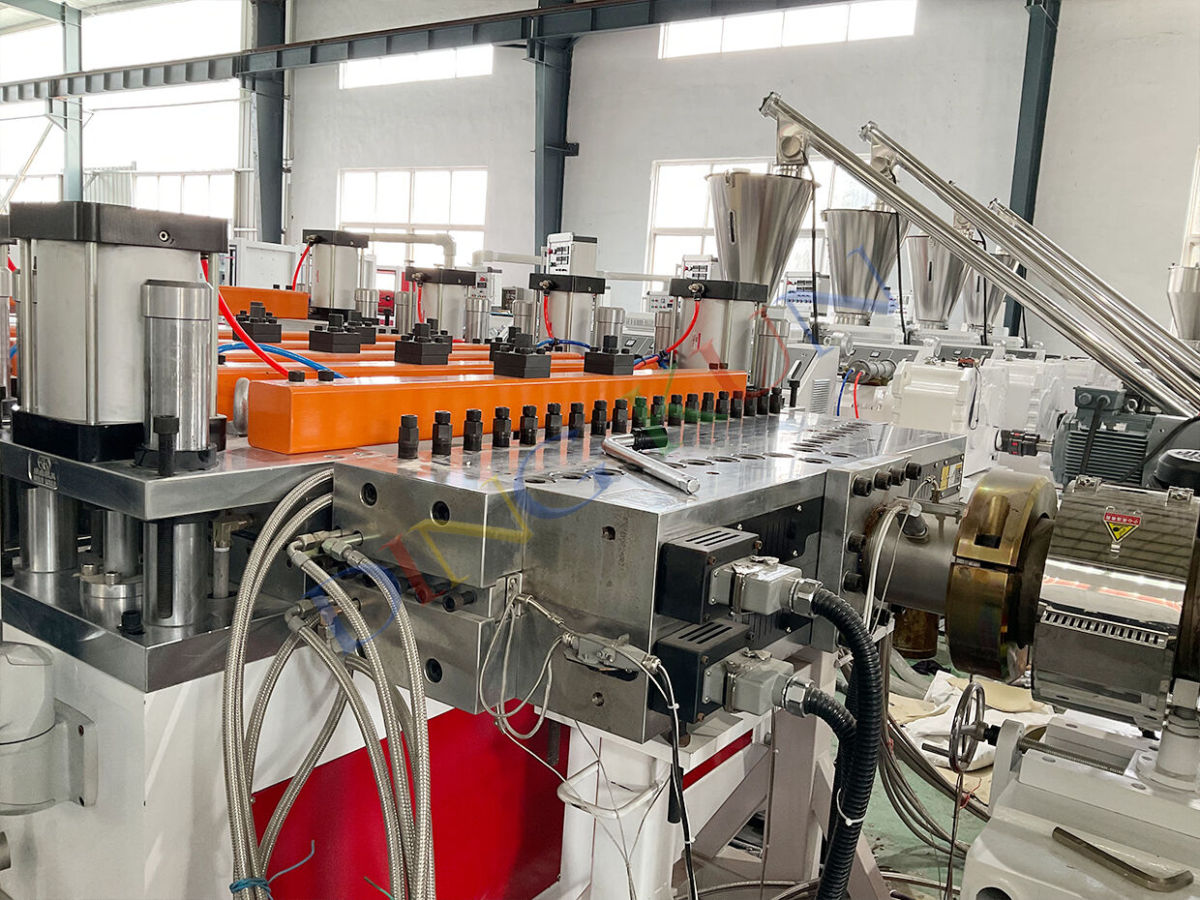

Mould
Size :1320mm 1350mm 1100mm 1000mm ; Finished size :1220mm  ;Thcikness :3-25mm, 3-30mm,3-40mm

pvc foam board machine (2).jpg

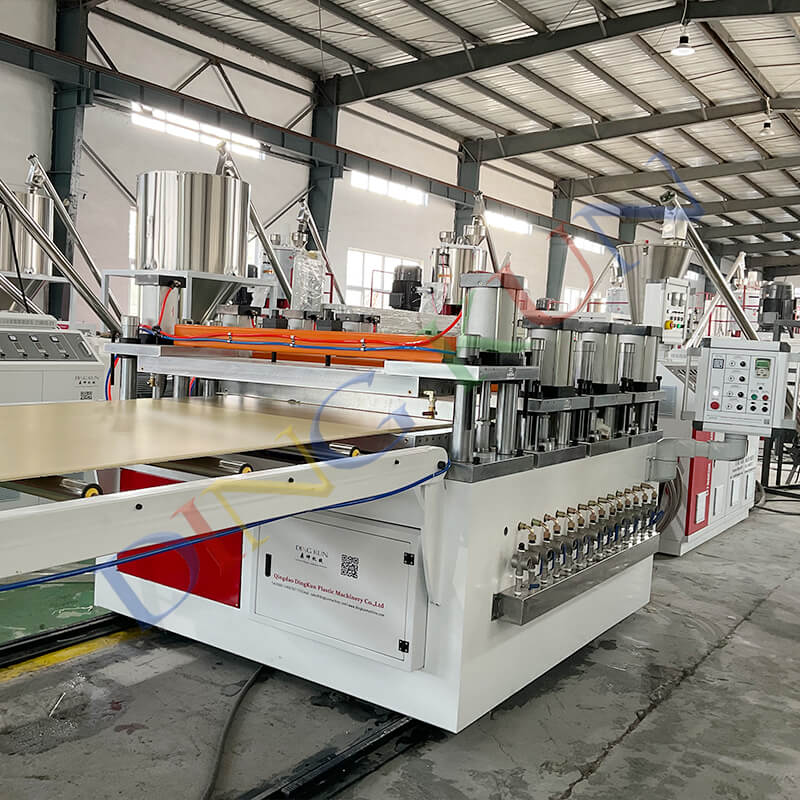

Vacuum Calibration platform
Max. calibrating width: 1450mm ; Calibrating table length:2000mm; Vacuum pump power:5.5kw*2 units ;
Max. exhausting volume:80m3/min ; Water pump power:4kw

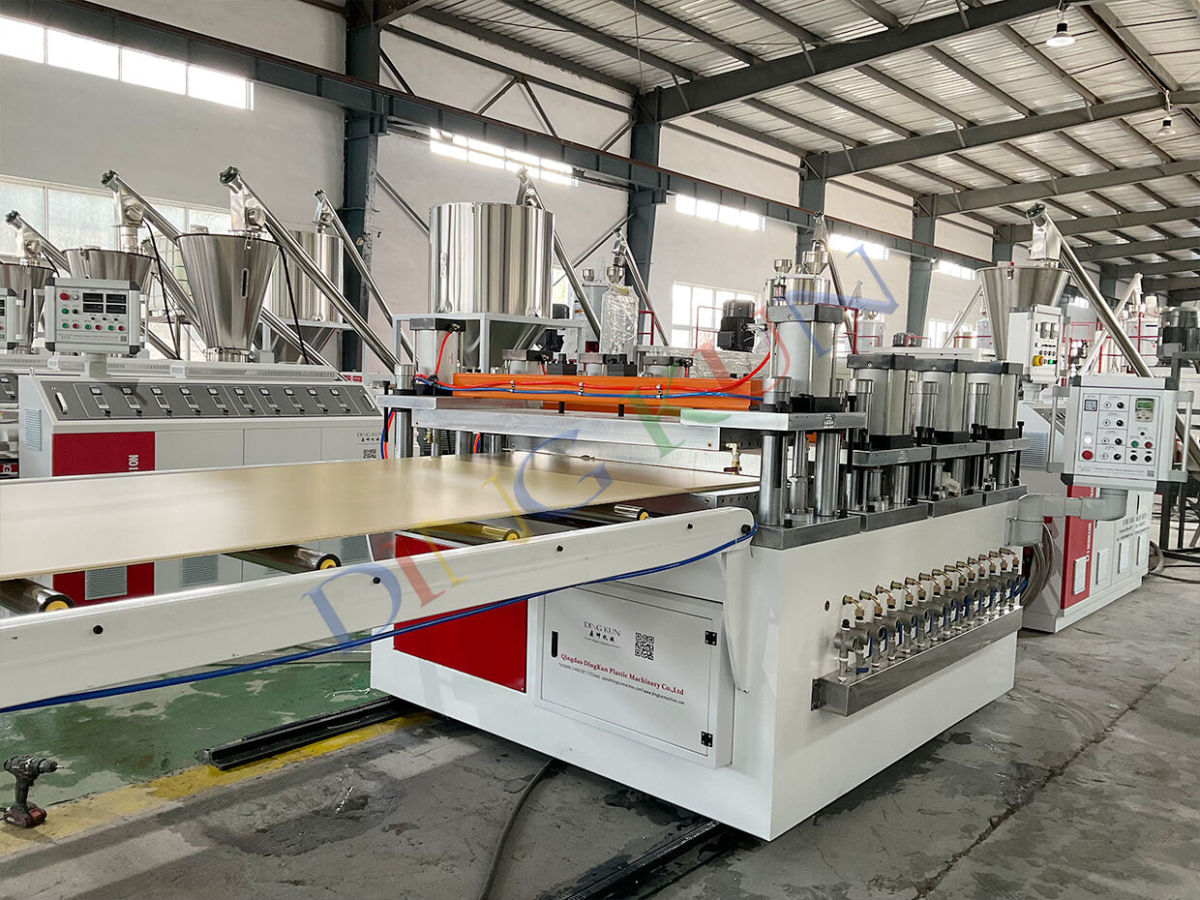

pvc foam board machine (3).jpg

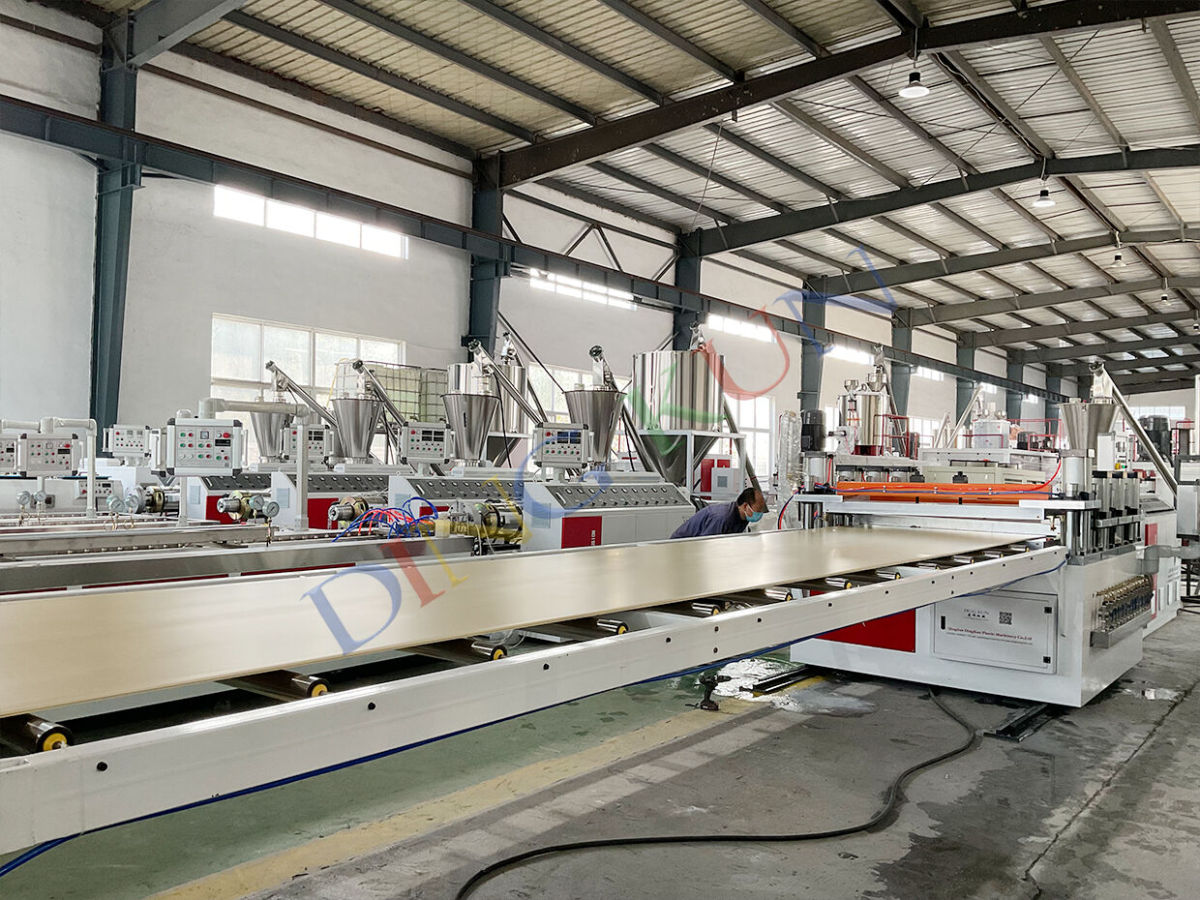

pvc foam board machine (4).jpg

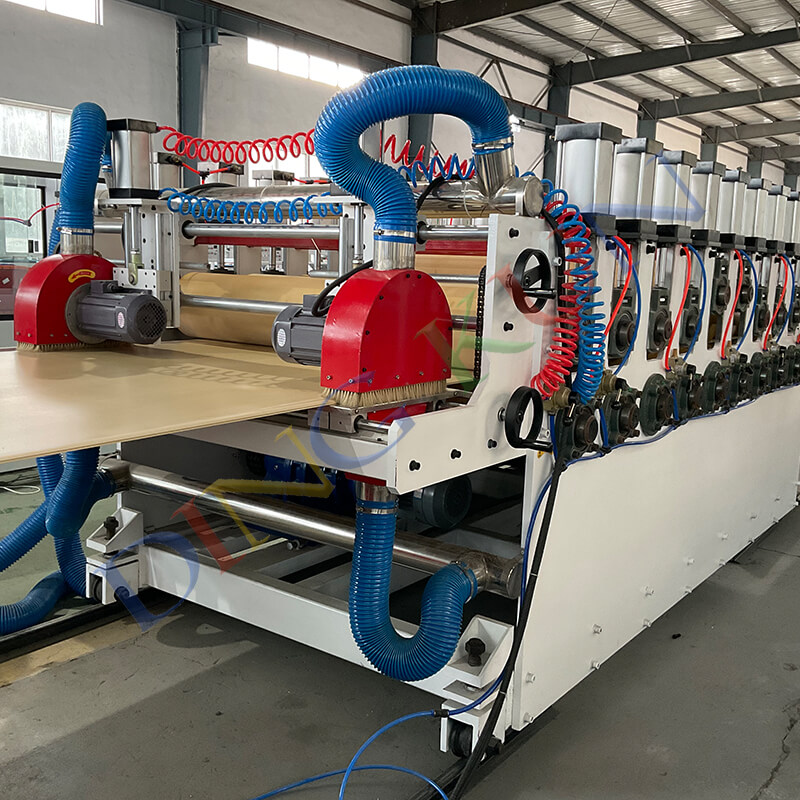

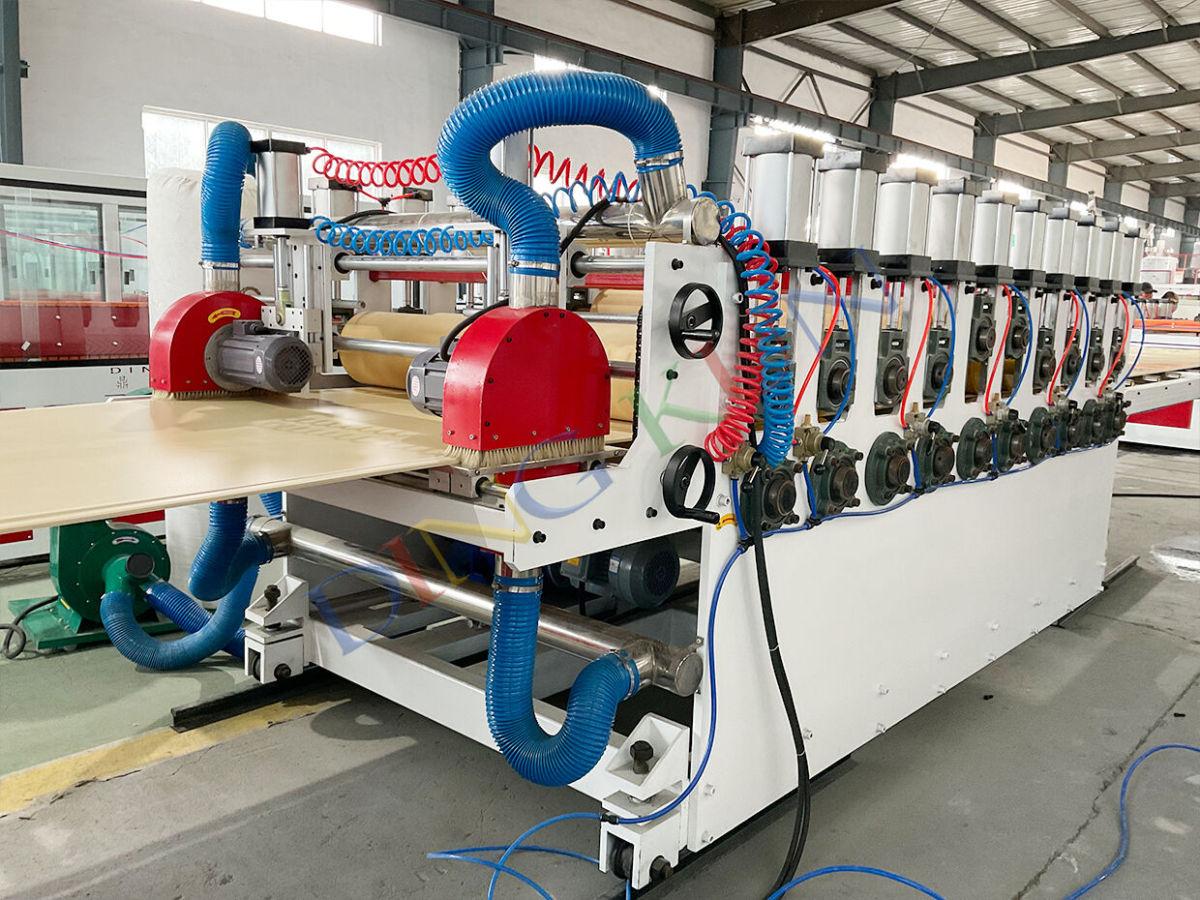

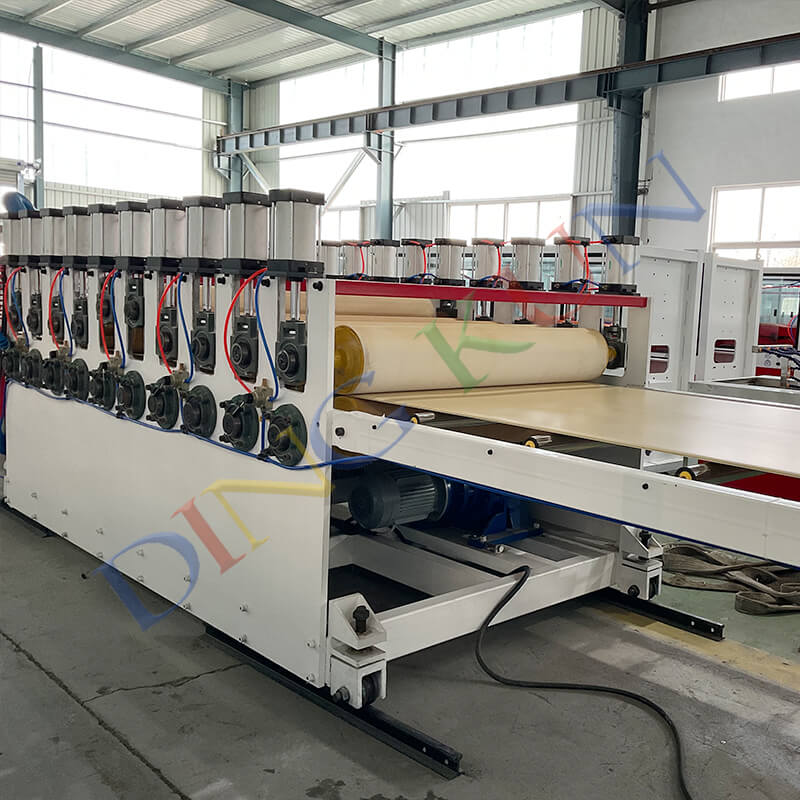

Eight Pairs Rubber Rollers Traction Machine With Trimming Unit And Dust Collector
Max. pulling width:1450mm  ; Max pulling thickness:20mm
Pair roller qty: 8 pairs  ; Driven motor power:5.5kw

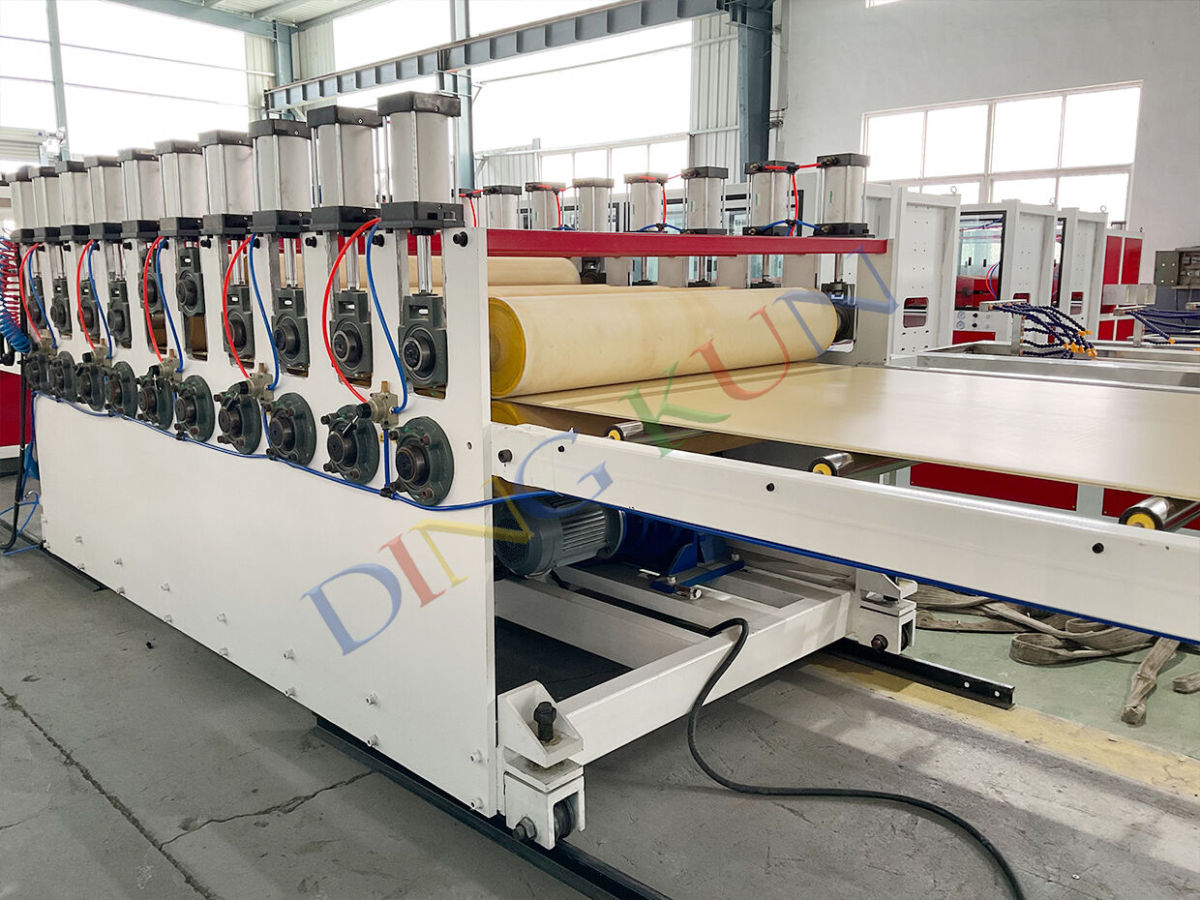

pvc foam board machine (5).jpg


pvc foam board machine (6).jpg

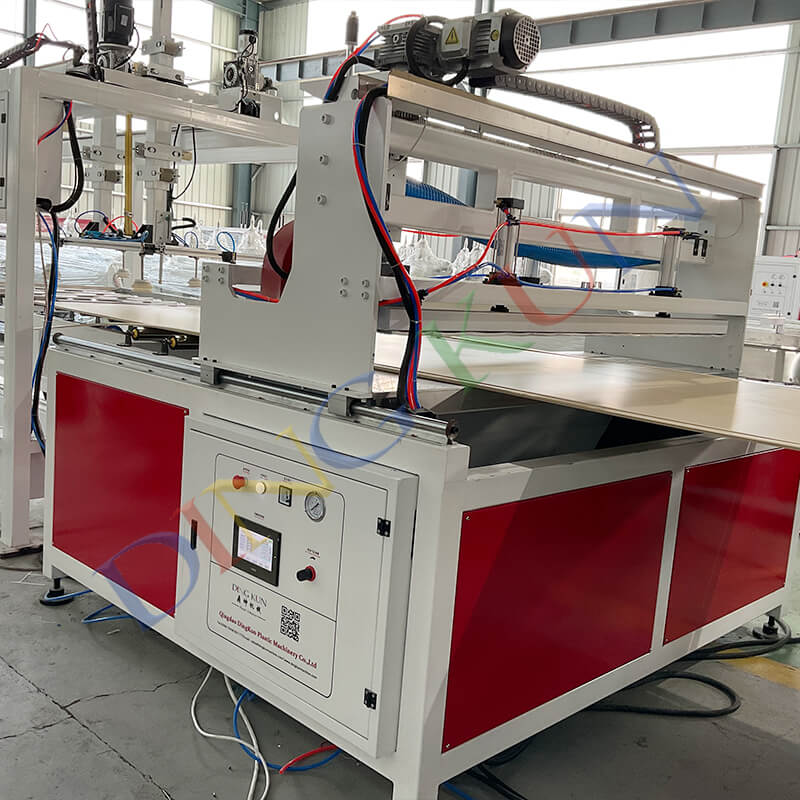

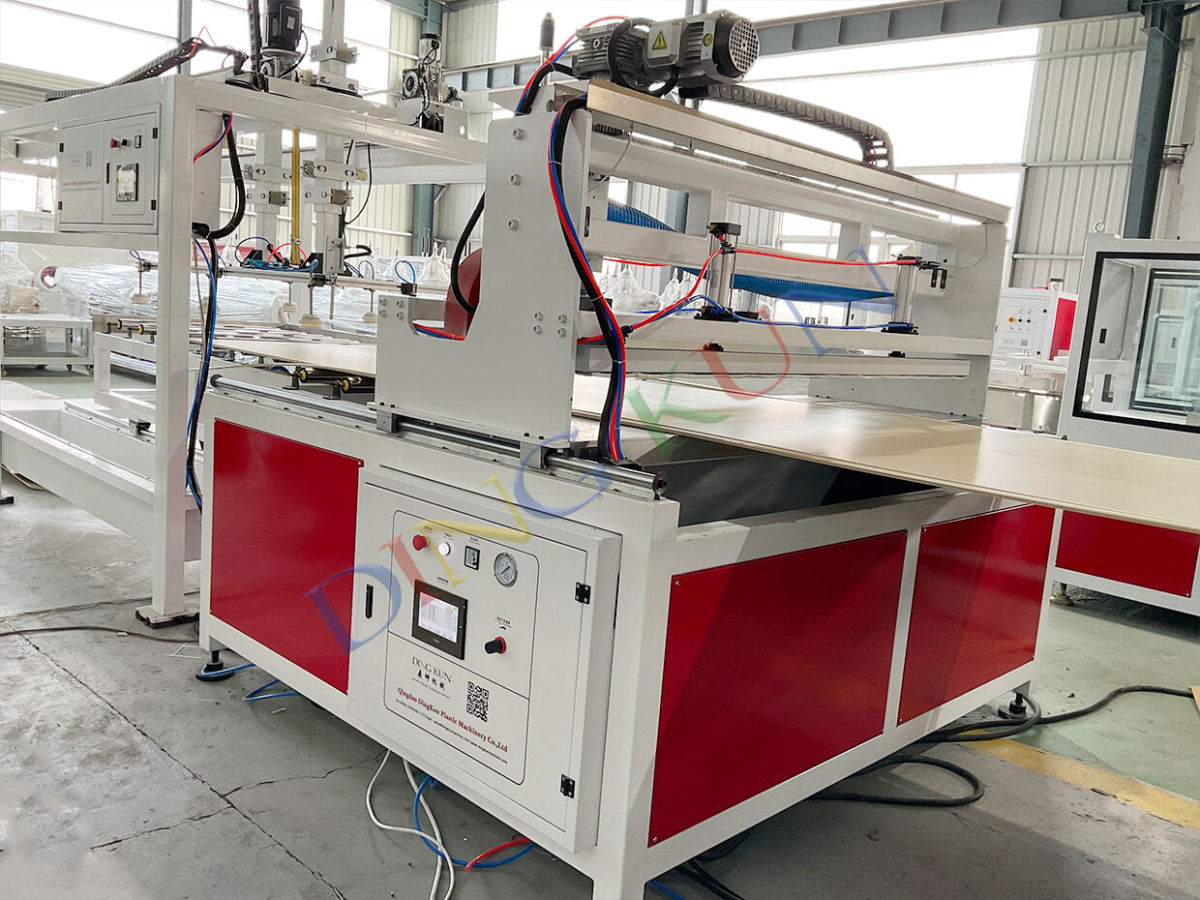

Cutter Unit
Rack type synchronize pressing unit
Special design flat cutting motor: 3kW ; With non-pole cylinder left and right moving system
Cutter motor brand:Siemens  ; Cut thickness :3-40mm

pvc foam board machine (7).jpg

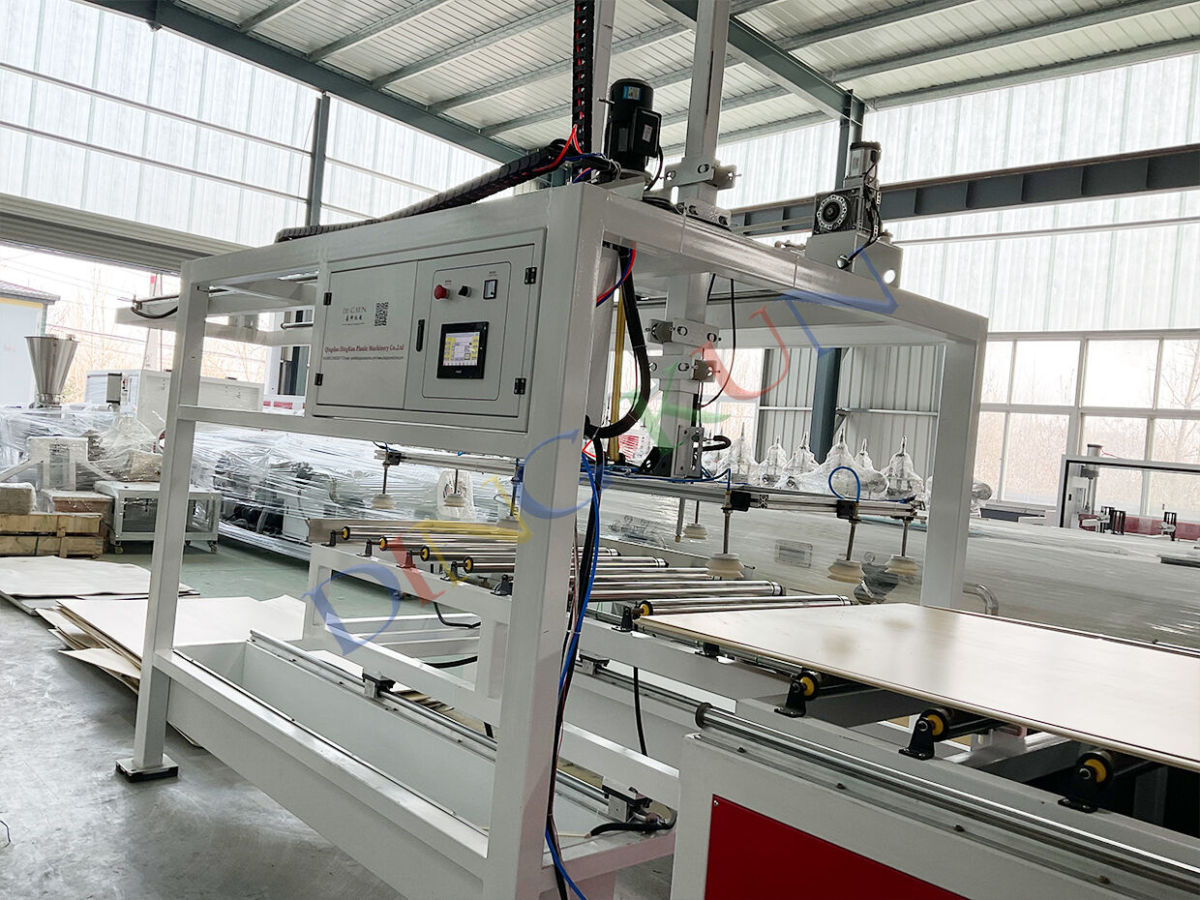

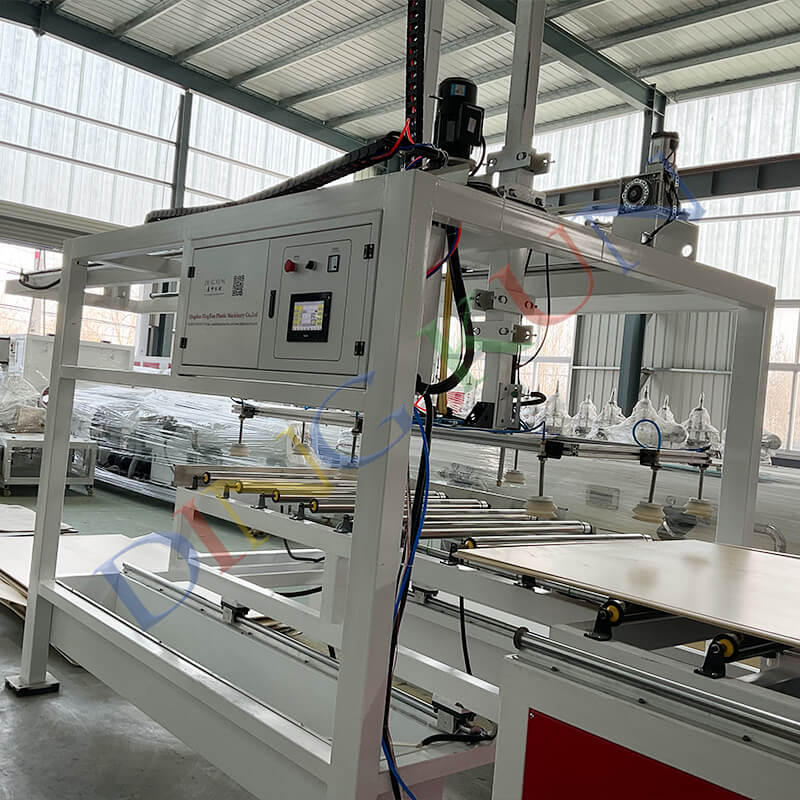

Automatic Discharge

pvc foam board machine (8).jpg
