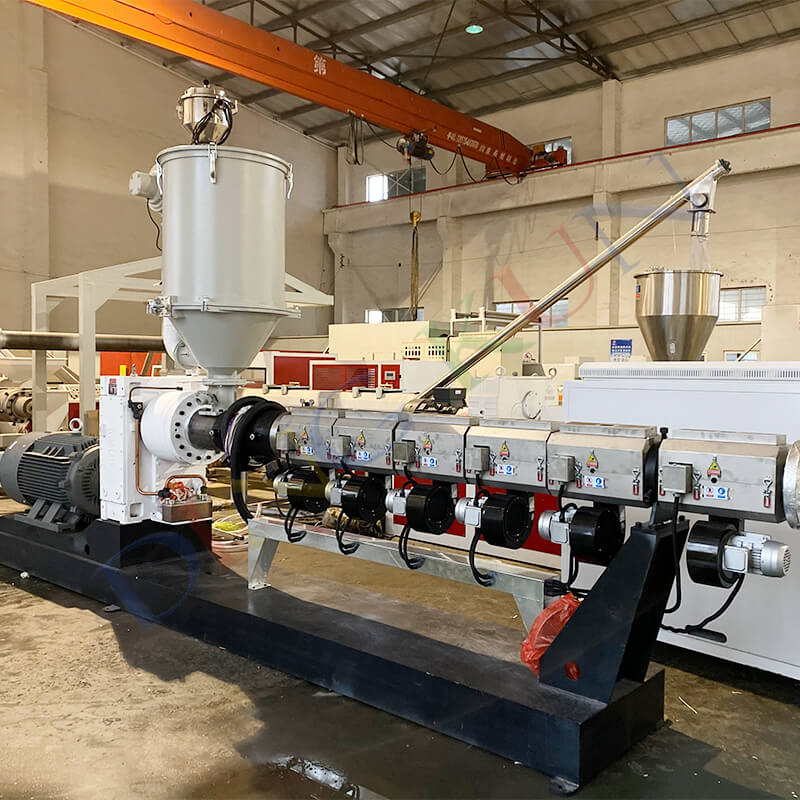

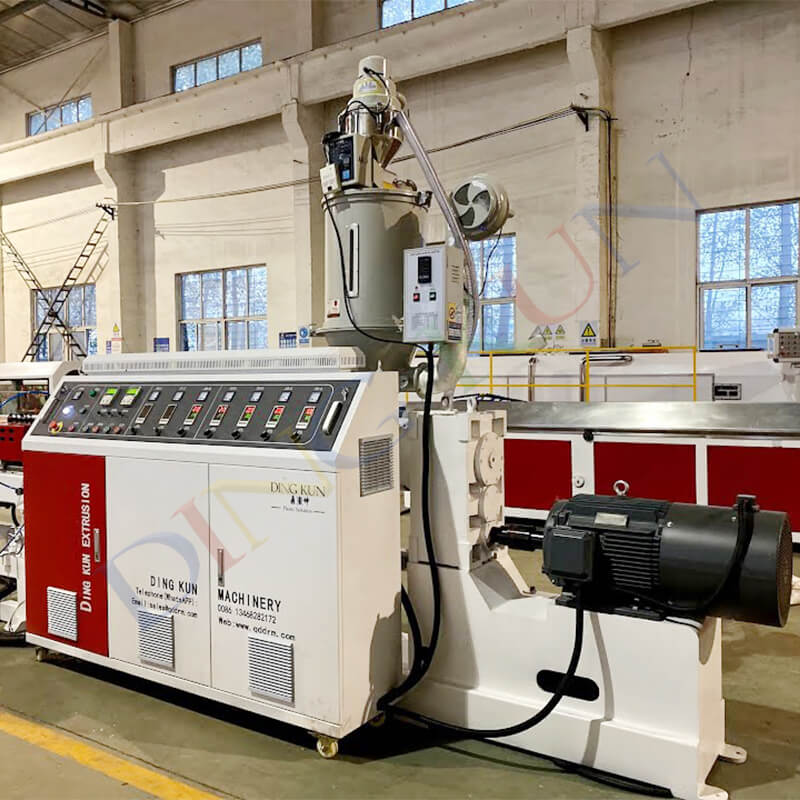

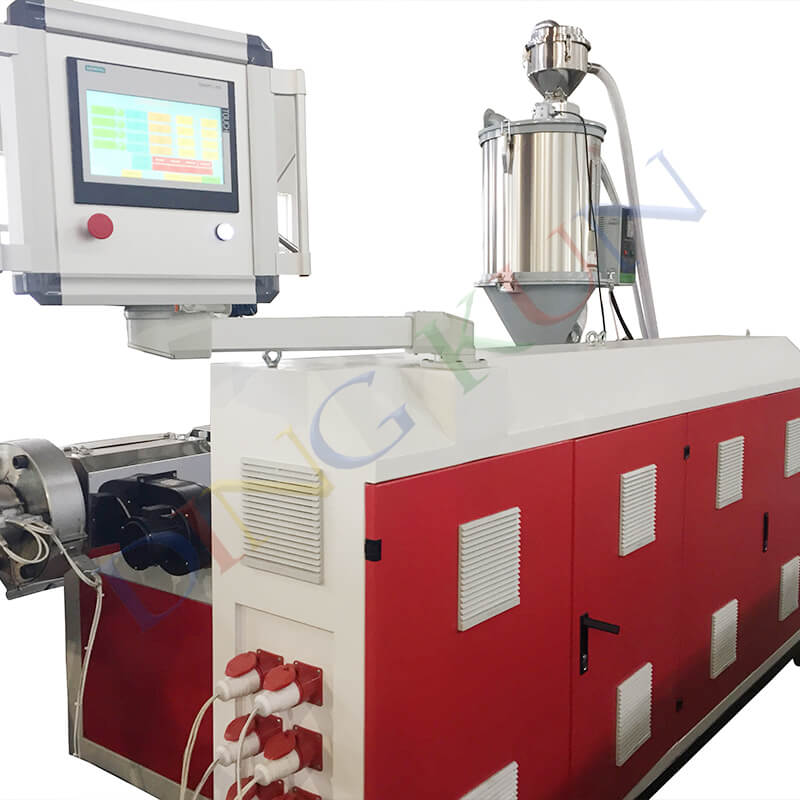

Single Screw Extruder
This new type high-efficiency single screw extruder developed by our company is mainly used in the extrusion of TEO plastic material. It is featured by advanced design, high output, good plasticization, and wide application, etc.
Message
Single Screw Extruder

Suitable for various plastic material: HDPE, PPR, PP, ABS, and PMMA, etc.

Adopt advanced human-machine interface control system to realize the automatic control of the whole line.


Excellent temperature control system to ensure the stability of the manufacturing process. Integrated design of force water cooling and force feeding groove ensures the evenness and stability of the manufacturing process.

High-performance driving system ; wearable and easy to maintain.


Technical Parameters

ModelSJ-45/33SJ-60/33SJ-75/33SJ-90/33SJ-120/33SJ-150/33
Motor power (kw)4590132185315355
Diameter of screw (mm)45607590120150
Screw L/D ratio333333333333
Screw torque (N.m)179043007160129002800040000
Maximum output (kg/h)15030045060010001200

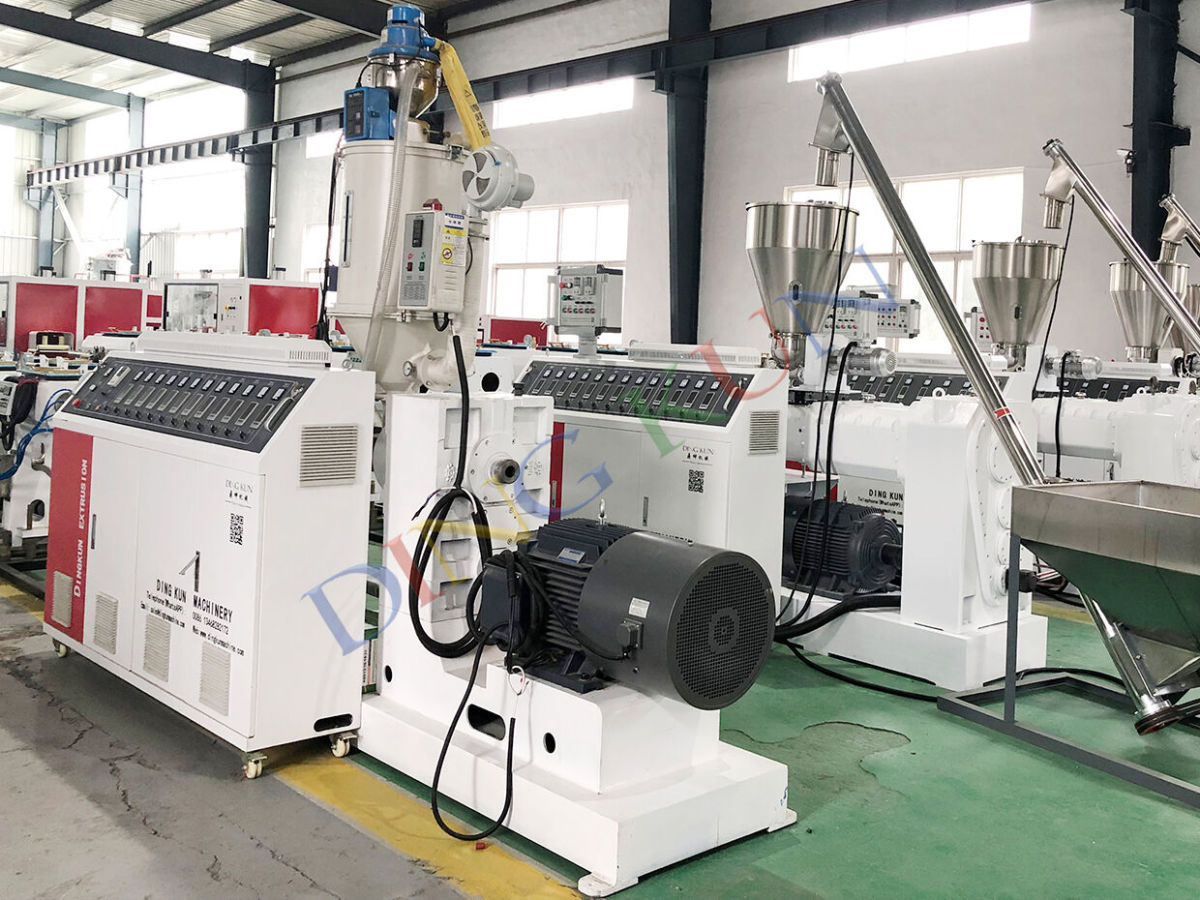

SINGLE SCREW EXTRUDER.jpg


hdpe pipe machine (1).jpg
