PVC Double Pipes Extruder Machine composes a conical two-screw extruder, different pipe die heads and the relevant auxiliary machines. It is mainly used to produce PVC twin pipes which are used as electric thread-passing pipes and so on. With excellent extruding capacity, the production line can make small diameter pipes of high quality in excellent productivity. The whole set is easy and safe to operate.
Produce Process :
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → stacker
Machine Details

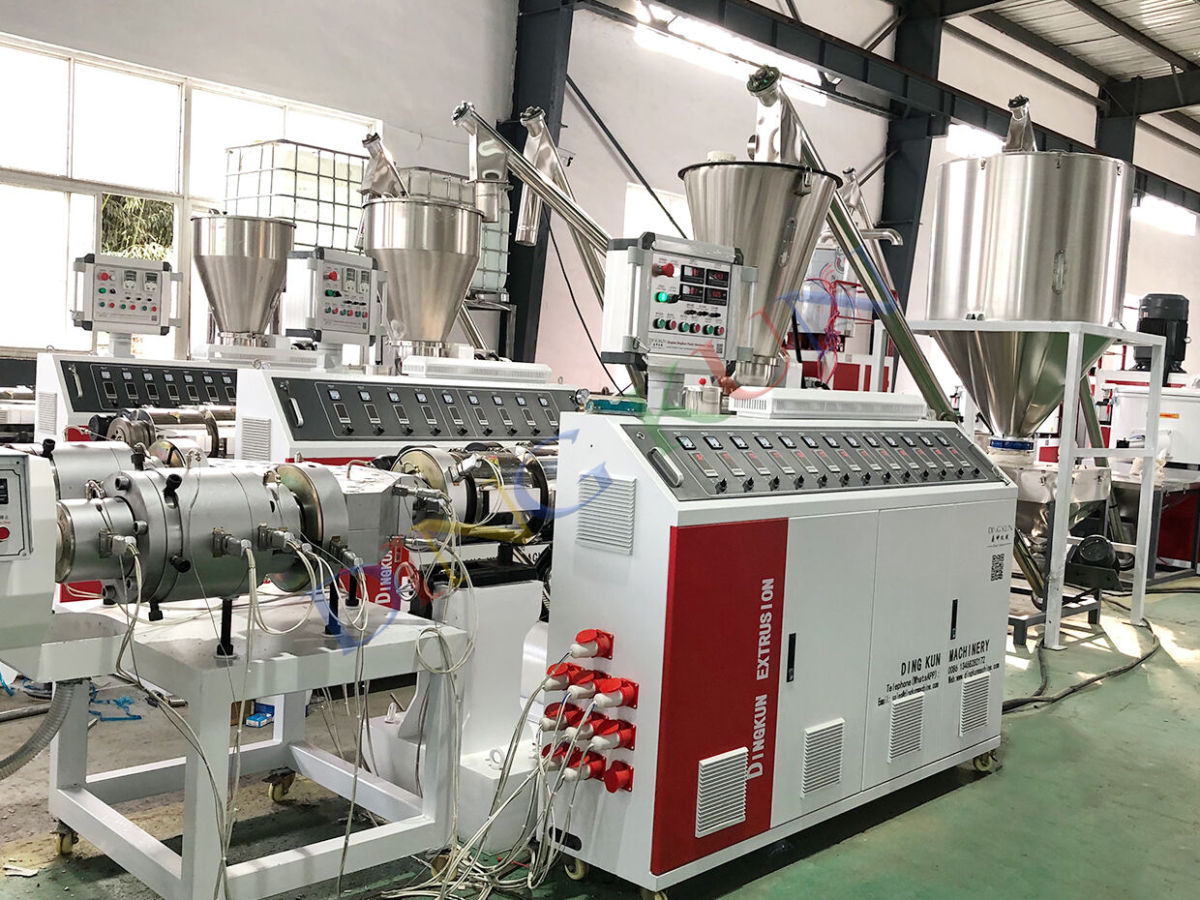

SJSZ Conical Twin Screw Extruder
Using high efficient conical twin screws, specially designed for PVC power to ensure uniformed plasticization, high extrusion. Stable temperature controlling system can guarantee high quality pipe extrusion.

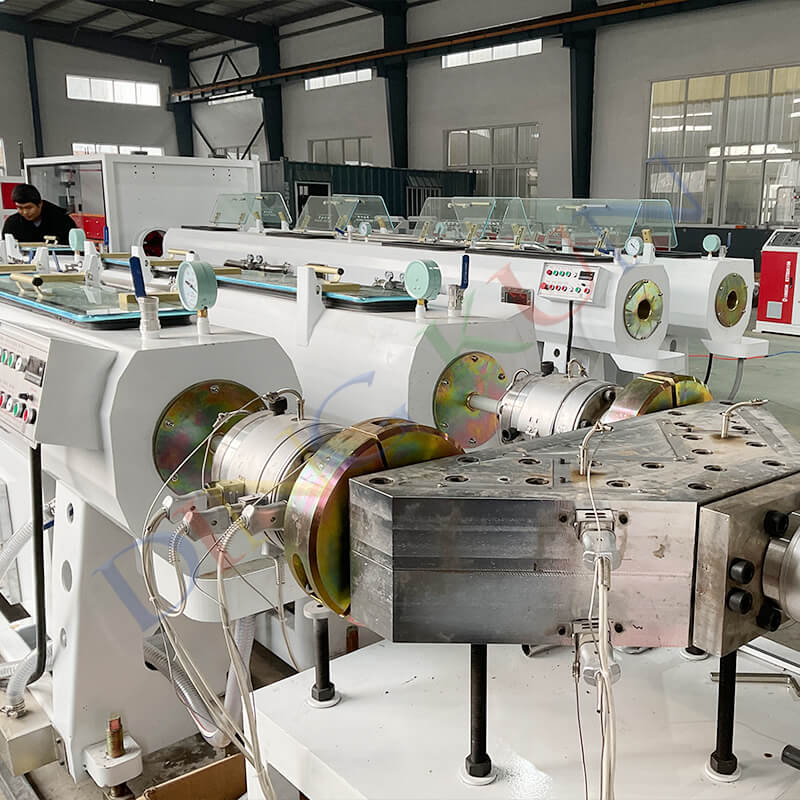

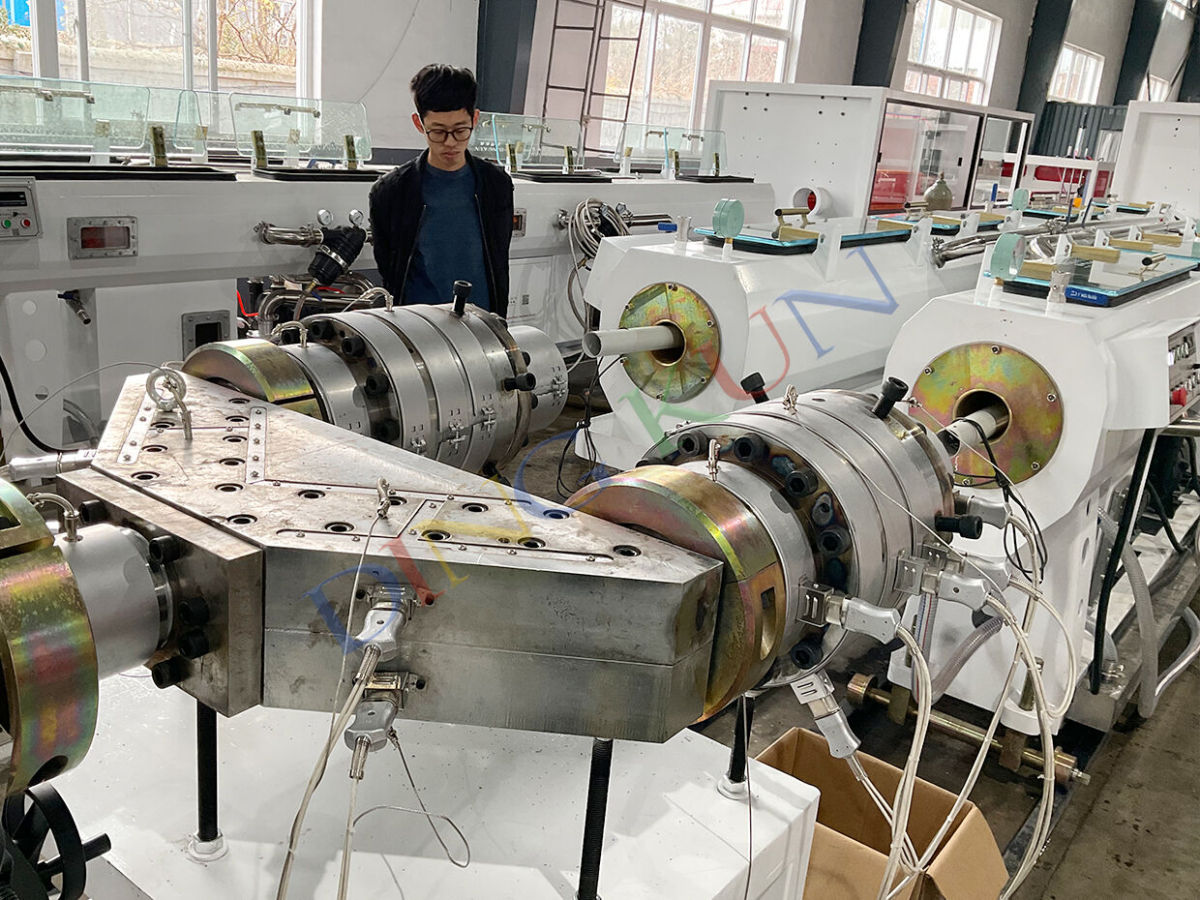

Double Pipe Mould:
Extrusion die head apply bracket structure, each material flow channel is placed evenly. Each channel is after heat treatment, mirror polishing and chroming to ensure material flow smoothly. Die head is modular design, easy for changing pipe sizes, assembling, dismantle and maintenance. Can produce single layer or multi-layer pipe.

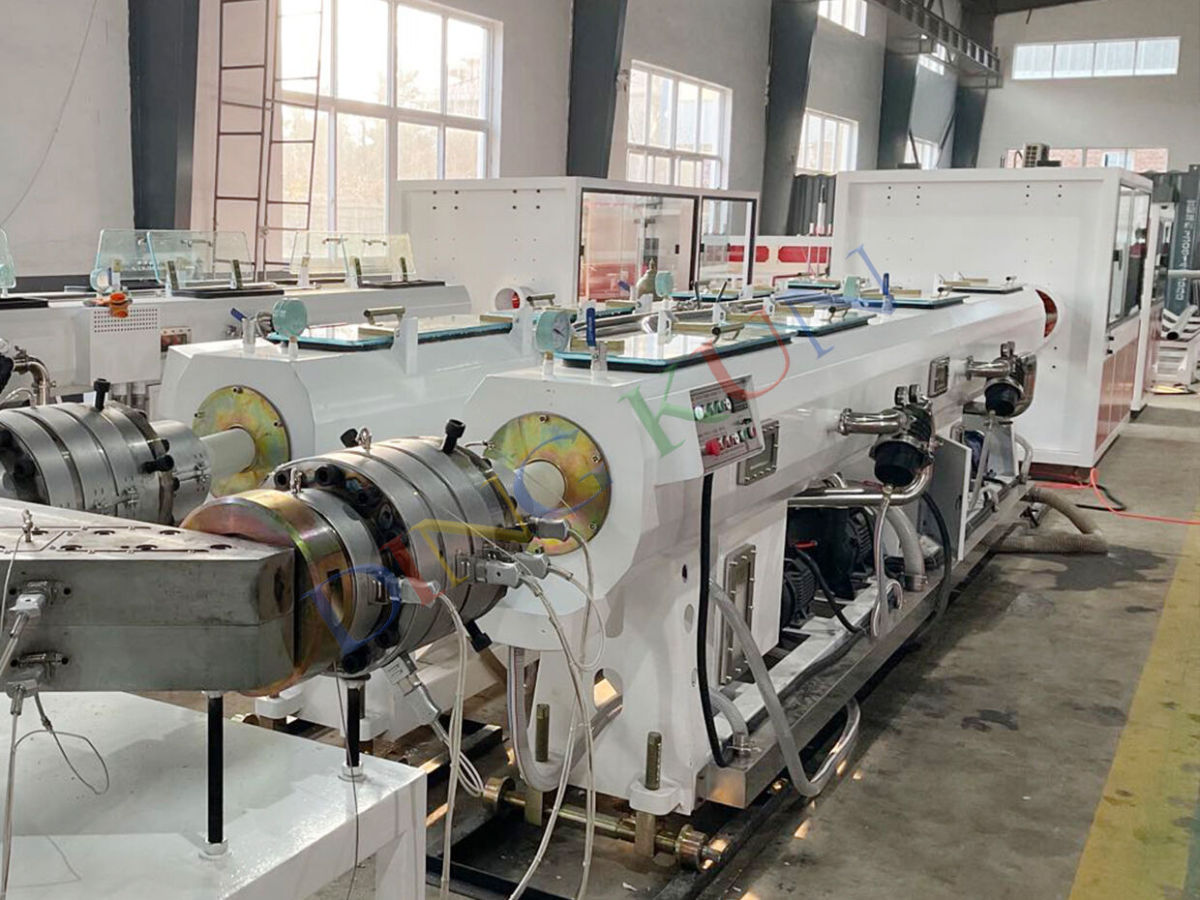

Vacuum Calibration Tank (2 sets):
Vacuum tank is used to shape and cool pipe, so as to reach standard pipe size. We use double-chamber structure. First chamber is in short length, to ensure very strong cooling and vacuum function. As calibrator is placed in the front of first chamber and pipe shape is formed mainly by calibrator, this design can ensure quick and better forming and cooling of pipe.
Double Pipe Haul off Machine:
Adopts caterpillar type, which includes two-claw types, three-claw types, four-claw types, six-claw types, eight -claw types, ten-claw types, twelve-claw types etc, suitable for different sizes of pipes. Haul off caterpillar blocks are made of abrasion resistant rubber material, which can make a high and stable hauling speed.

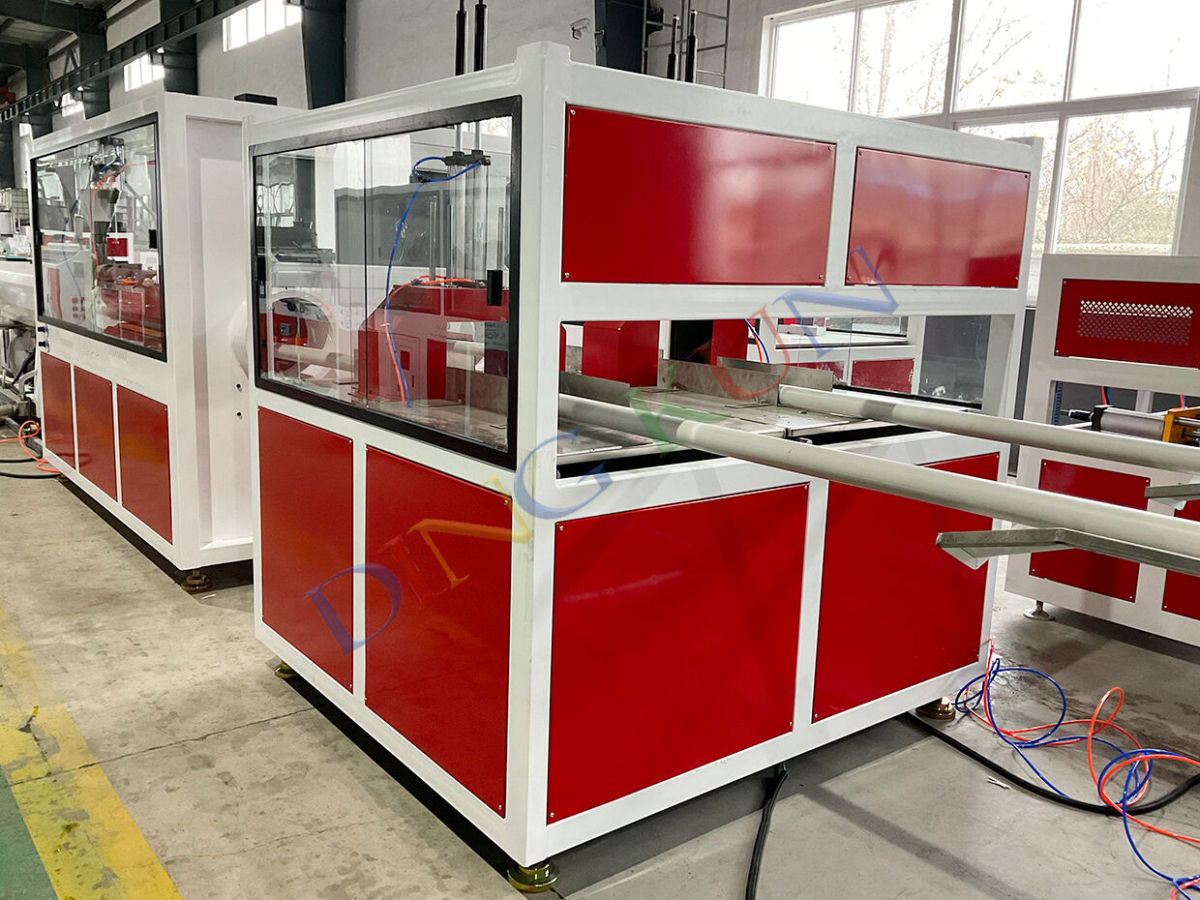

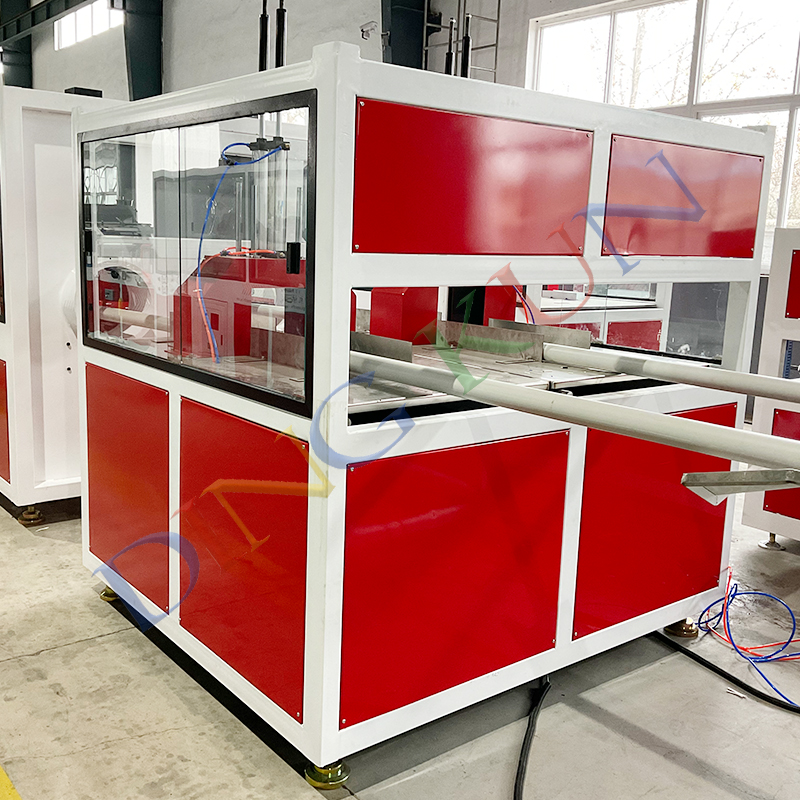

Double Pipe Cutting Machine:
Precision machine cutter is able to make flat, straight cuts into pipes at high speed. A powerful suction device gathers up waste scraps after cutting, thereby making it easier for users to clean the cutter.

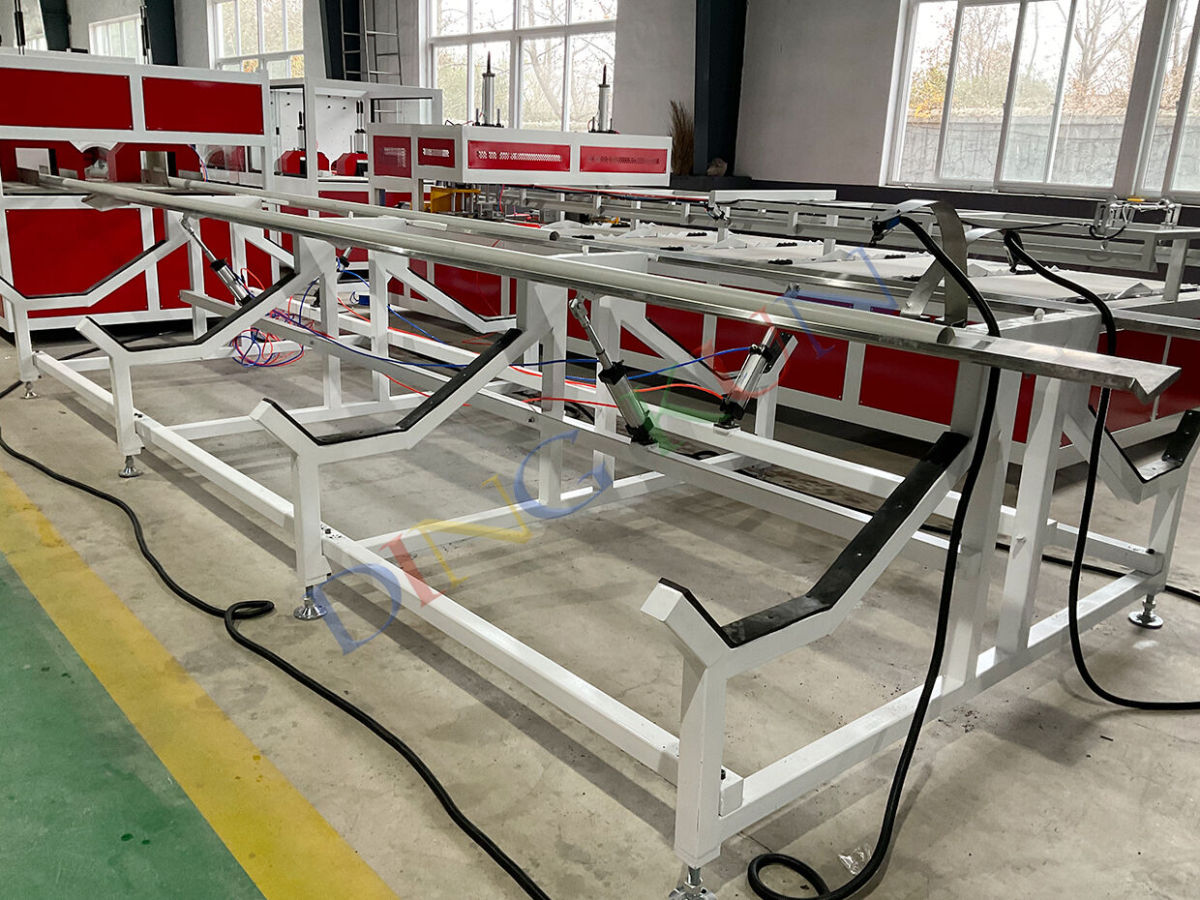

Double Pipe Stacker:

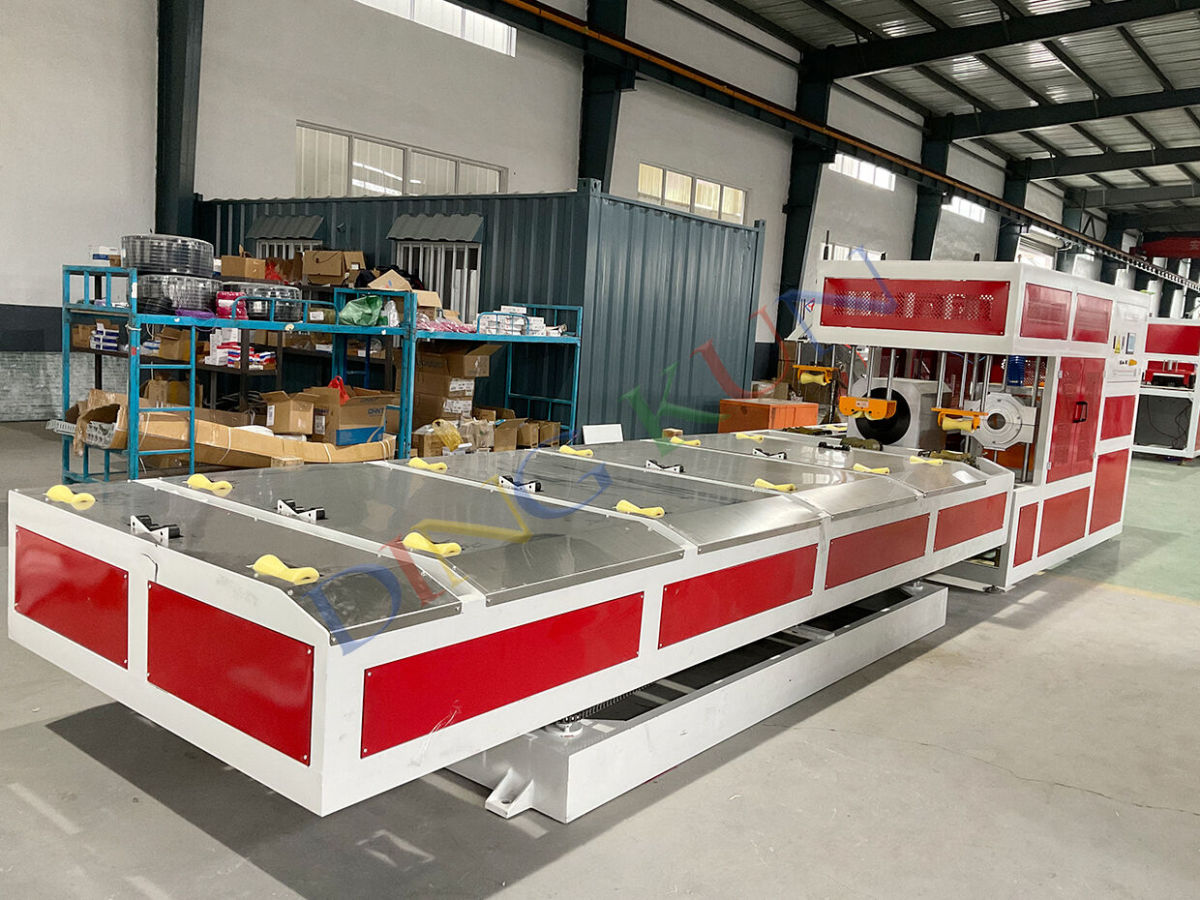

PVC Pipe Belling Machine:
BEST PVC PIPE MACHINE - FOCUS EXPORT MARKT MORE THAN 16 YEARS, WIN-WIN COOPERATION!
Qingdao Dingkun Plastic Machinery Co.,Ltd . manufacture PVC Twin Pipes Making Machine and supply OEM, ODM service according to your requirement. Our PVC Double Pipes Machine is good in quality and competitive in price, welcome to contact us for more details of PVC Twin Pipes Making Machine or related products.
