HDPE Pipe Machine with high automation, high speed, high reliability, low energy consumption. Our PE pipe extrusion can process wide range of material, including HDPE, LDPE, PP, PPR, PPH, PPB, MPP, PERT, etc.

Our PE pipe extrusion line can produce from size of minimum 16mm to 2000mm with single layer or multi-layer.

Produce Process :

Feature and advantage of HDPE / PPR pipe making machine

(1) This production line aim at the characteristic of the PPR pipes.

(2) It adopts high efficiency single screw extruder can equipped with the Siemens PLC controlling system.

(3) It can realize the whole line automatic controlling of high capacity, stable extruding with the suitable changing of different units could realize the production job of PE-RT, PEX, PB pipe.

Machine Details

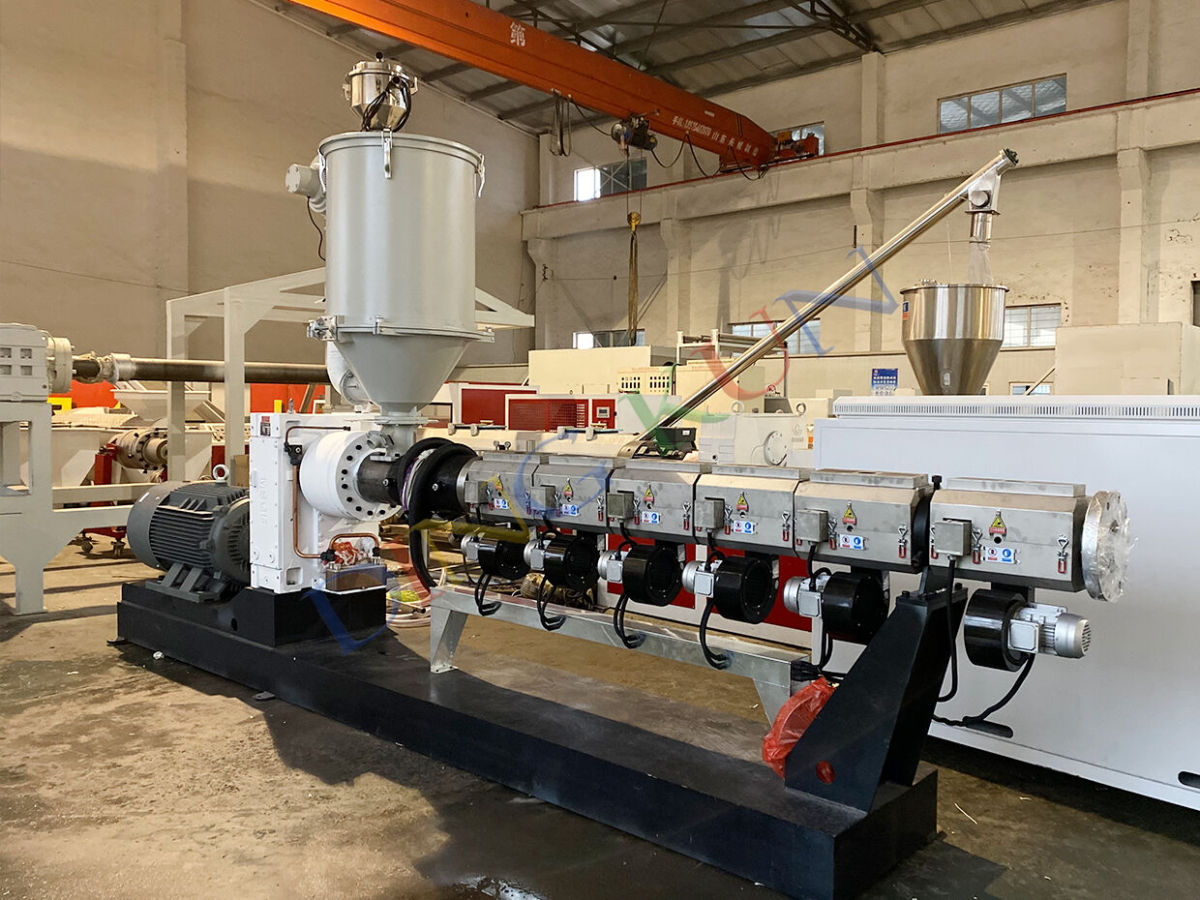

Single Screw Extruder

Based on 33:1 L/D ratio for screw design, we have developed 38:1 L/D ratio. Compared with 33:1 ratio, 38:1 ratio has advantage of 100% plasticization, increase output capacity by 30%, reduce power consumption up to 30% and reach almost linear extrusion performance.

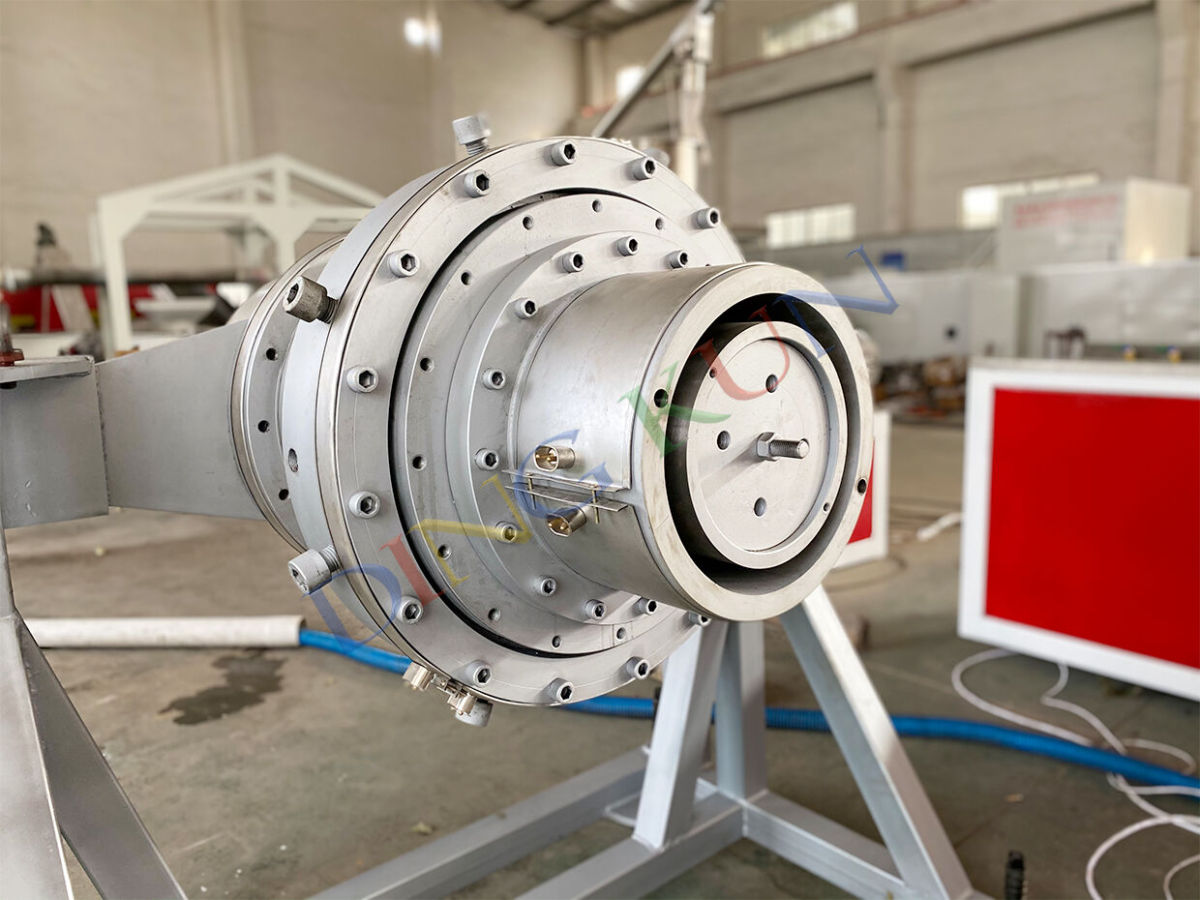

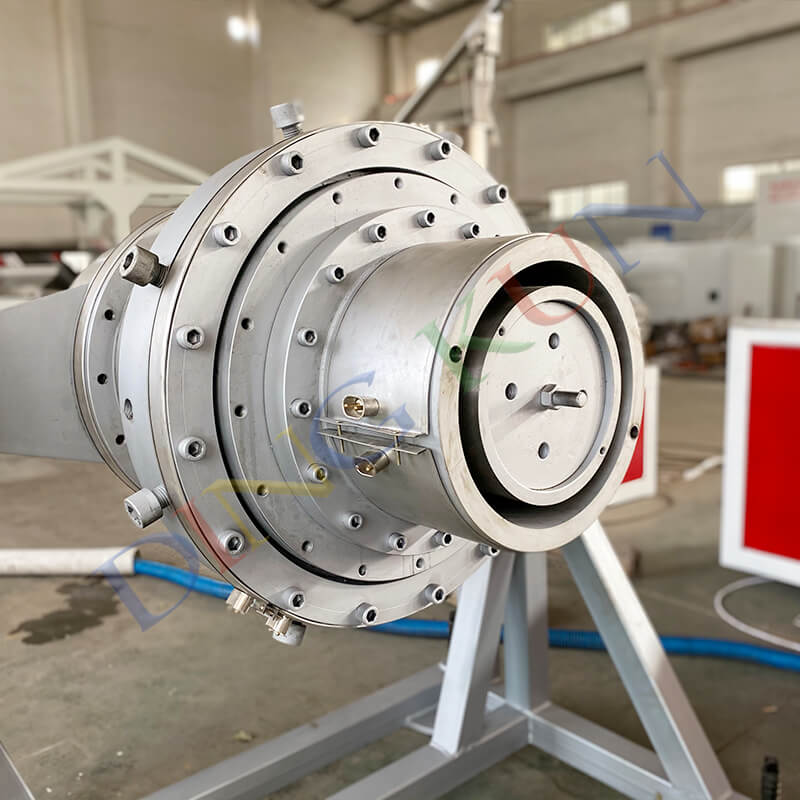

Extrusion Die Head

Extrusion die head apply spiral structure, each material flow channel is placed evenly. Each channel is after heat treatment and mirror polishing to ensure material flow smoothly. Die head structure is compact and also provide stable pressure, always from 19 to 20Mpa. Under this pressure, pipe quality is good and very little effect on the output capacity. Can produce single layer or multi-layer pipe.

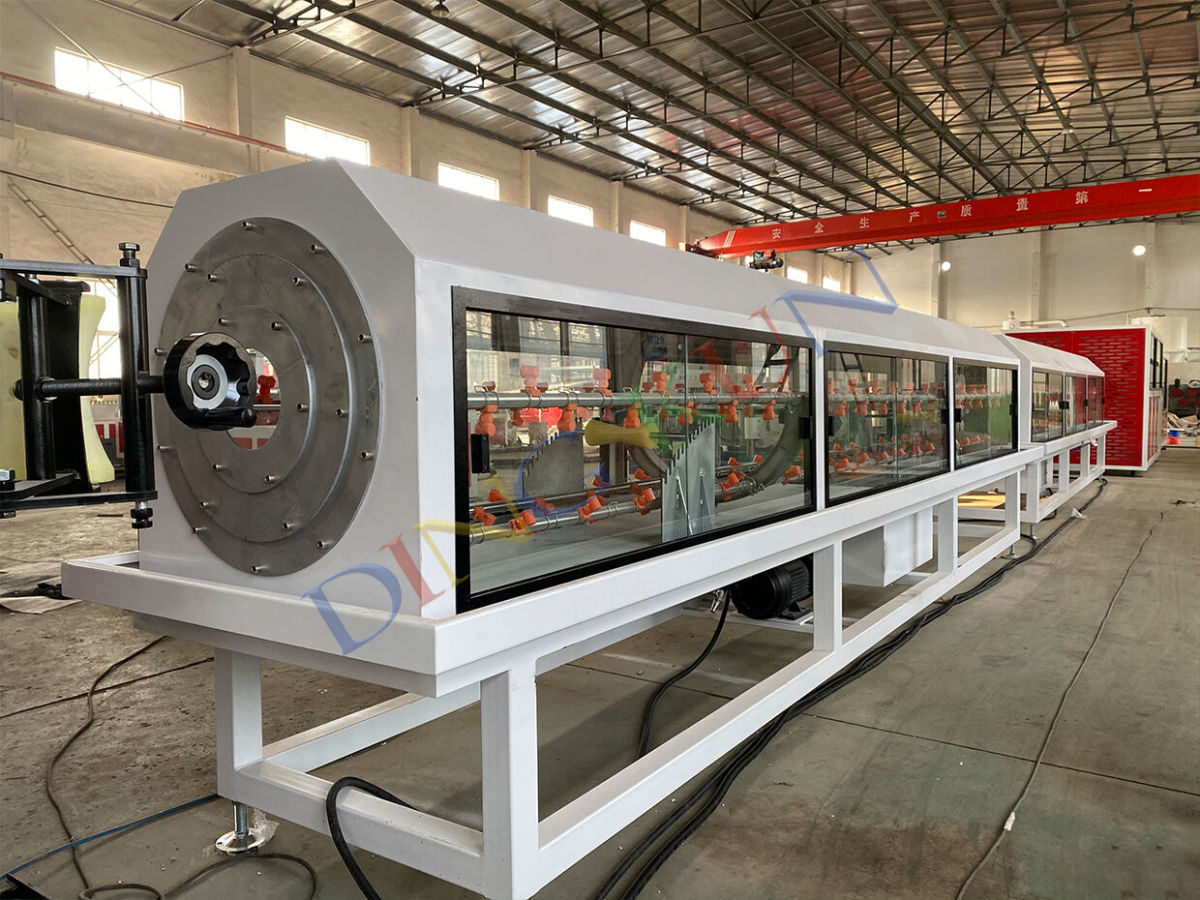

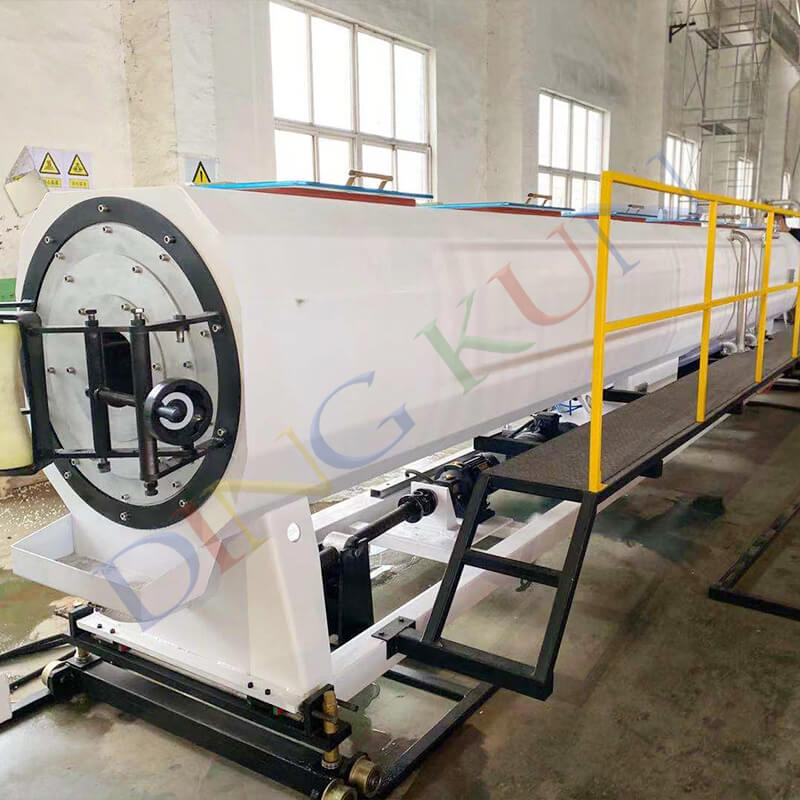

Vacuum Calibration Tank

Vacuum tank is used to shape and cool pipe, so as to reach standard pipe size. We use double-chamber structure. First chamber is in short length, to ensure very strong cooling and vacuum function. As calibrator is placed in the front of first chamber and pipe shape is formed mainly by calibrator, this design can ensure quick and better forming and cooling of pipe.

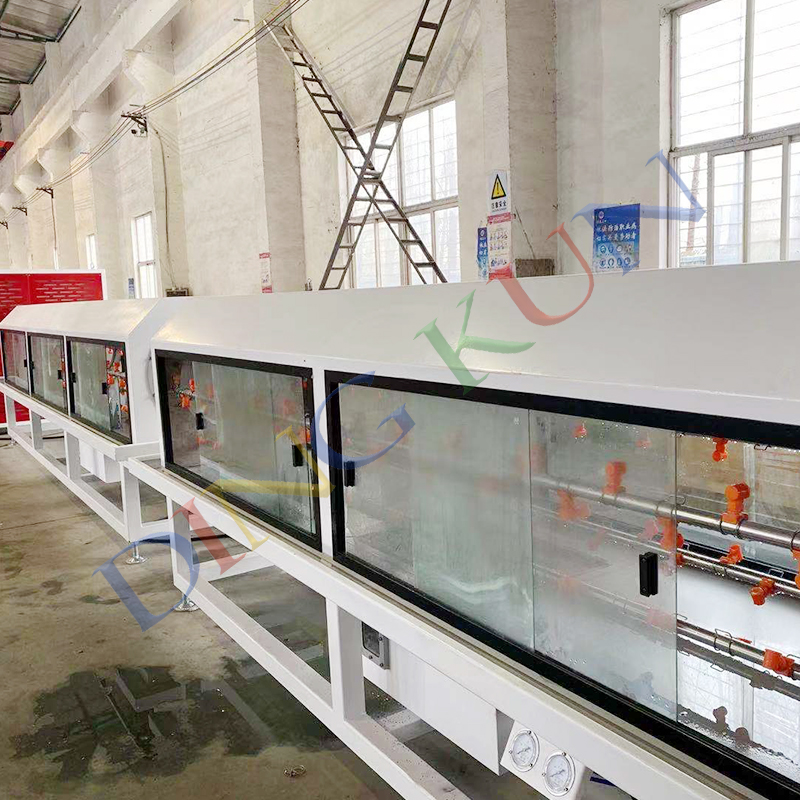

Cooling tank

Cooling tank is used to cool pipe further.

Haul off Machine

Haul off unit provides sufficient traction force to pull pipe stably. According to different pipe sizes and thickness, our company will customize traction speed, number of claws, effective traction length. To ensure match pipe extrusion speed and forming speed, also avoid deformation of pipe during traction.

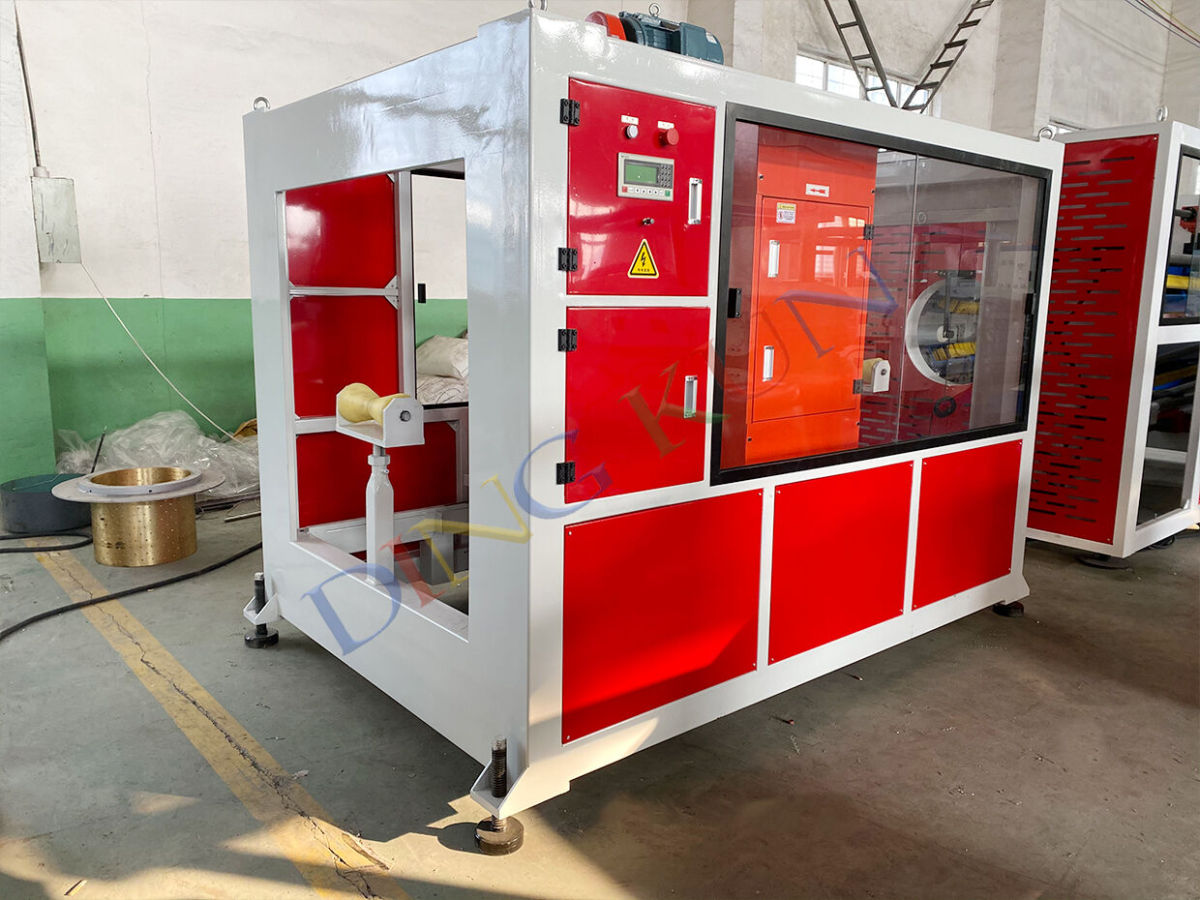

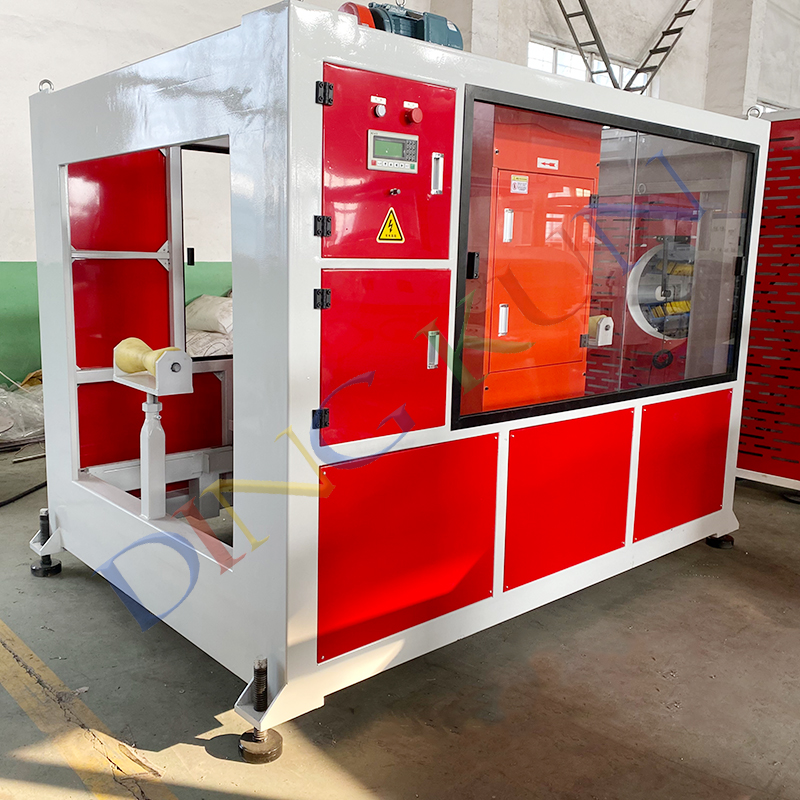

Cutter Machine

Cutter controlled by Siemens PLC, working together with haul off unit to have precise cutting. Customer can set the length of pipe they want to cut.

Multi-feed-in actions for the accomplishment of one cutting process (protect blades and saws, prevent from blade and saws stuck for thick pipe and cut face of pipe is smooth).

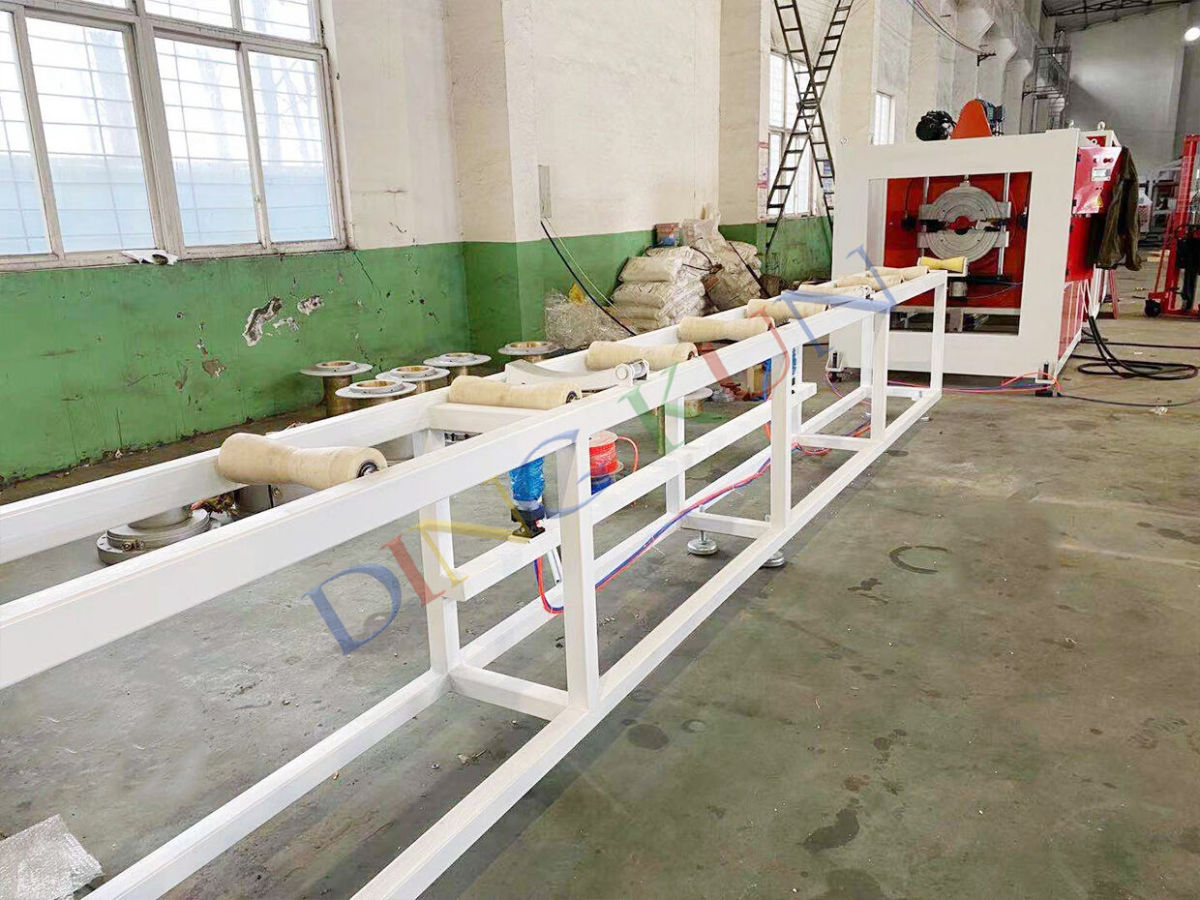

Stacker

To support and unload pipes. Length of stacker can be customized.

Qingdao Dingkun Plastic Machinery Co.,Ltd. manufacture HDPE/PPR Pipe Production Line and supply OEM, ODM service according to your requirement. Our HDPE/PPR Pipe Production Line is good in quality and competitive in price, welcome to contact us for more details of HDPE/PPR Pipe Production Line or related products.
