Home / Product / PVC HDPE PPR Pipe Machine / HDPE Large Diameter Hollow Wall Winding Pipe Machine

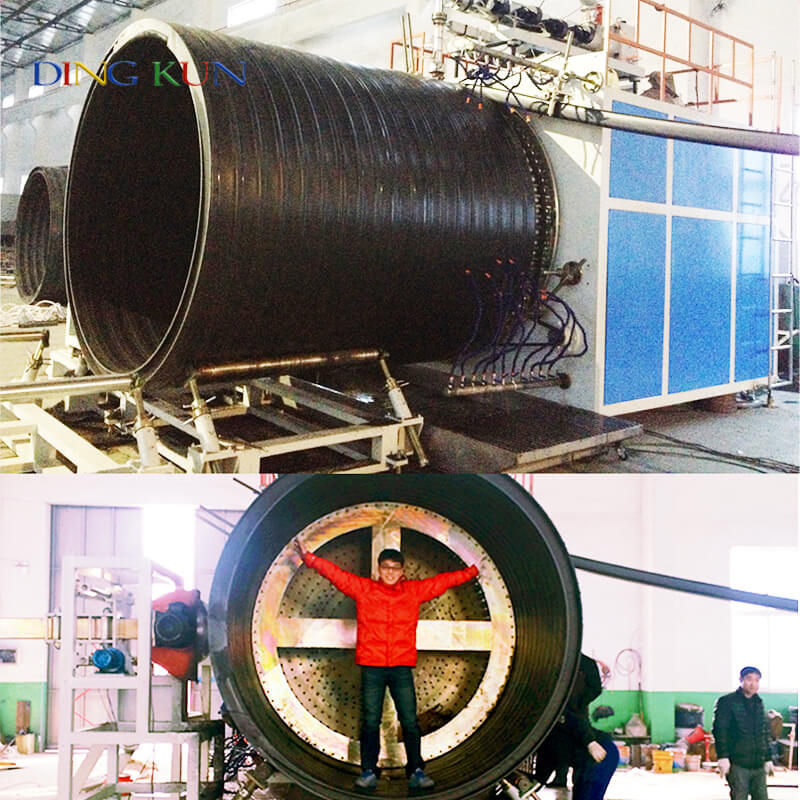

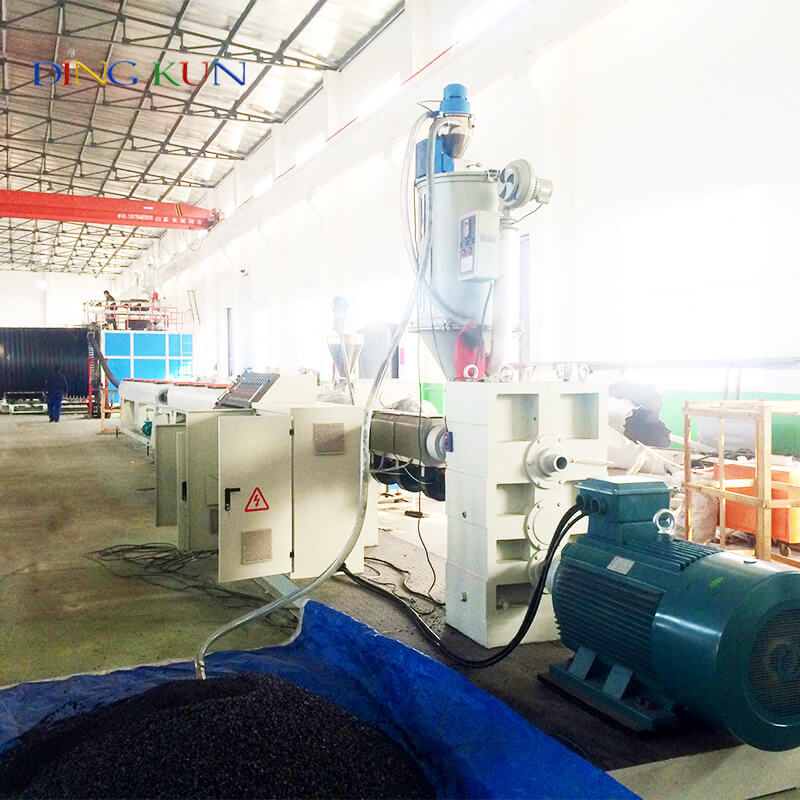

HDPE Large Diameter Hollow Wall Winding Pipe Machine

HDPE large diameter hollow wall pipe has been recognized as a substitute for cement pipes and cast iron pipes because it possesses superior advantages in water drainage and water sewage conduit. We have the strongest technology advantages and rich experience on pipe production. The quality and performance of our HDPE hollow wall winding machinery represent the highest level in China and leading level in the world.

Message

E-mail

Features:
• The line adopts two sets of single-screw extruders to ensure high-speed and high-quality extruding.
• Unique design of composite die-head and forming by spiral rotation ensure high production efficiency and quality.
• Advanced PLC control system makes operation very convenient and operation very efficient.
• Special pipe fittings are adopted and connection is very convenient.

Keywords:
PE spiral hollow wall pipe, PE extruder, plastic extruder, plastic extrusion, spiral pipe extrusion, winding pipe extrusion, winding pipe extruder, PE winding pipe,

PE spiral pipe extrusion, PE extruder, PE extruder manufacture

Main technical data:

Model	Pipe range(mm)	Extruder			Installed power (kw)	Max capacity (kg/h)	Overall dimension (L×W×H)
Model	Pipe range(mm)	Model	L/D	Power(kw)	Installed power (kw)	Max capacity (kg/h)	Overall dimension (L×W×H)
SKRG800	200-800	SJ65×30 SJ55×30	30:1 30:1	55 37	140	200	18m×15m×3m
SKRG1200	300-1200	SJ90×30 SJ65×30	30:1 30:1	90 55	200	380	23m×15m×4m
SKRG1600	800-1600	SJ90×34 SJ65×30	33:1 30:1	110 55	240	580	25m×18m×6m
SKRG2200	1200-2200	SJ100×30 SJ65×34	30:1 33:1	160 75	300	650	30m×15m×7m
SKRG3000	1800-3000	SJ90×30 SJ120×30	30:1 30:1	90 200	400	850	32m×15m×8m

Qingdao Dingkun Plastic Machinery Co.,Ltd . manufacture HDPE Large Diameter Hollow Wall Winding Pipe Production Line and supply OEM, ODM service according to your requirement. Our HDPE Large Diameter Hollow Wall Winding Pipe Production Line is good in quality and competitive in price, welcome to contact us for more details of HDPE Large Diameter Hollow Wall Winding Pipe Production Line or related products.
