Mill Machine / Plastic pulverizer machine
Plastic pulverizer machine is mainly used in producing plastic powder from plastic granules, scraps. This pvc pulverizer has features of good-designed structure, high capacity, low noise.

The whole set of plastic pulverizer miller include feeding hopper, grinding chamber, vetex hopper, vibrating sieve, regrinding system, dust-cleaner. The blade for this plastic pulverizer could be rotor type blade and disk type blade. With cooling system, our plastic pulverizer can be applied to PP, PE, EVA, ABS, PVC materials.
Message
Features:
1. Compared with same type pulverizer machine, the capacity of this mode is higher
2. Equipped with dust collection device to reduce dust pollution.
3. Close blower for discharge can reduce labor intensity of worker
4. the cover of main machine can be opened for maintenance.
5. the cooling system of this pulverizer machine have wind cooling and water cooling, it can cool the machine body very good.

Main Technical Parameters

ModelSMF-400SMF-500SMF-600
Grinding Disk Diameter400mm500mm600mm
Bed Disk Quantity1PC1 PC1 PC
Rotation Disk Quantity1 PC1 PC1 PC
Disk StructureBoth Sides With TeethBoth Sides With TeethBoth Sides With Teeth
Material Feed-in MethodVibration FeedingVibration FeedingVibration Feeding
Cooling MethodWater CoolingWater CoolingWater Cooling
Grinder Motor Power37KW45 KW55KW
Airlock Power0.75kw0.75KW0.75KW
Vibration Sieve Power0.75KW0.75KW0.75KW
Air Blower Power4KW4KW5.5KW
Output Particle Size20-60 Mesh20-60 Mesh20-60 Mesh
Output (LLDPE)80-120kg/h for 35 mesh180-250kg/h for 35 mesh220-300kg/h for 35 mesh
De-duster Filter Bags16PCS16 PCS16 PCS

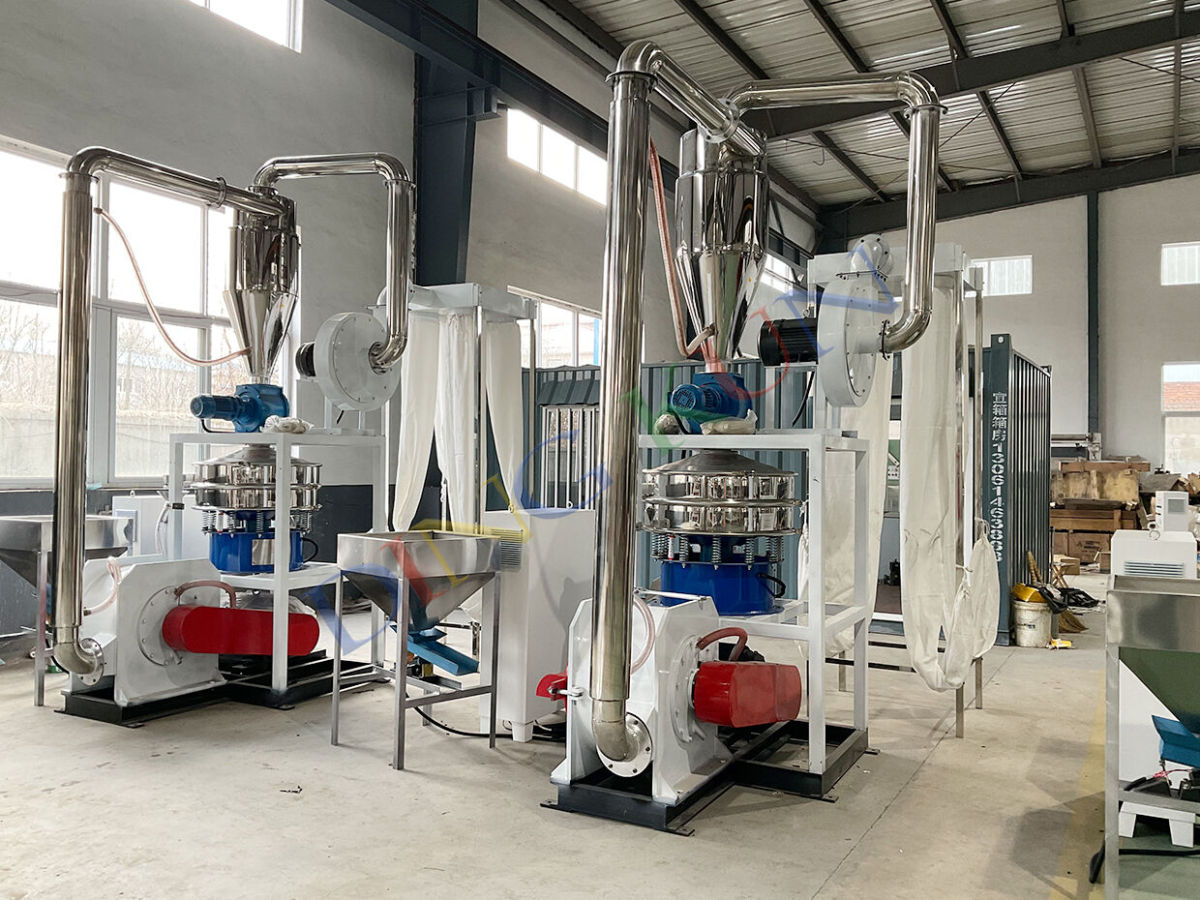

MILL MACHINE.jpg
