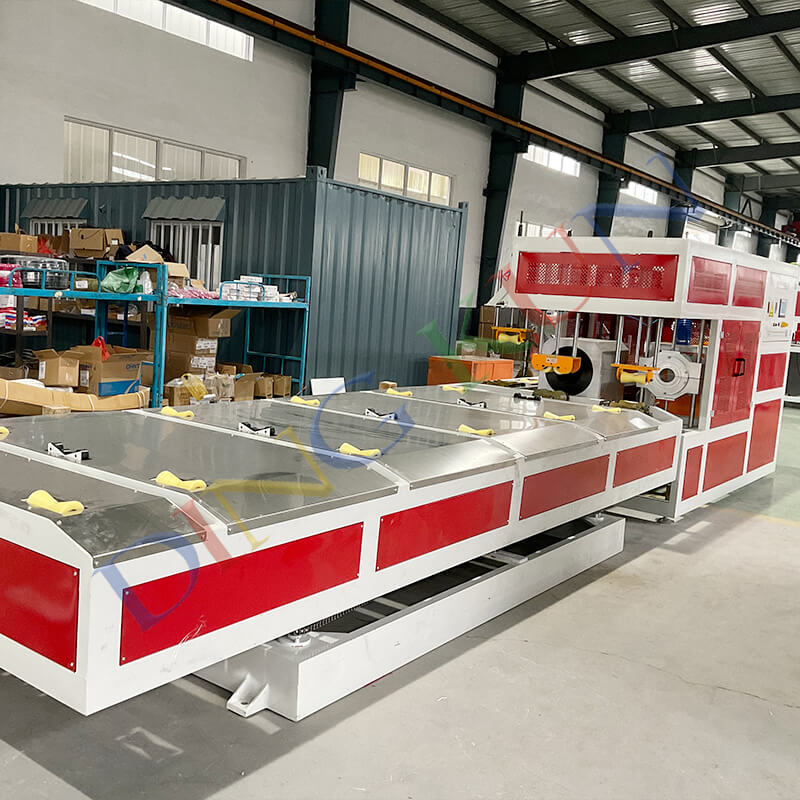

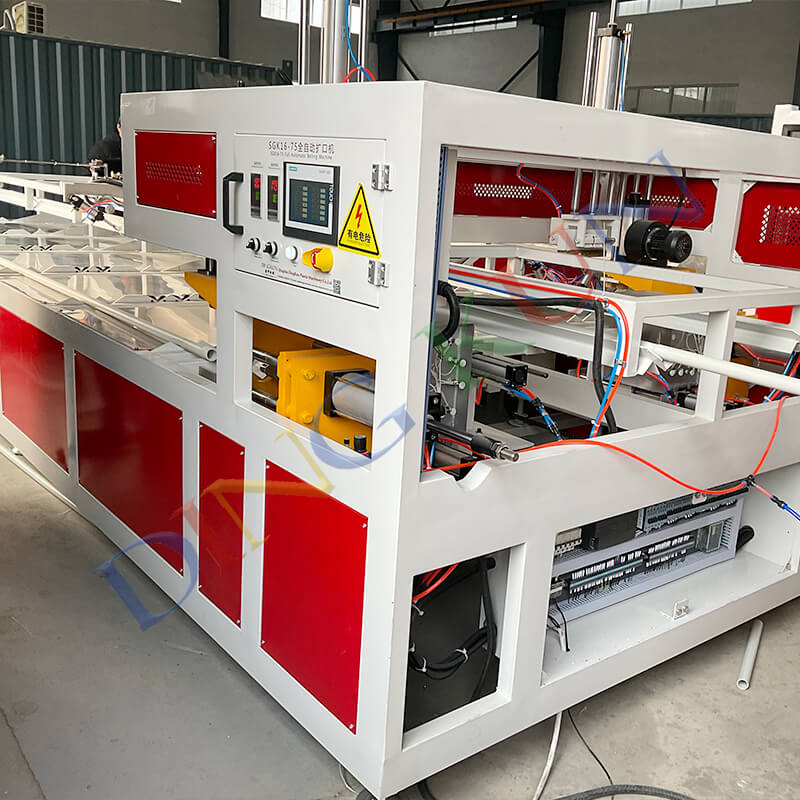

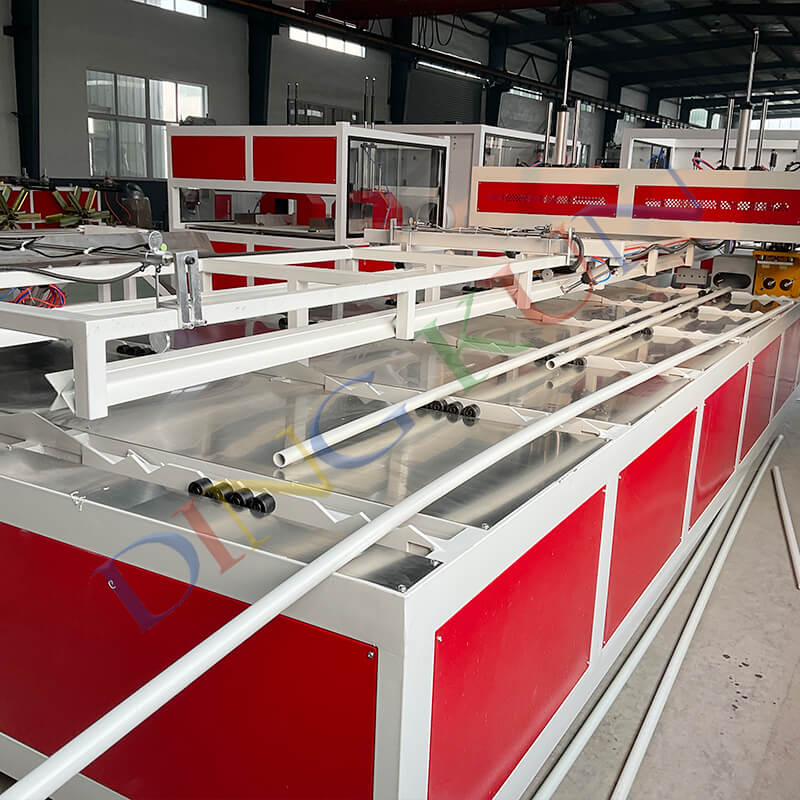

Automatic PVC Pipe Belling Machine 16-630 mm



PipeModel250
standardsPipe Diameter50mm - 250mm

Pipe Length3m - 6m
HeatingOvenOne heating oven, semi-enclosed heated，Ceramic heating plate and Stainless steel heating tube

Pipe RotaryClockwise and anti-clockwise

Heating Power11KW
PneumaticCompressed air pressure0.6Mpa
WaterWater pressure0.4Mpa
HydraulicHydraulic pressure6.3Mpa
Operating principleU-typePushing the mould into pipe directly

R-typeWith ext - pressure and collapsible mandrel

Cooling typeWater - cooling

Machine speed50S to 150S

Mould materialU-type：45# steel with Cr electroplating


R-type： The collapsible parts are 3Cr13 and 40Cr,


other parts 45# steel with Cr electro-plating
