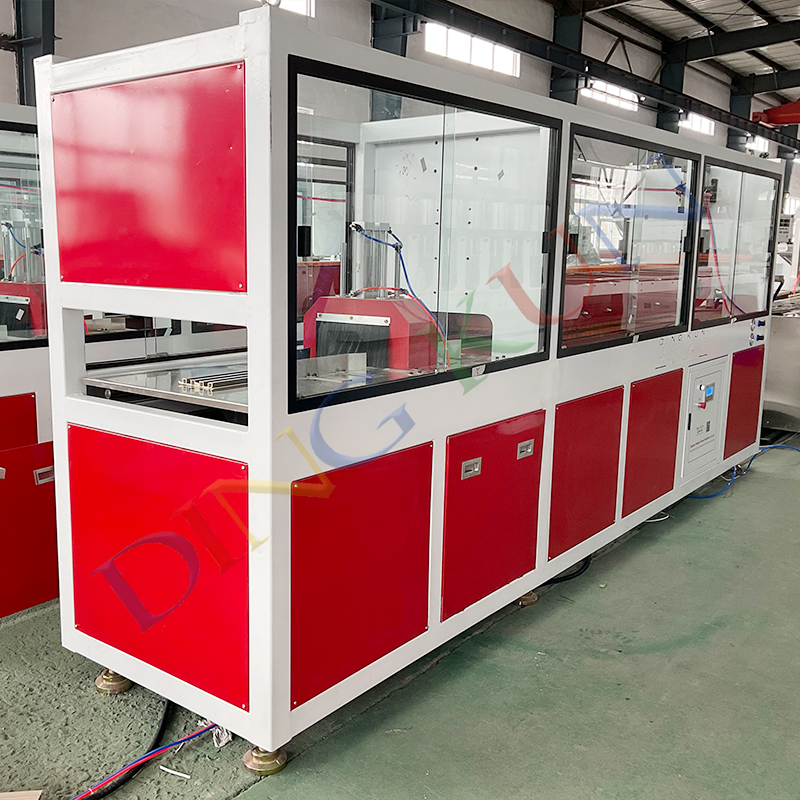

WPC Hollow Door Frame Profile Machine
WPC door frame making machine consists of Conical twin-screw extruder, length Vacuum forming equipment, Haul-off machine, Cutting machine, Stacker and other components, with good stability and high capacity, easy to operate, reliable. The production line can produce window or door profile, stair handrail and other special profiles. Our extrusion line is fully automatic, energy saving and high efficiency.
Message

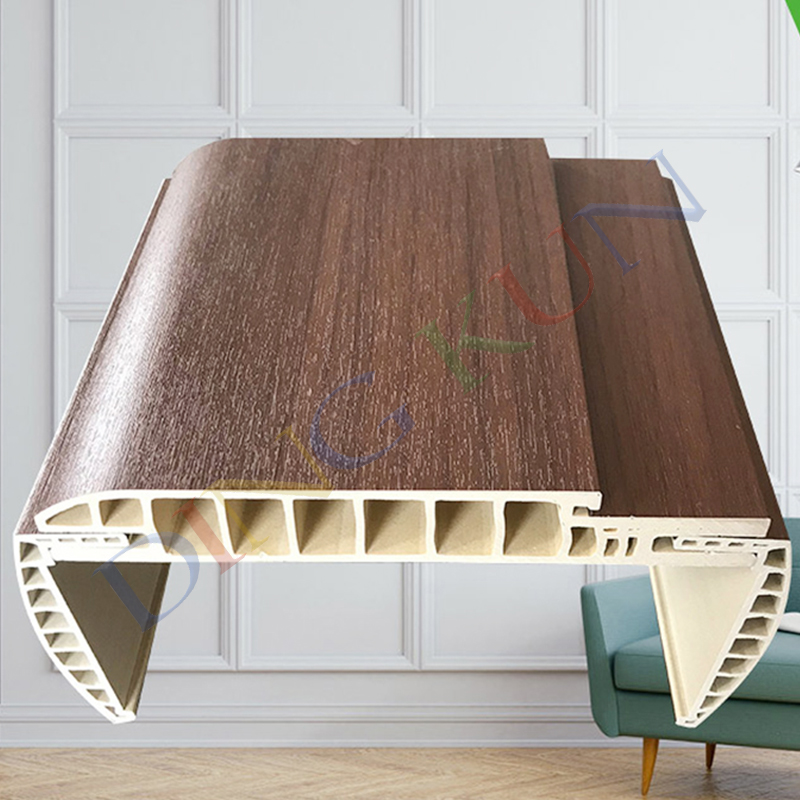

PVC WPC Hollow Door Frame Machine



pvc powder + wood powder + additives → mixing → extrusion line ( conical twin-screw extruder → profile extrusion die → profile moulds→ vacuum calibration platform →haul-off → cutter →stacker → finished product) → surface finish processing ( like heat transfer ,sanding, embossing, etc)


Technical parameter:


ExtruderSJZ65/132
Main Motor Power37kw
Production capacity150-200kg/h


ItemQuantity
1.SJS 65/132 Twin Screw Extruder with Automatic Feeding SystemOne set

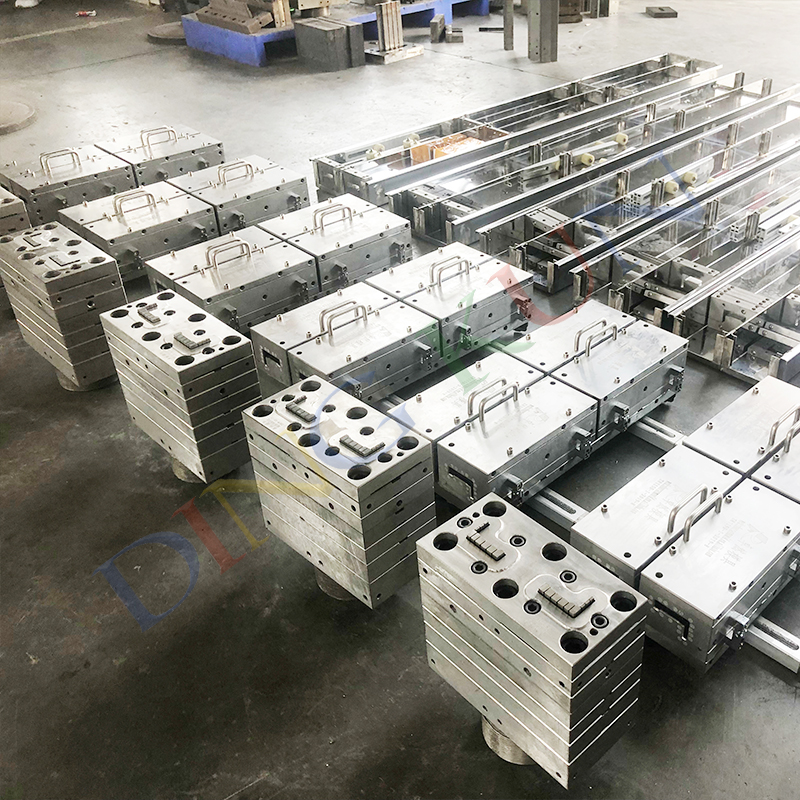

2.Die Mold & Stock MoldOne set
3.Vacuum Calibration TableOne set
4.Haul-off and Cutter UnitOne set
5.StackerOne set
6.Electric Control SystemOne set
Auxiliary machines for your choice
MixerOne set
CrusherOne set
Milling machineOne set

Twin Screw Extruder

Machine Electrical part:ABB inverter,Siemens Motor,Schneider Contactor,Electrical wire is CE export standard

Screw& Barrel : Zhoushan

Control system : SIEMENS PLC or OMRON table control

wpc door frame (1).jpg

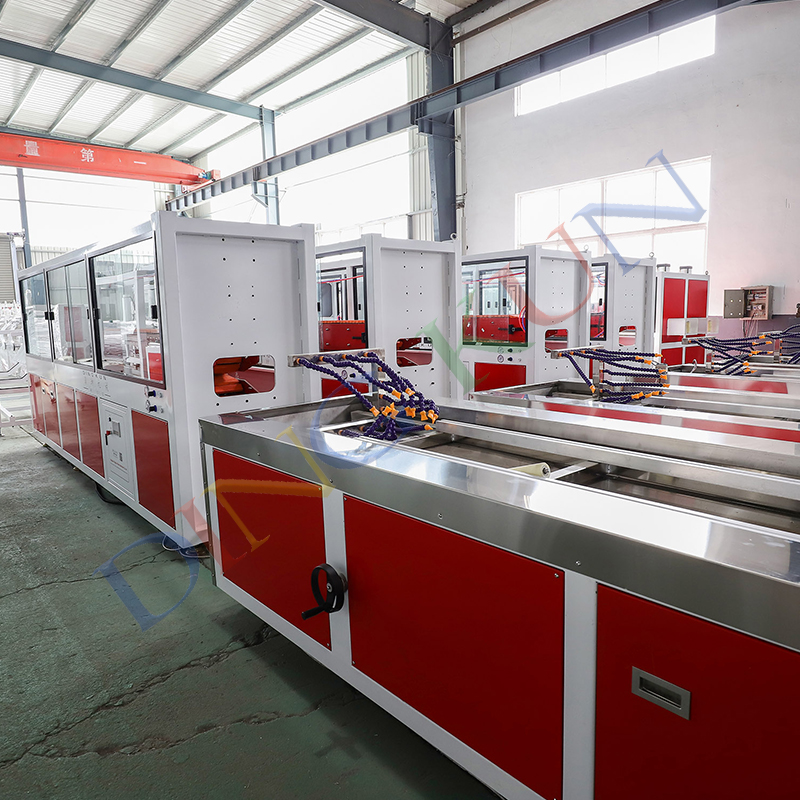

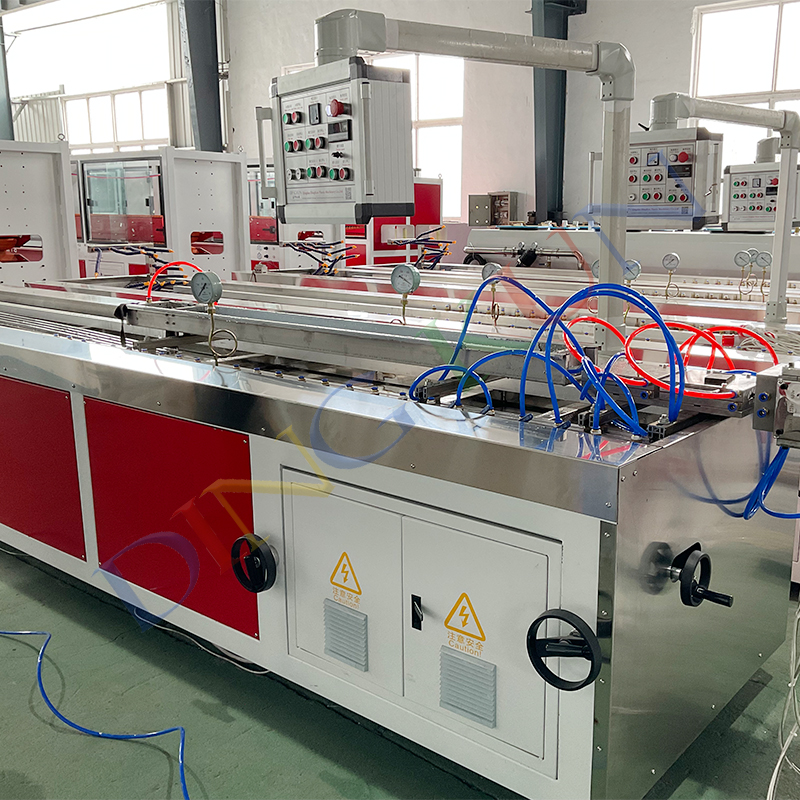

Vacuum Calibration platform
Vacuum calibration table structure adopt 304# Materia.There is also table up & down motor and forward & back motor,It is all automatic.It is easy to adjust the mold with Vacuum table. All material what touch with water ,we all use stainless steel.

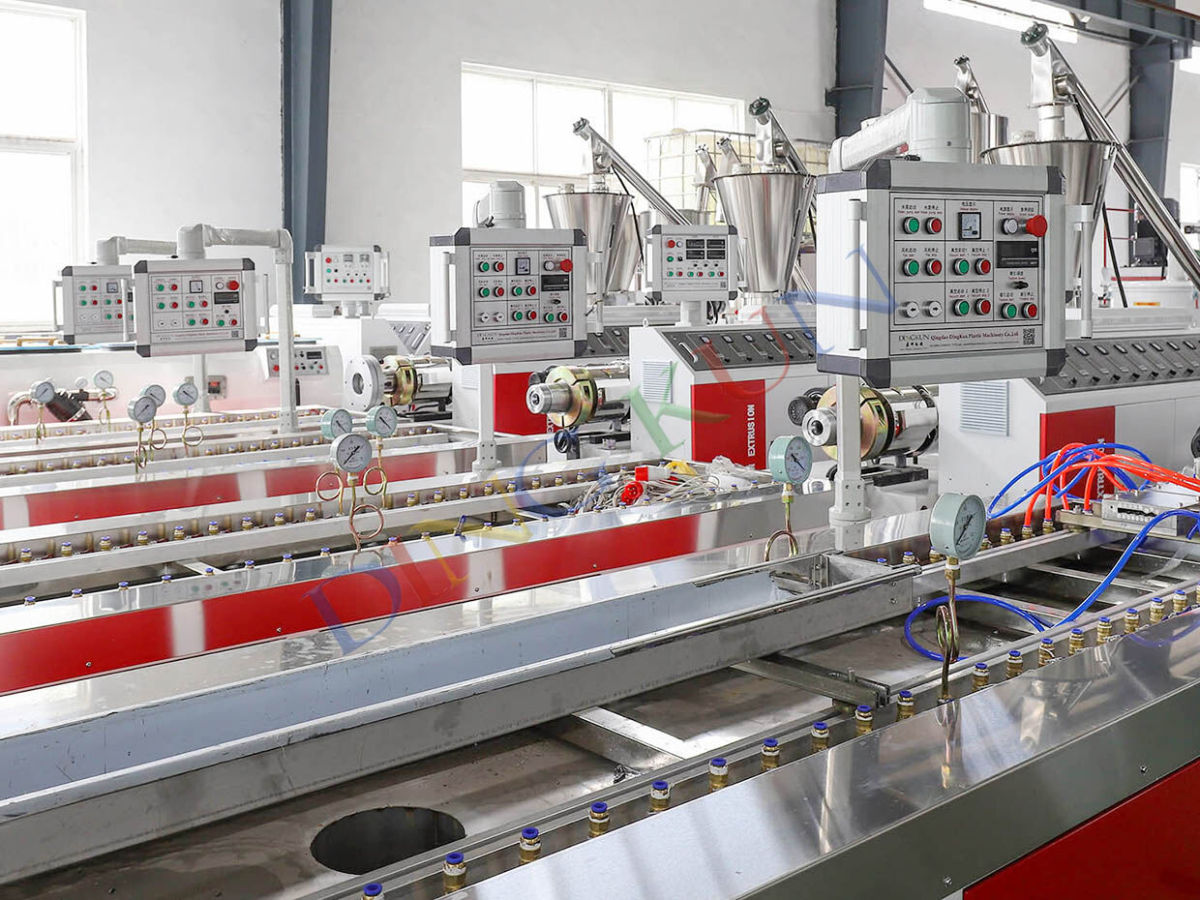

wpc door frame (2).jpg

Haul-off & Cutter Machine
Haul-off Machine: Rubber block is soft material. Adopt best design,it can press products closed,and delivery stably.We choose Geax motor,and control two sets motor by ABB inverter,this mean confirm the two arm run with precise.
Cutting Machine control by PLC,we can cutting by meter.We provide different saw to cut different material products,we also havetwo kind of cutter.One is saw cutter,another one is no-dust cutter(cutting by knife).

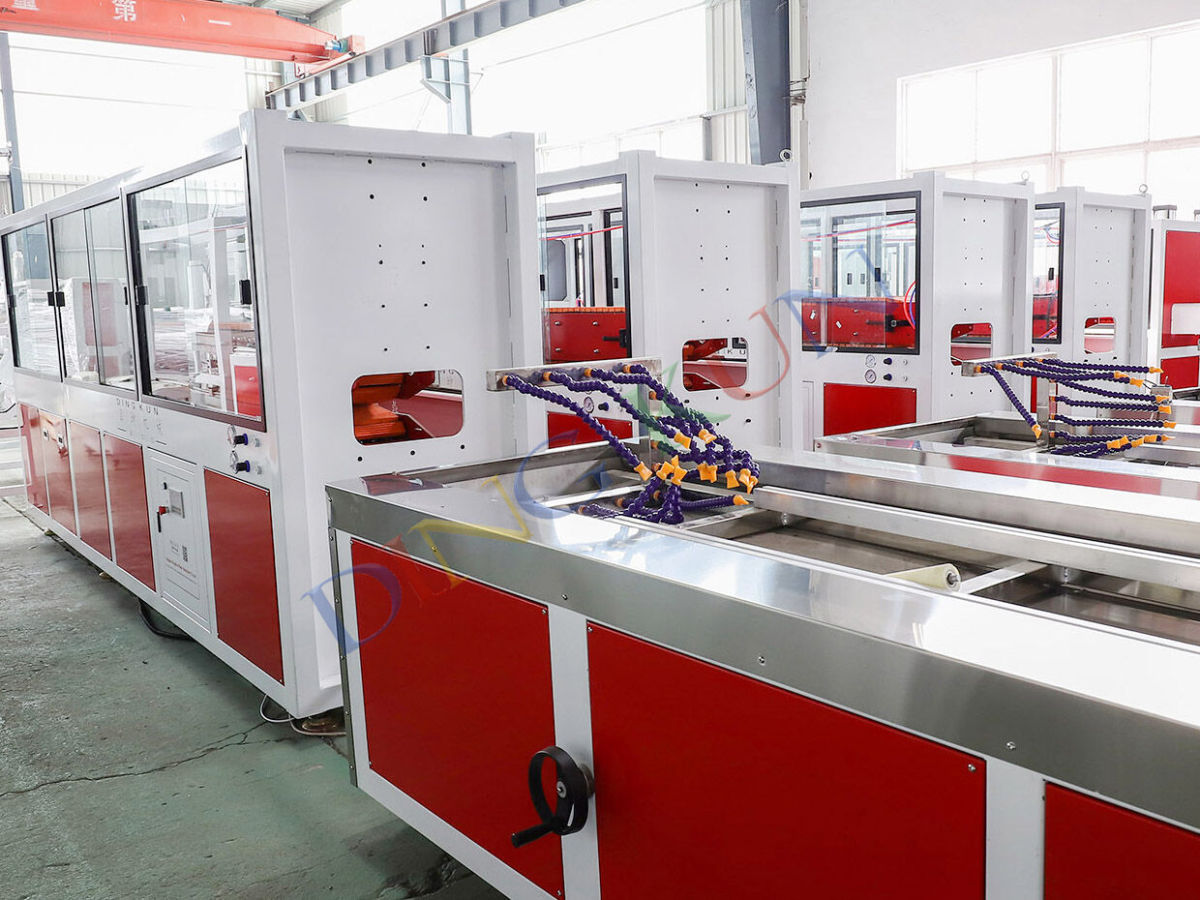

wpc door frame (3).jpg

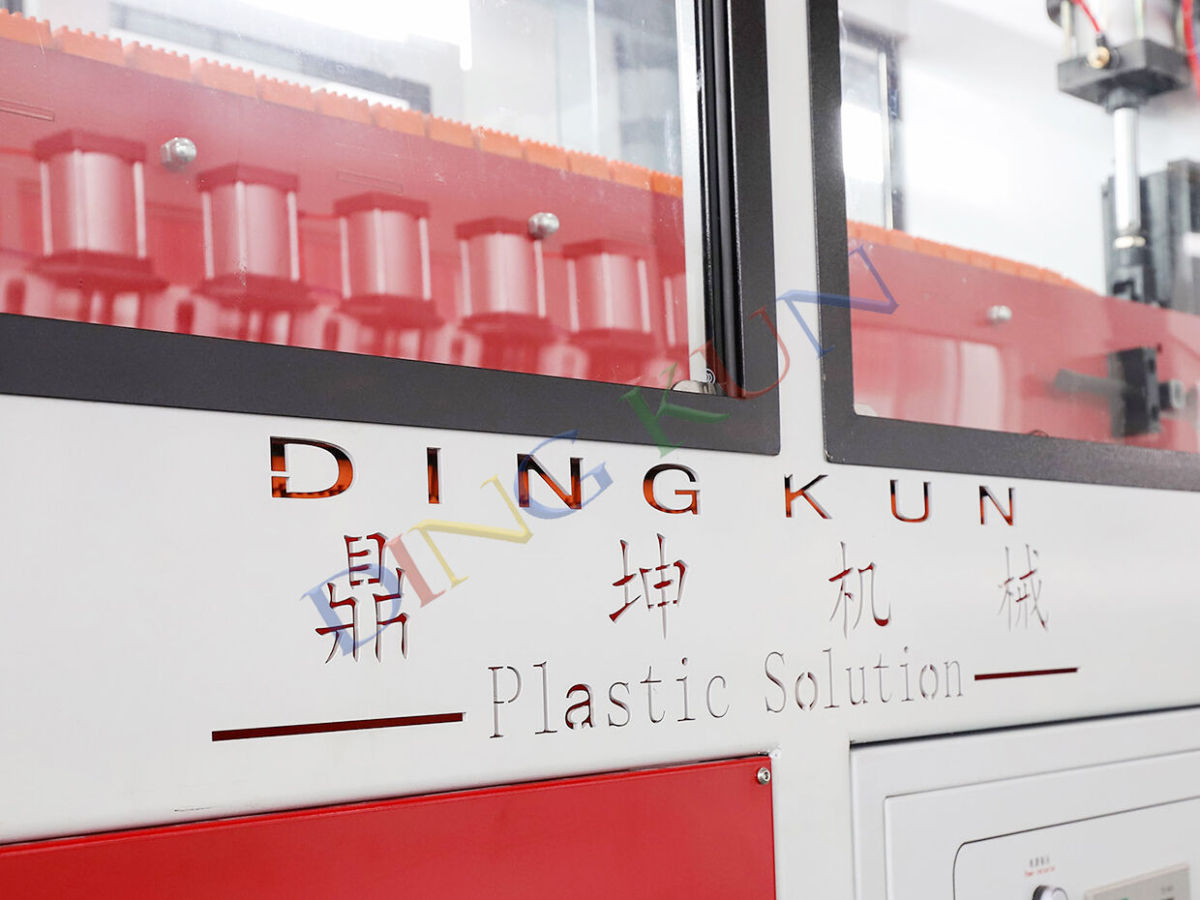

wpc door frame (4).jpg

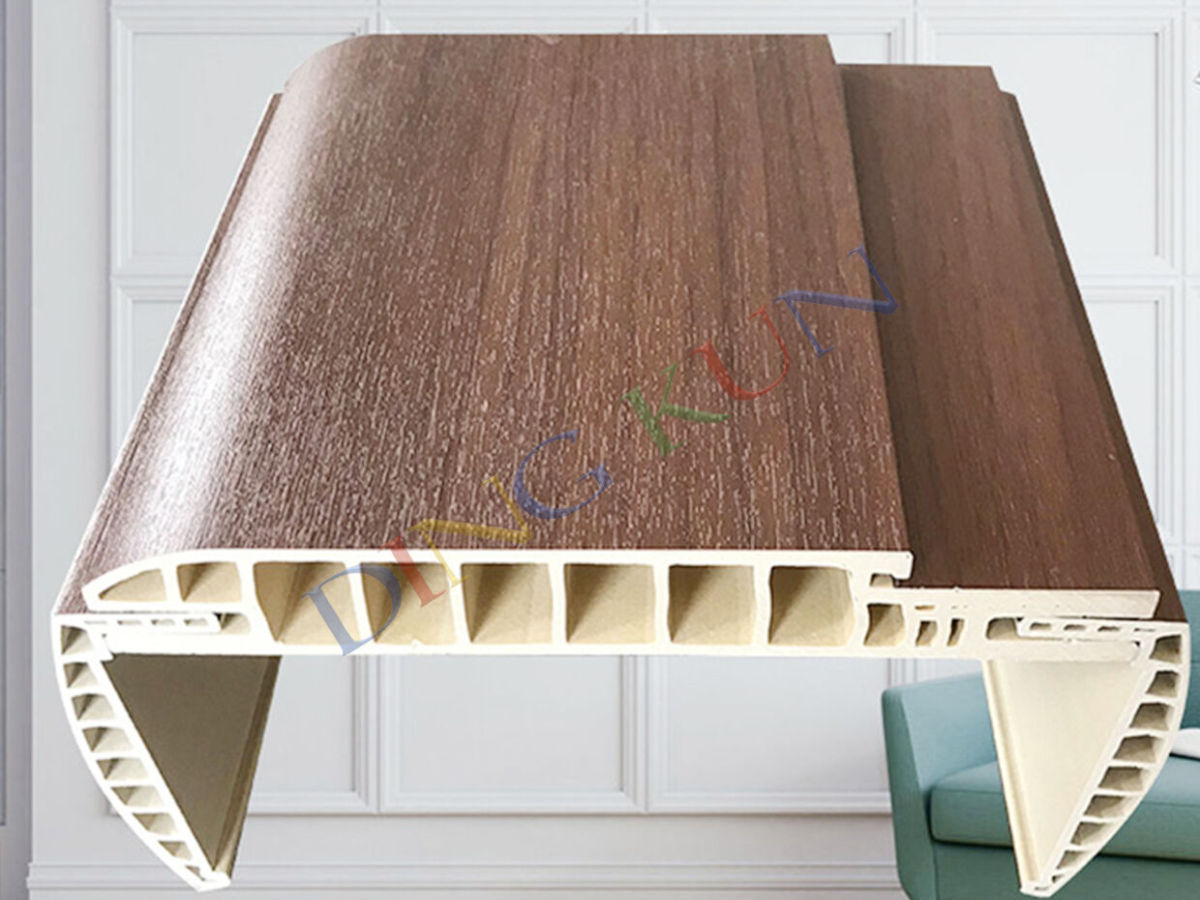

wpc door frame (5).jpg
