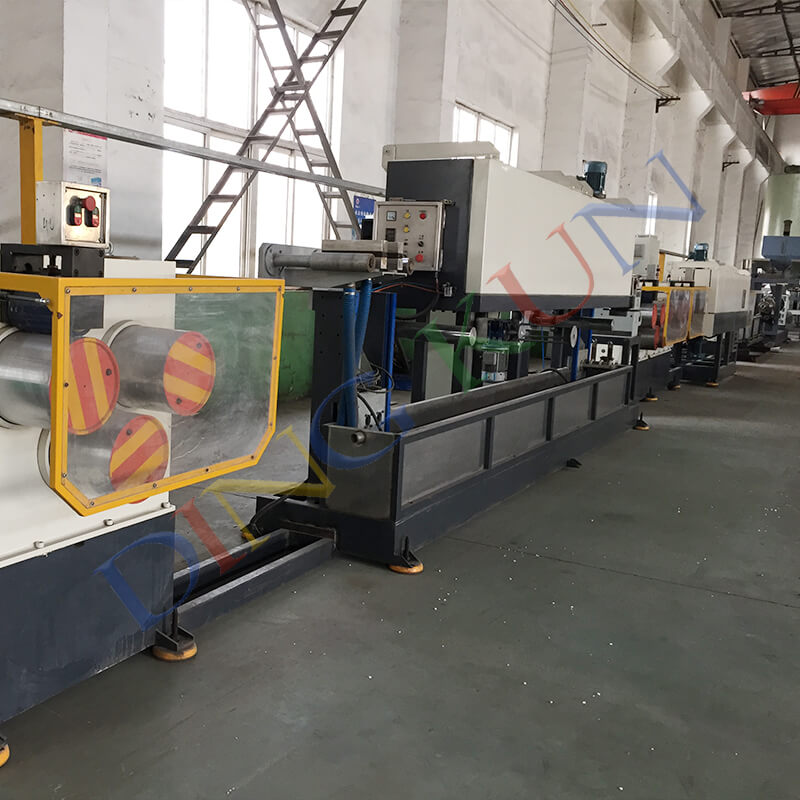

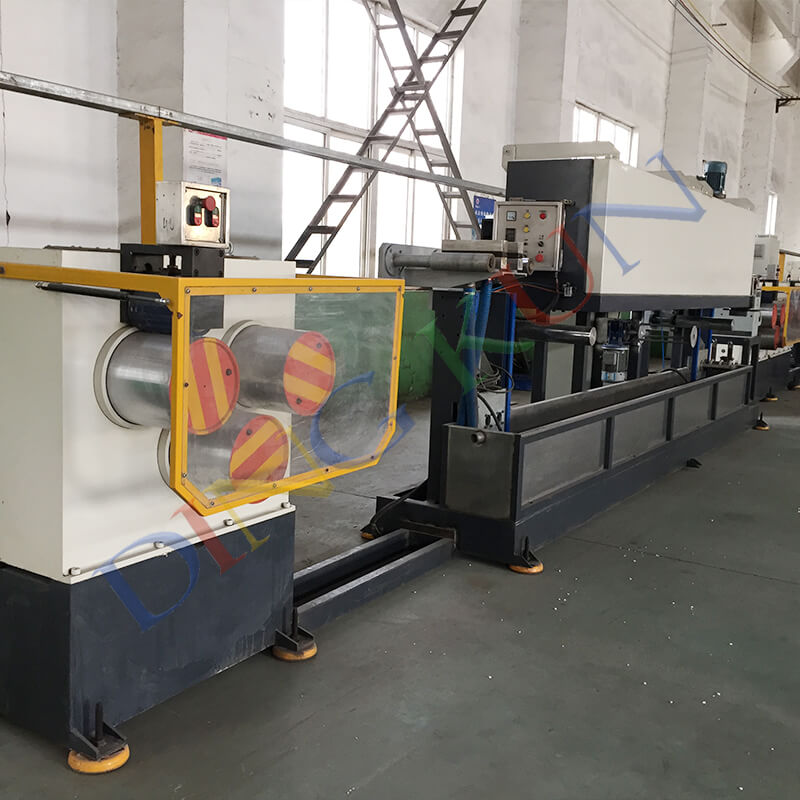

PP Straps machine (Two-cavity;Four-cavity)
PET box strap line is suitable for 100% PET Flakes or PET Virgin Granules equipped with Dehumidified air dryer with Crystallizer.
Message
PET and PP Box Strap Line - Technical Specifications

MODELJP 70 BSTJP 80 BSTJP 80 PET-STJP 100 PET-ST
Processing MaterialsPP/HDPEPP/HDPEPET FLAKES/GRANULES
Screw Dia (MM)708080100
L/D Ratio30:130:130:130:1
No. of StrapsTwoFourTwoFour
Straps Size (MM)9, 12, 15, 199, 12, 15, 199, 12, 15, 199, 12, 15, 19
Max. Output (Kg./Hr.)75 to 80150 to 160100 to 120200 to 250
Inline PrintingSingle ColourSingle Colour--
No. of Winders3535



China High Quality PP, PET Strapping Machine Manufacturers  / PP, PET Strapping Extruder Machine is new equipment developed by our company ,by combining the characteristics of our plastics product trade ,collecting advantages of the same type machine made in domestic and overseas markets and repeating practice in production.


This is new technology to use the PET bottle flakes to make the PET strap. It is of high performance and lower cost.


The products are used: Mould the steel band and is widely used in the pottery, floor ceramic tile , papermaking , woodwork , fabrics , cotton , nonferrous metals , chemical products , electric cable and trays of different articles are tied up , it is the domestic new developing products


Our PET straps production line, which has broken through the traditional craft route, takes the 100% bottle slice for raw materials without any other complement and crystallization, adopts the advance technology to produce all kinds of polyester straps directly in a economical cost.


Specifications:

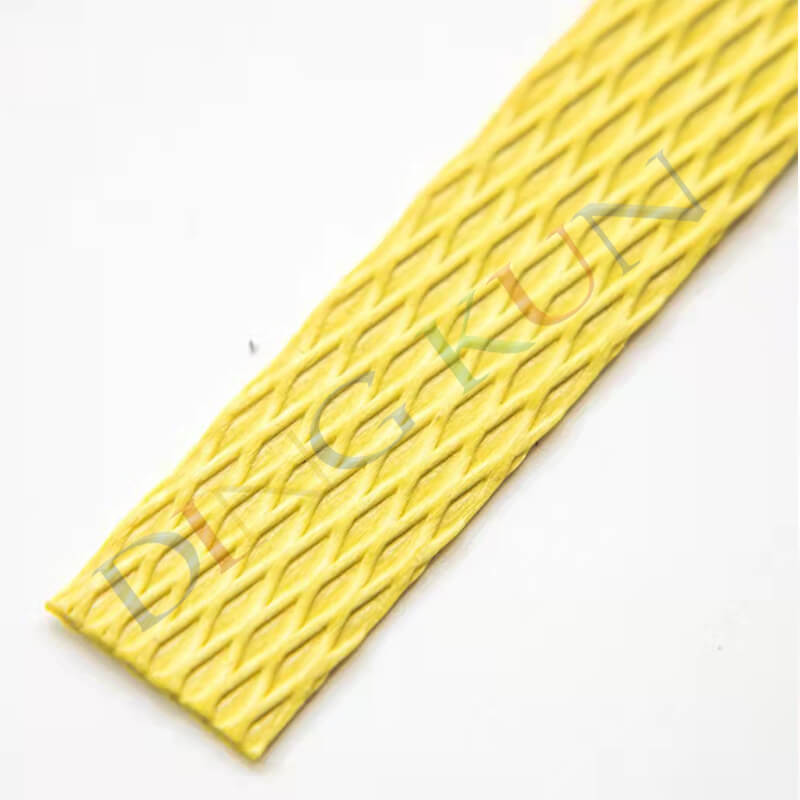

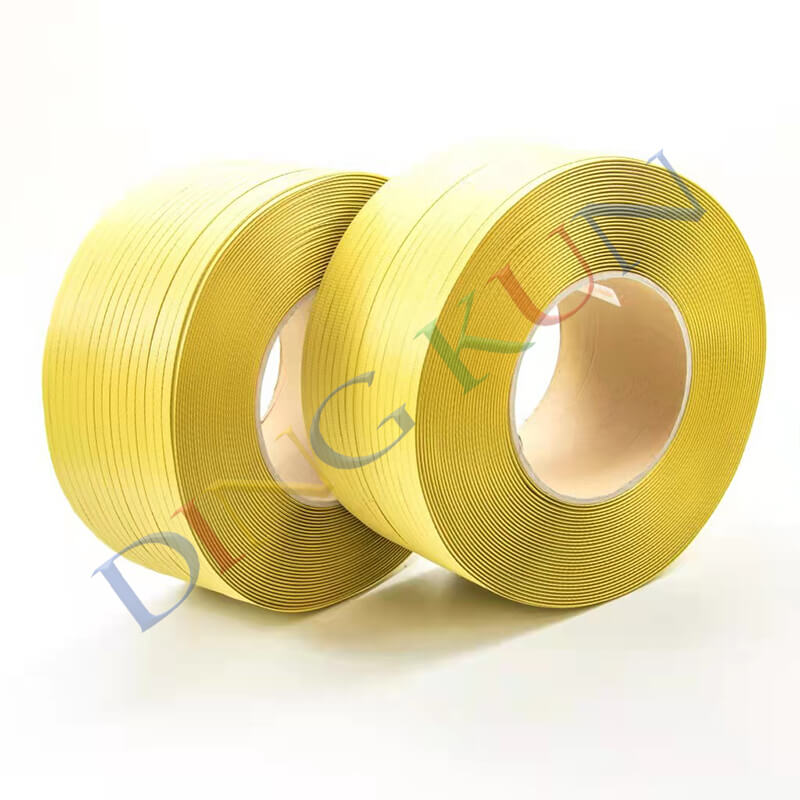

Our machine can produce the PET Strap with width from 9mm to 19mm ;

PET-SJ70/30 single screw extruderMotor power18.5kw

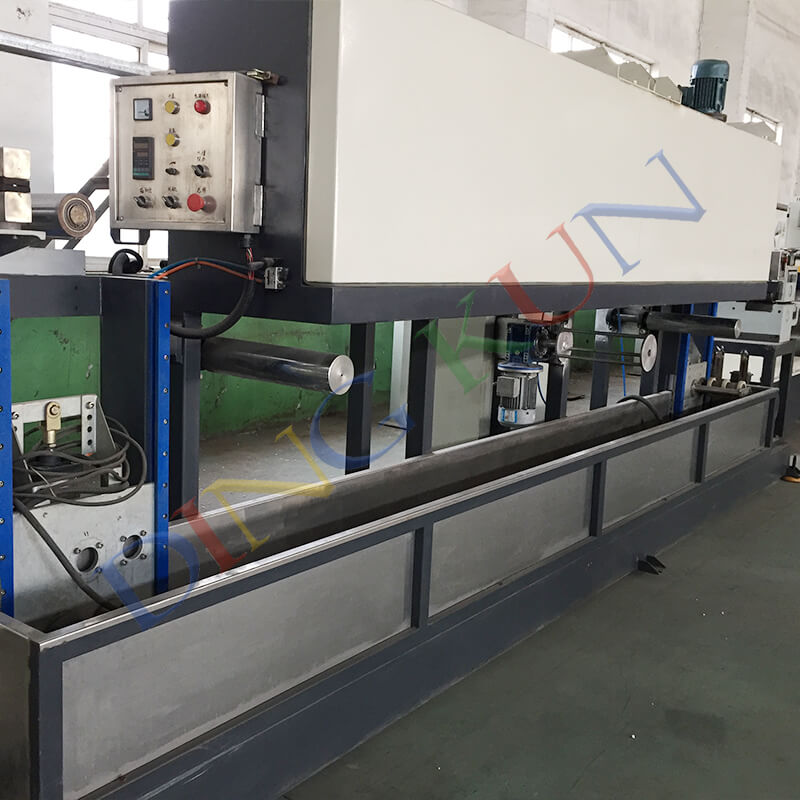

Cooling water bathsMaterialStainless steel
First Tractor machineSpeed of tractor2-80m/min

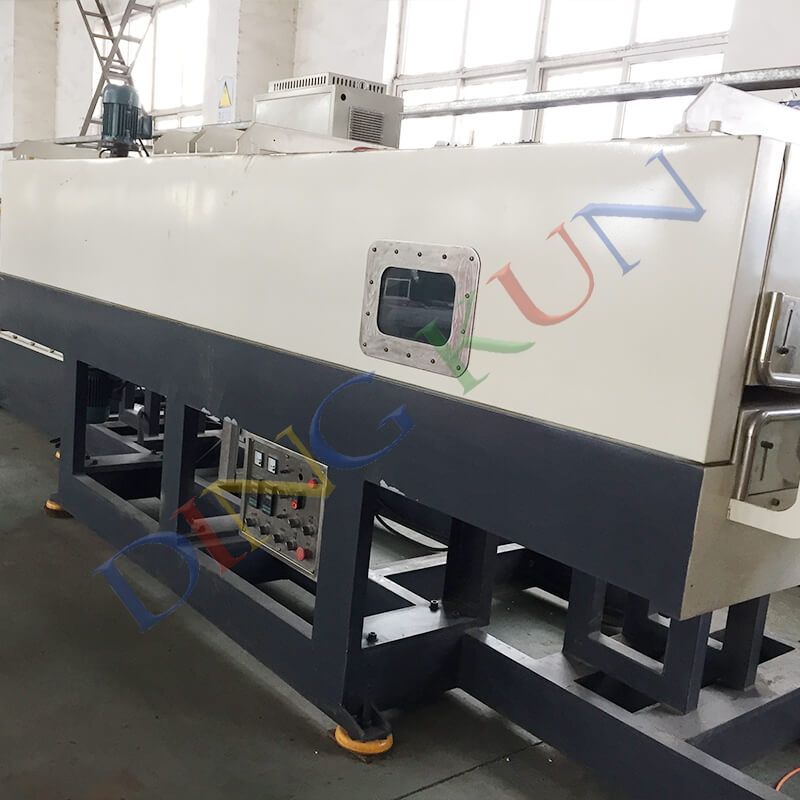

Far-infrared Heating ovenHeating power12kw
First Tractor tensile heating machineTractor speed1-40m/min

Tractor Motor power2.2kw
Far-infrared Heating ovenHeating power12kw
Second Tractor tensile embossed cooling machineTractor Motor power5.5kw

Embossing roller diameter70mm

Cooling unitTractor Motor power:1.5kw
Three Tractor machineTractor speed20-150m/min

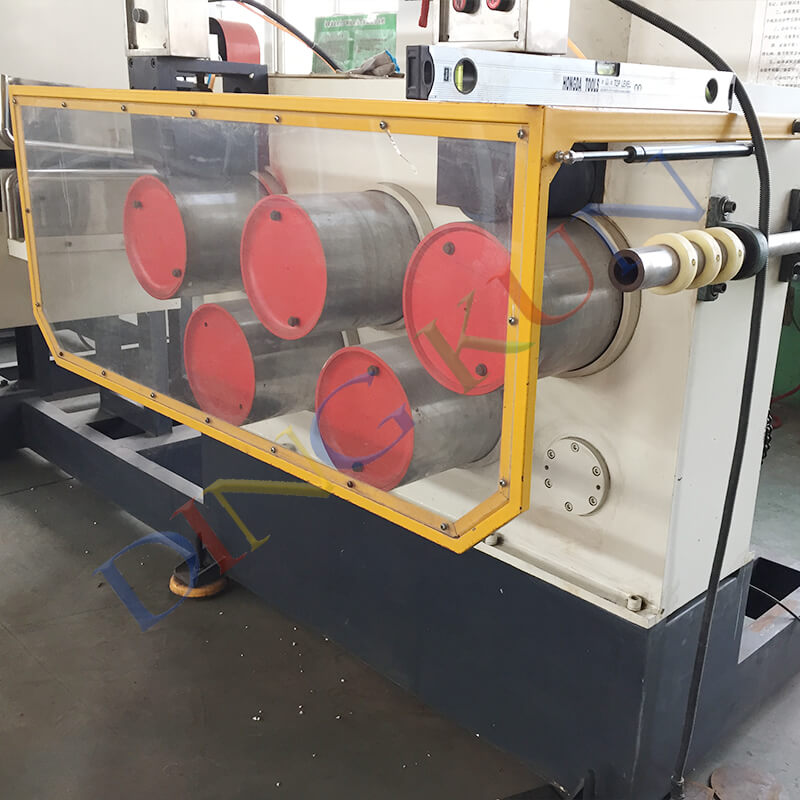

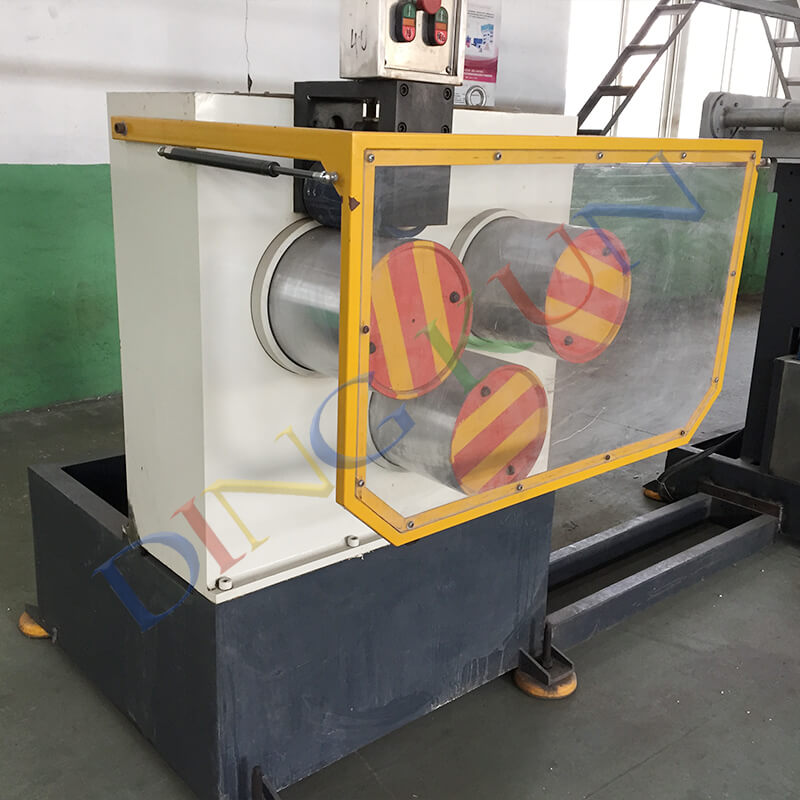

WinderWinding diameter406mm

Best Services

1.Our company will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.

2.After signing contract, company designs groundsill installation chart for water, electricity and gas of equipment basing on real condition and customers’ requirements and provides detail order list and matching manufacturer for reference for customer.

3.After equipment arrival, our service personnel will arrive at posted locale for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product. Service personnel have to arrive at customer’s locale in time when we provide service for client again.
