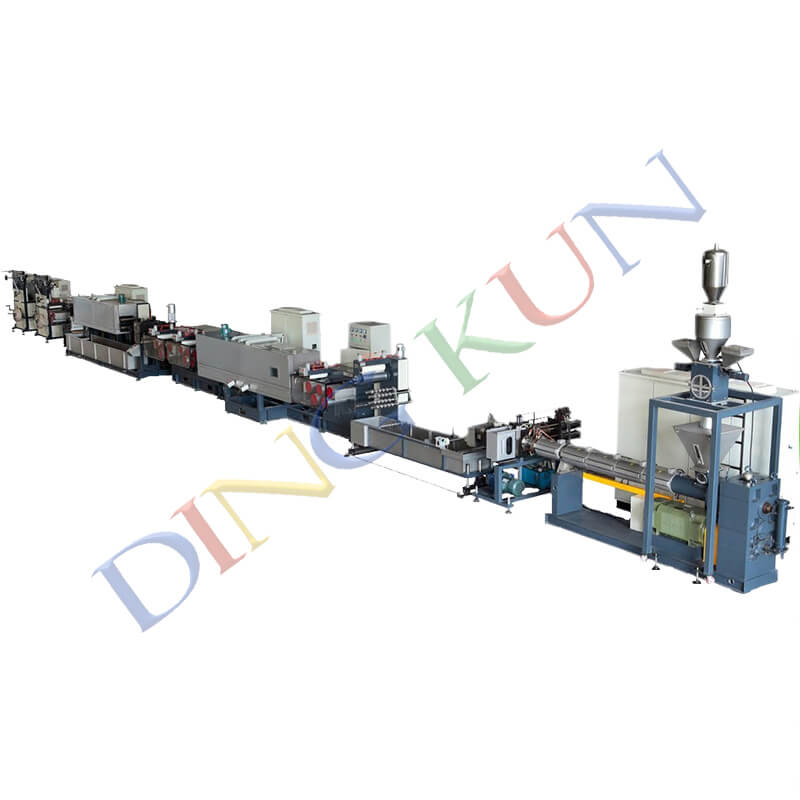

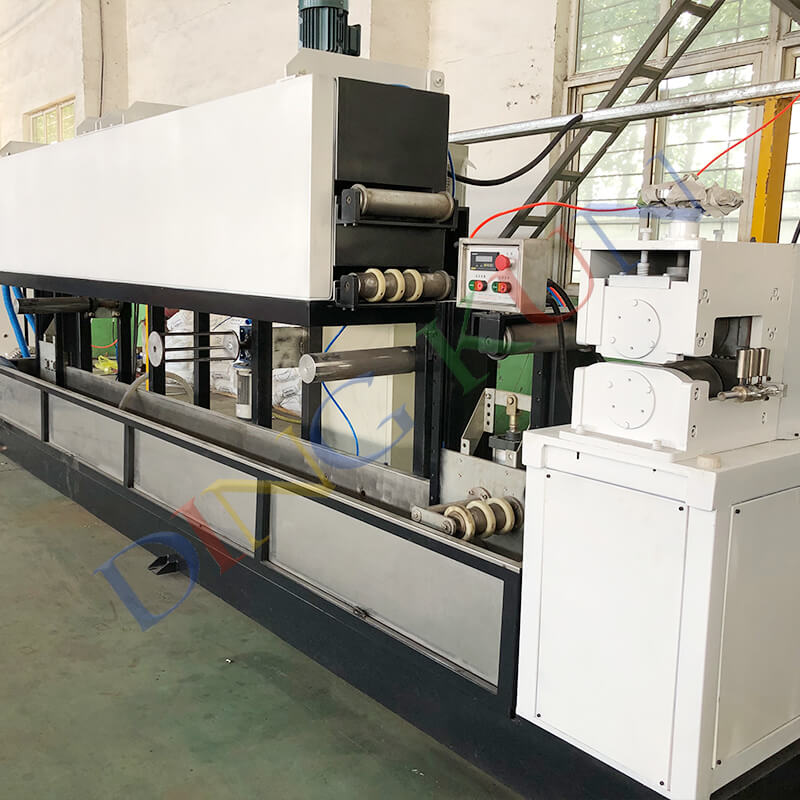

High-End PET Straps Machine (Two-cavity;Four-cavity)
PP and PET Strapping Line:
PET box strap line is suitable for 100% PET Flakes or PET Virgin Granules equipped with Dehumidified air dryer with Crystallizer.
PP Box strap line is suitable for fully automatic heat sealable straps having inbuilt single colour printing unit & two station embossing unit.
Message


PET and PP Box Strap Line - Technical Specifications

MODELJP 70 BSTJP 80 BSTJP 80 PET-STJP 100 PET-ST
Processing MaterialsPP/HDPEPP/HDPEPET FLAKES/GRANULES
Screw Dia (MM)708080100
L/D Ratio30:130:130:130:1
No. of StrapsTwoFourTwoFour
Straps Size (MM)9, 12, 15, 199, 12, 15, 199, 12, 15, 199, 12, 15, 19
Max. Output (Kg./Hr.)75 to 80150 to 160100 to 120200 to 250
Inline PrintingSingle ColourSingle Colour--
No. of Winders3535


China High Quality PP, PET Strapping Machine Manufacturers  / PP, PET Strapping Extruder Machine is new equipment developed by our company ,by combining the characteristics of our plastics product trade ,collecting advantages of the same type machine made in domestic and overseas markets and repeating practice in production.


This is new technology to use the PET bottle flakes to make the PET strap. It is of high performance and lower cost.


The products are used: Mould the steel band and is widely used in the pottery, floor ceramic tile , papermaking , woodwork , fabrics , cotton , nonferrous metals , chemical products , electric cable and trays of different articles are tied up , it is the domestic new developing products


Our PET straps production line, which has broken through the traditional craft route, takes the 100% bottle slice for raw materials without any other complement and crystallization, adopts the advance technology to produce all kinds of polyester straps directly in a economical cost.


ItemQuaitity

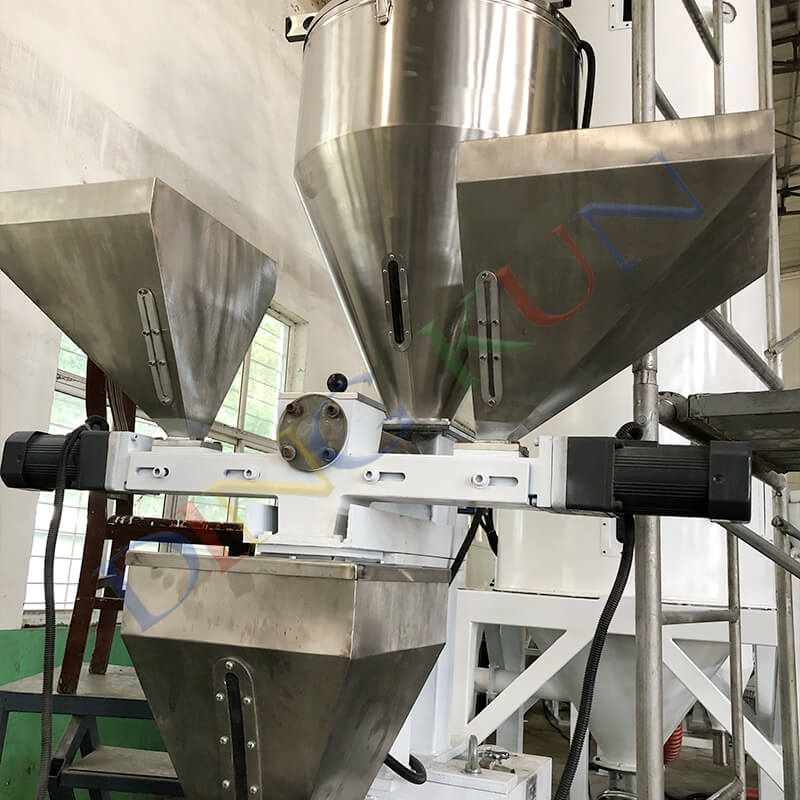

Spiral Feeding SystemTwo sets
Desiccant DryerTwo sets

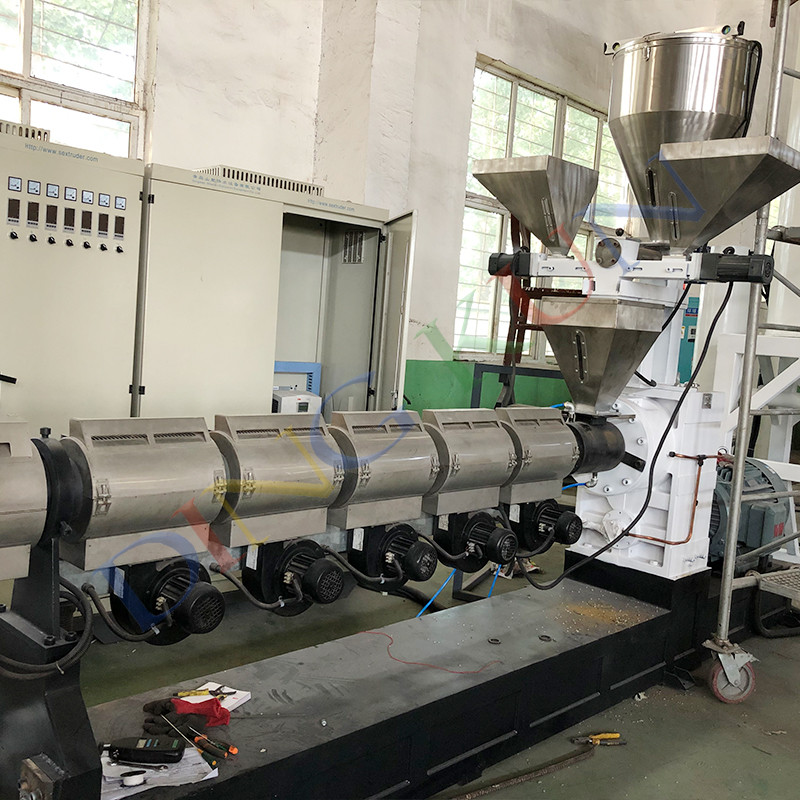

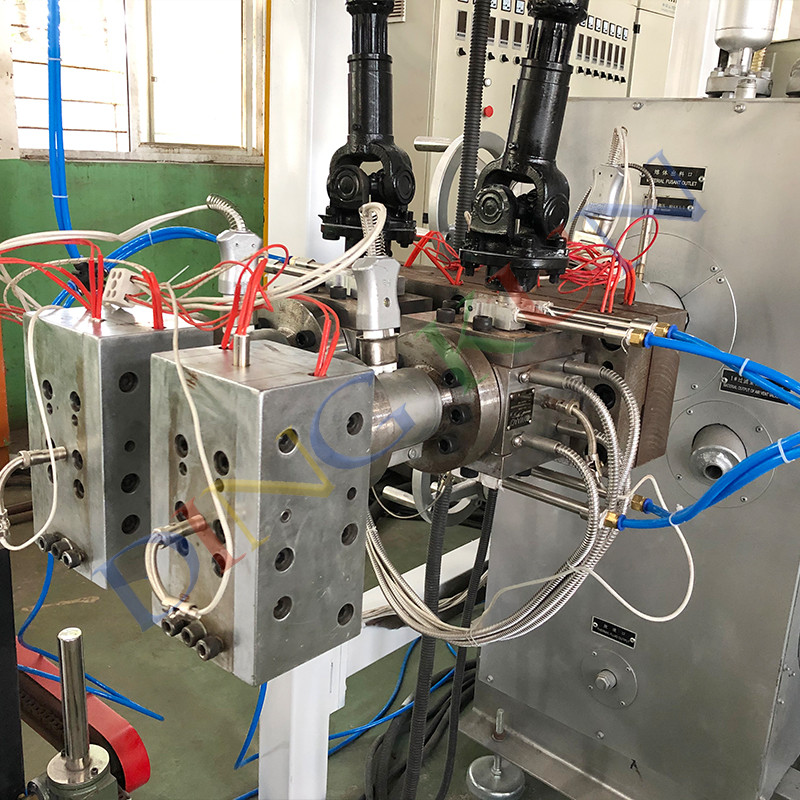

PET-SJ70/30 single screw extruderOne set
Screen exchangerOne set
Die Mold (Qty of packing strap: 1) Width:9-19mmmmOne set

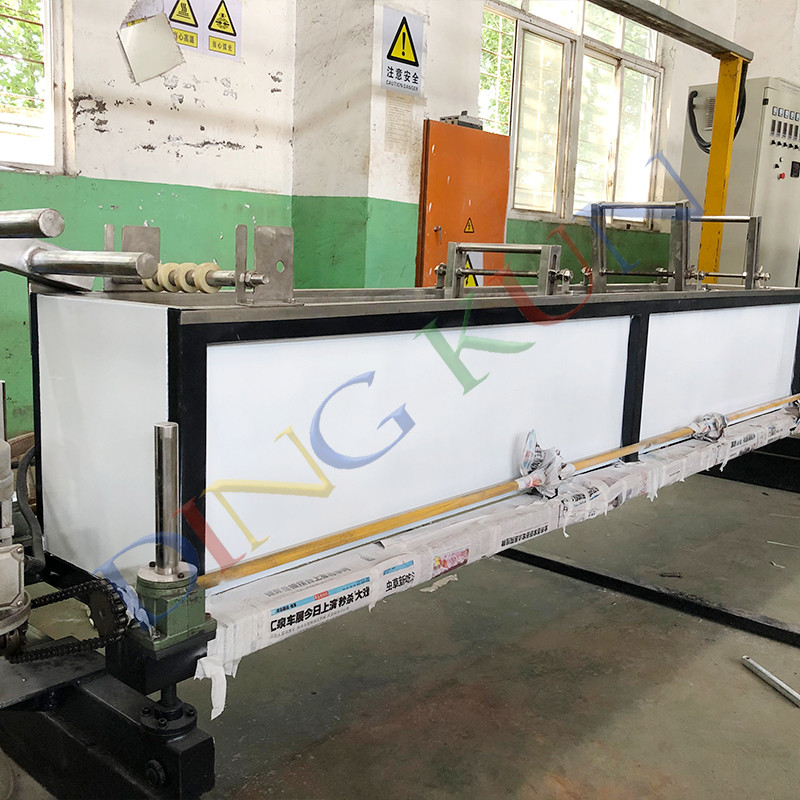

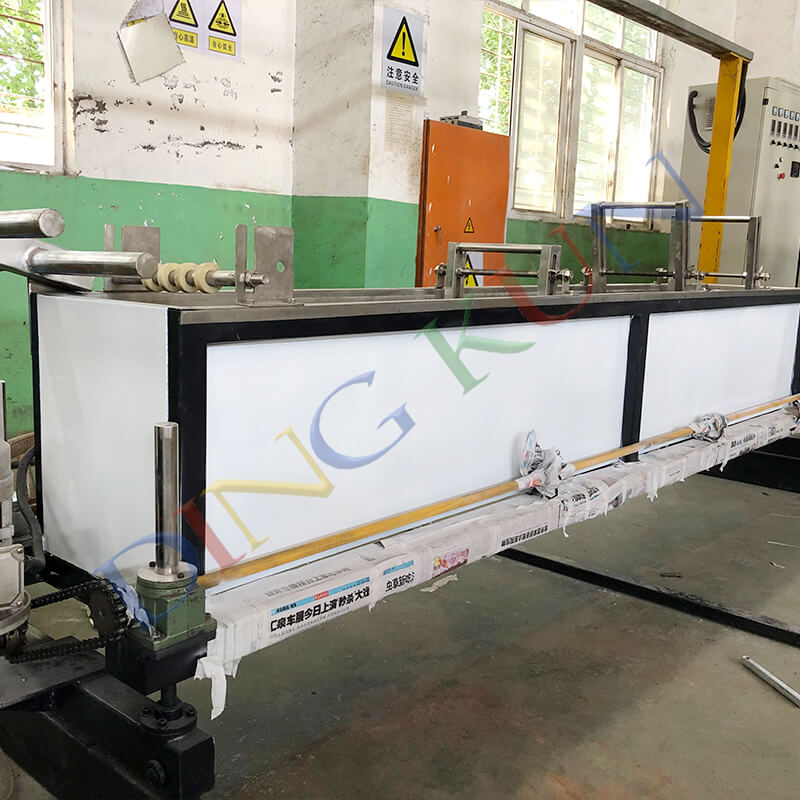

Cooling water bathOne set

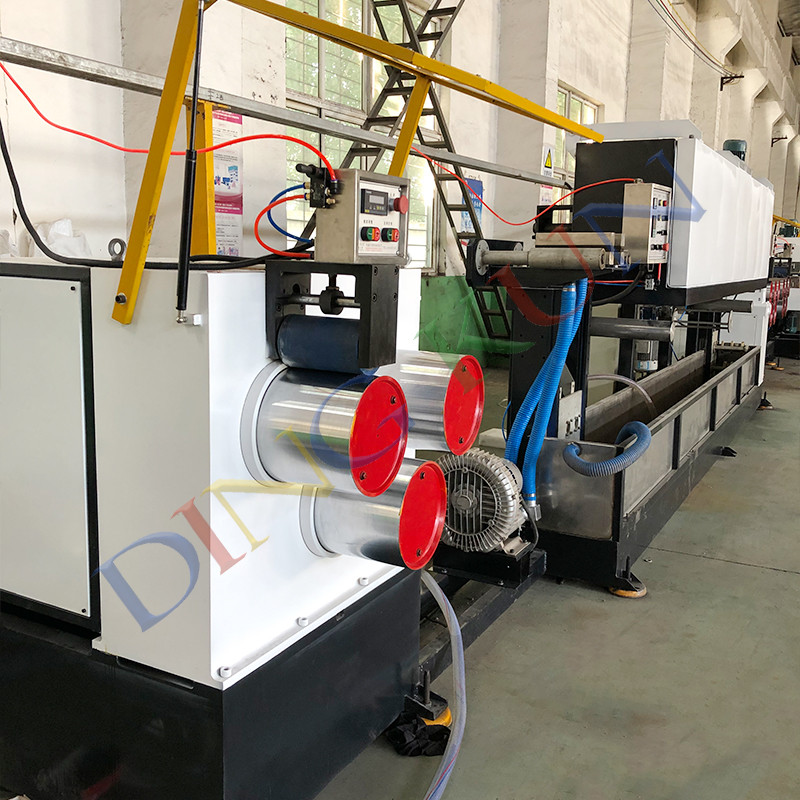

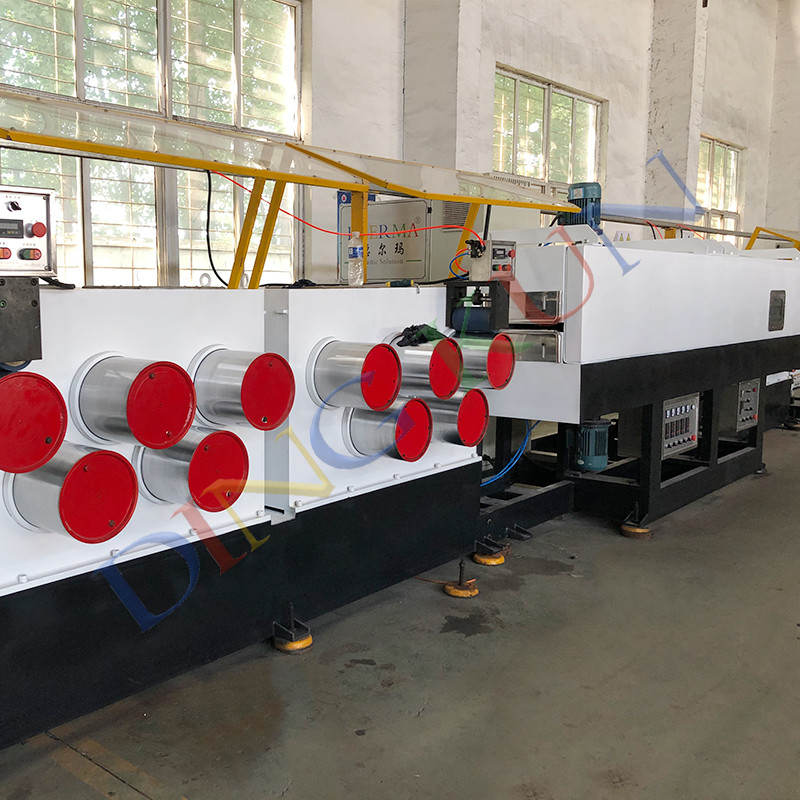

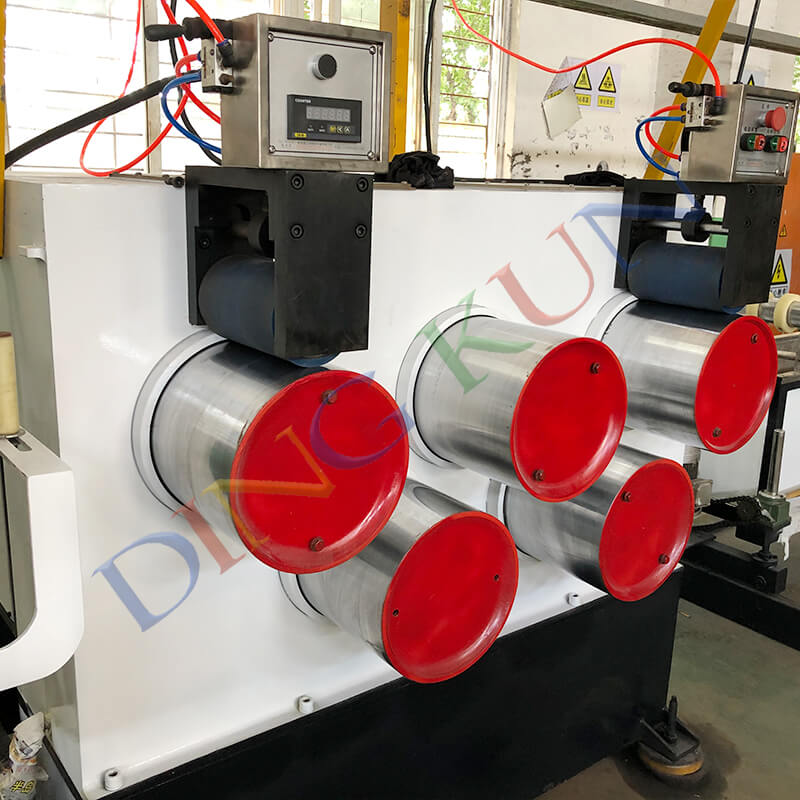

First Tractor machineOne set
Far-infrared Heating ovenOne set
First Tractor tensile machineOne set
Far-infrared Heating ovenOne set
Second Tractor tensile embossed cooling machineOne set
Tight cooling calibration machineOne set
Three Tractor machineOne set
Cooling stainless steel water bathOne set

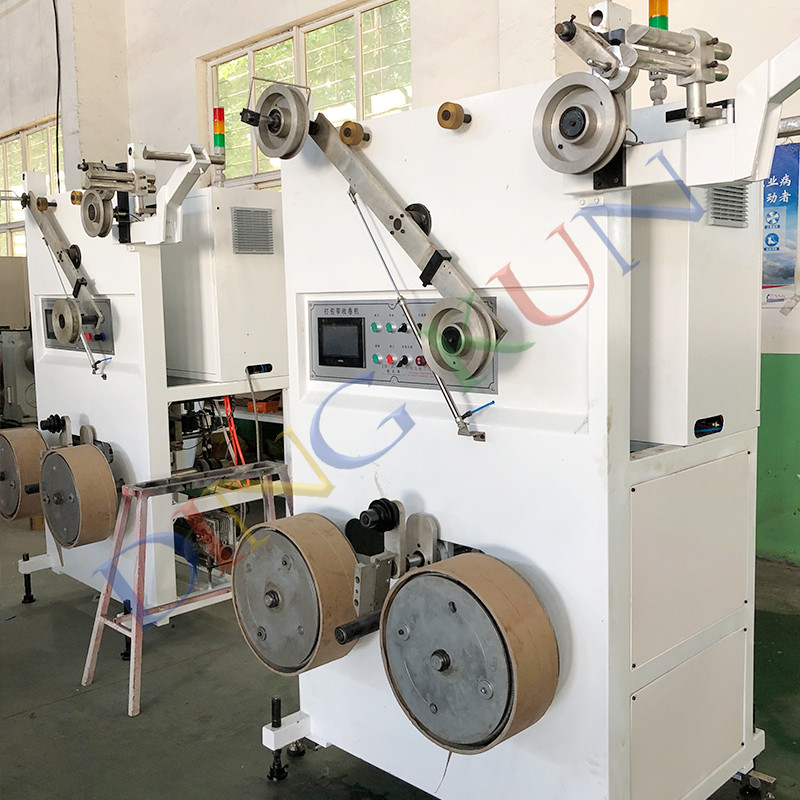

WinderOne set
Optional auxiliary machines for your choice
Printer machineOne set
CrusherOne set

Specifications:

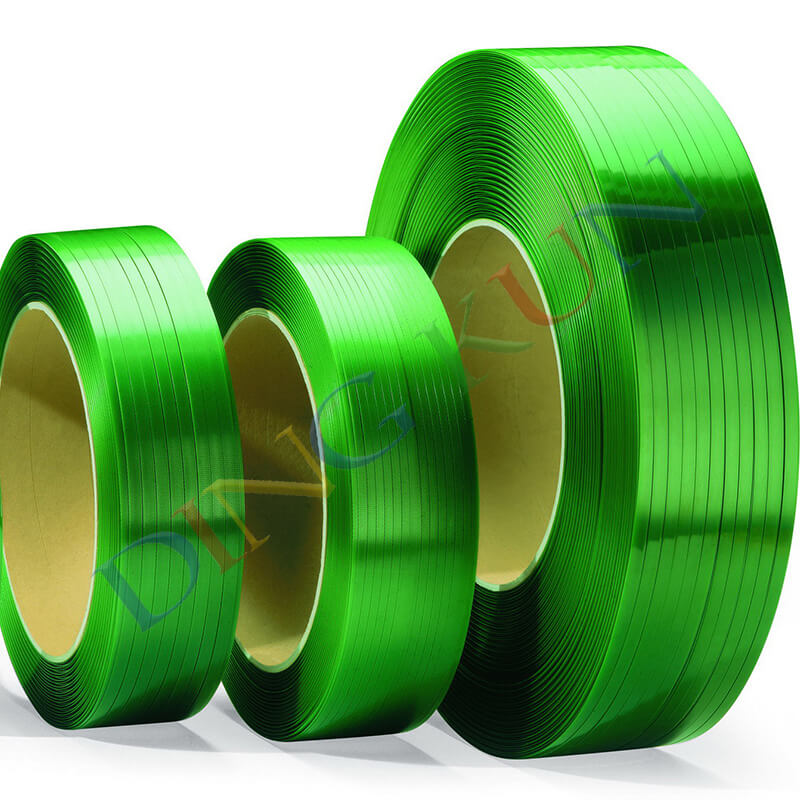

Our machine can produce the PET Strap with width from 9mm to 19mm ;

PET-SJ70/30 single screw extruderMotor power18.5kw
Cooling water bathsMaterialStainless steel
First Tractor machineSpeed of tractor2-80m/min
Far-infrared Heating ovenHeating power12kw
First Tractor tensile heating machineTractor speed1-40m/min

Tractor Motor power2.2kw
Far-infrared Heating ovenHeating power12kw
Second Tractor tensile embossed cooling machineTractor Motor power5.5kw

Embossing roller diameter70mm

Cooling unitTractor Motor power:1.5kw
Three Tractor machineTractor speed20-150m/min
WinderWinding diameter406mm

Pictures











Competitive Advantage

QINGDAO DINGKUN PLASTIC MACHINERY CO.,LTD is committed to providing full support for its local and international clients and dealers and will always provide a prompt response to customer enquiries.

A. More than 11 years Export experience

B. Free training for maintenance personnel;

C. Installation service& commissioning by professional;

D. 100% QC inspection Before Shipment

E. We have passed the certificate as CE, ISO9001,SGS,TUV etc.

F. Calling or Door to Door service

G. One year guarantee for whole machine

I. Export: Egypt, Dubai, Turkey, Iran, Sudan, Saudi, Indonesia, Russia, Uzbekistan, Ukraine etc.


Best Services

1.Our company will provide relevant information on various technology and business consulted by customers. If clients want to visit our company, we will offer all they need for convenience.

2.After signing contract, company designs groundsill installation chart for water, electricity and gas of equipment basing on real condition and customers’ requirements and provides detail order list and matching manufacturer for reference for customer.

3.After equipment arrival, our service personnel will arrive at posted locale for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product. Service personnel have to arrive at customer’s locale in time when we provide service for client again.
