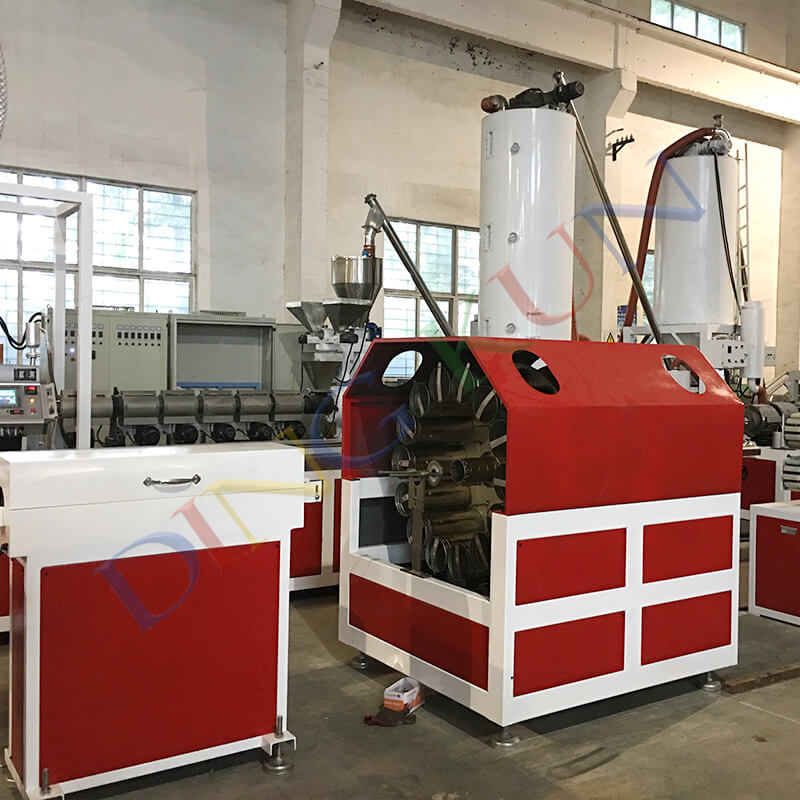

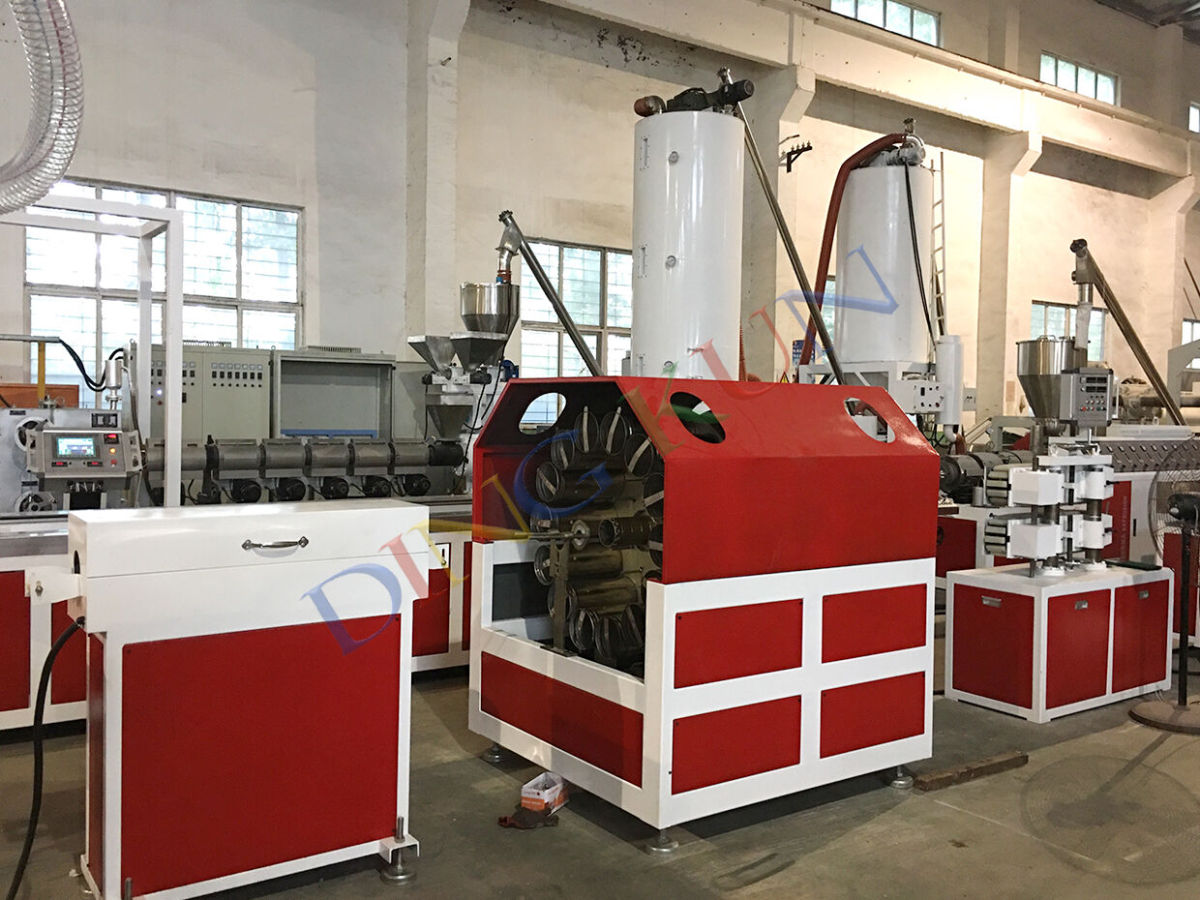

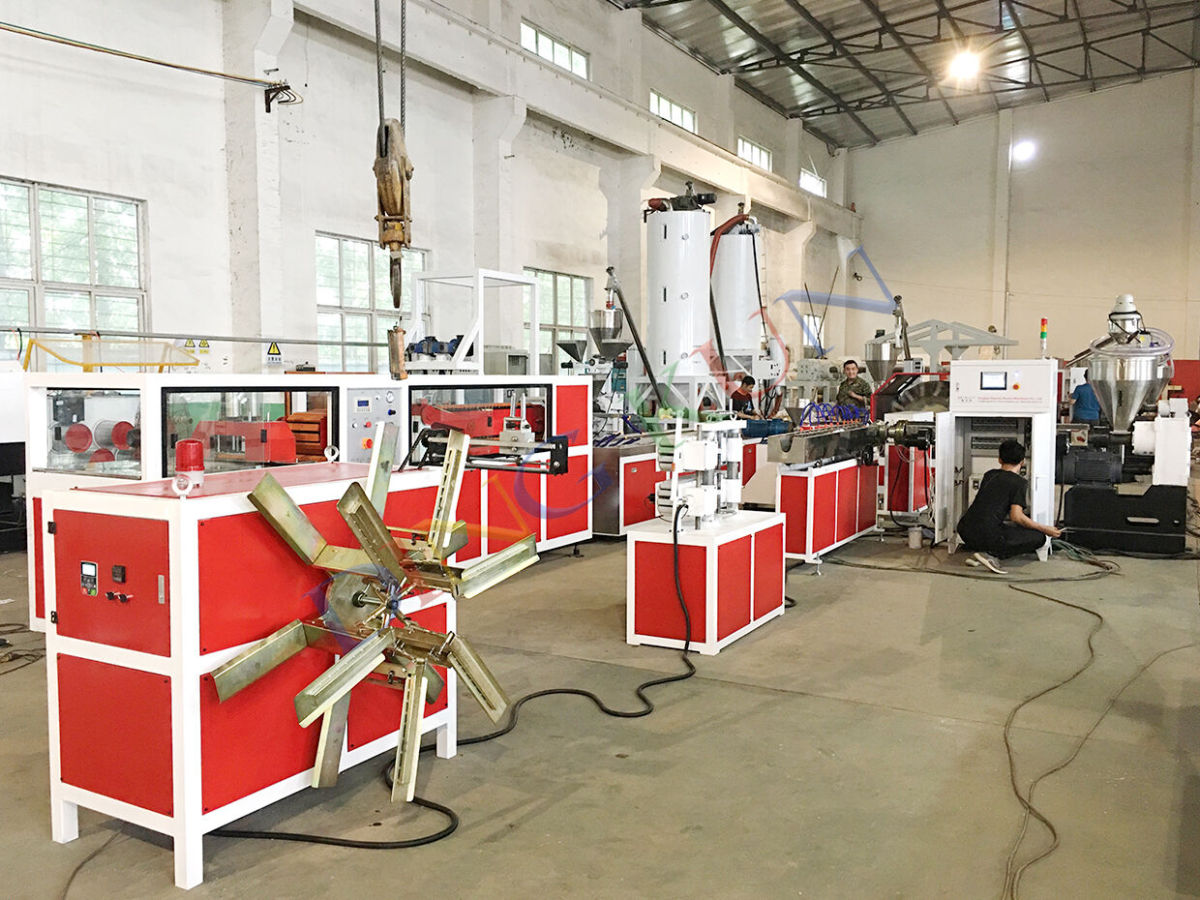

PVC Fiber Reinforced Hose Machine

The PVC Braided Hose Machine/ PVC Fiber Reinforced Hose Extrusion Line, also called gridding pipe and snakeskin pipe which is mainly used to convey the middle pressure or corrosive gas and liquid, it is widely used in such areas as mechanical engineering, coal mine, petroleum, chemical industry, agriculture irrigation, civil application (solar energy water heater, gas-jar), also it can be used in irrigating garden and lawn.

Message

E-mail

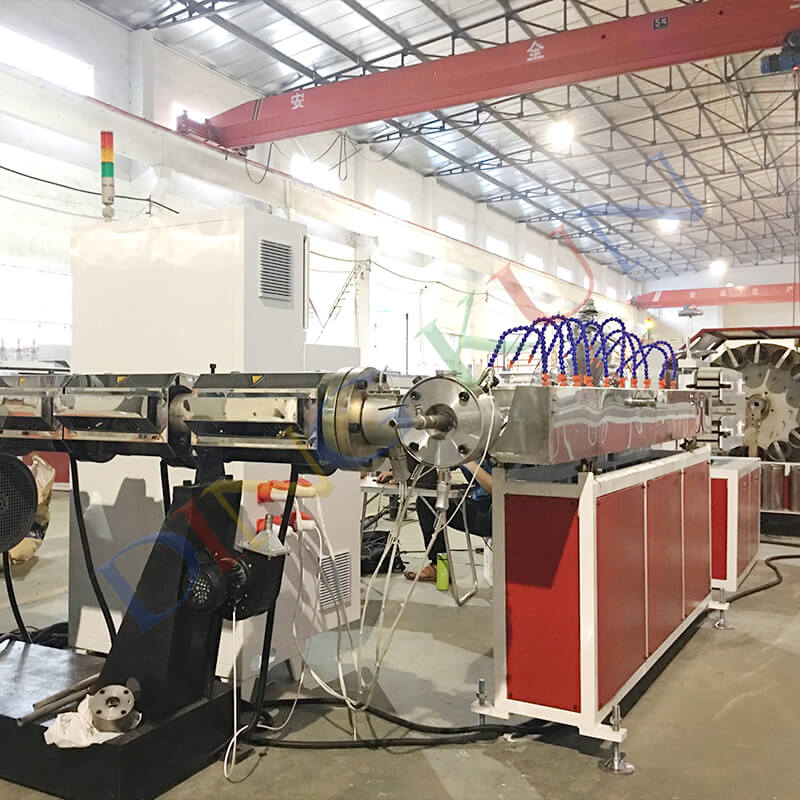

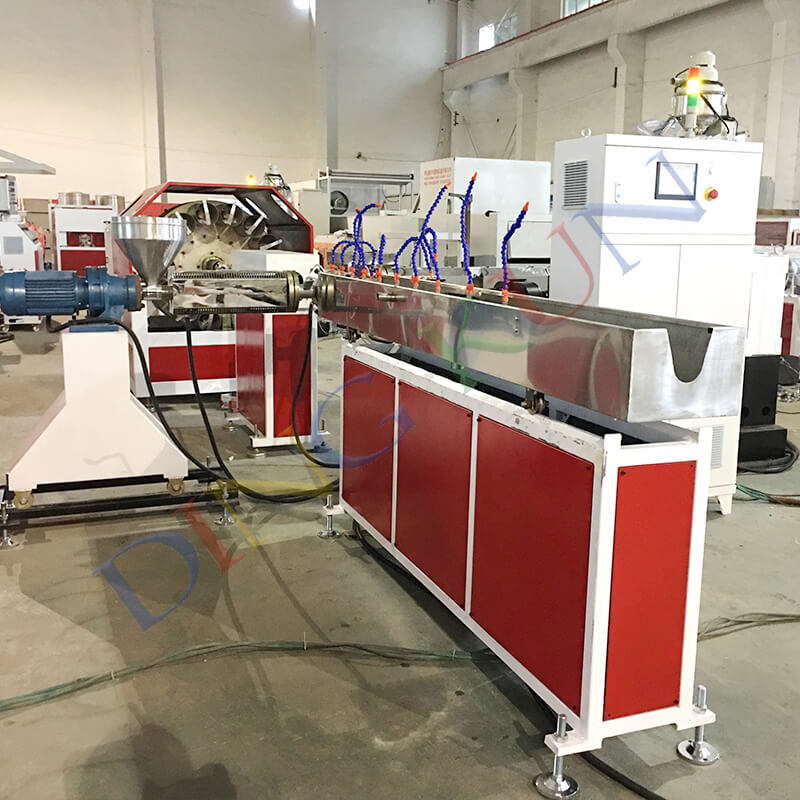

PVC Fiber Reinforced Hose Machine

Main Technical Data

Model	45	55	65	75
Extruder	SJ45/30	SJ55/30	SJ65/30	SJ75/30
Diameter Range(mm)	φ6-φ16	φ8-φ25	φ12-φ50	φ20-φ50
Output(kg/h)	20-40	30-60	40-80	60-110
Installed Power(kw)	35	42	50	65

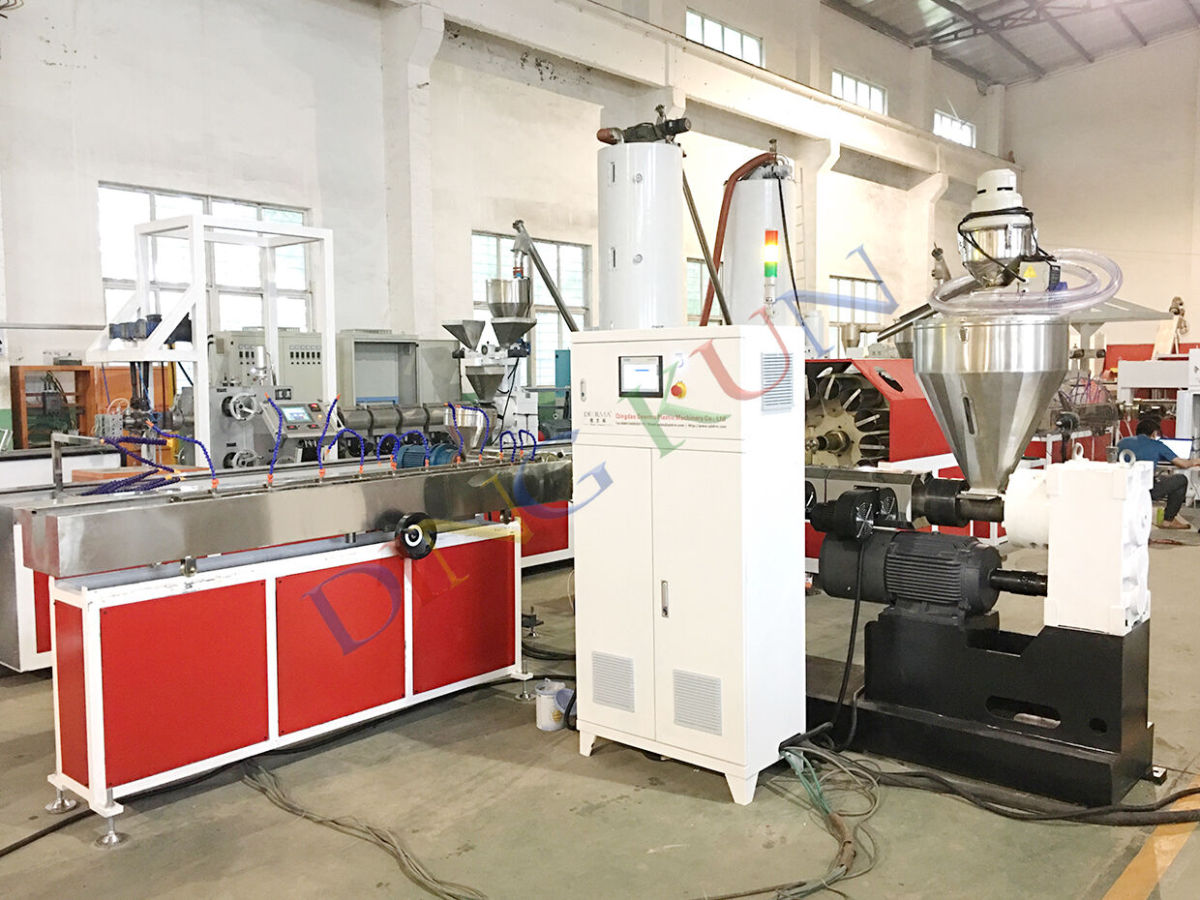

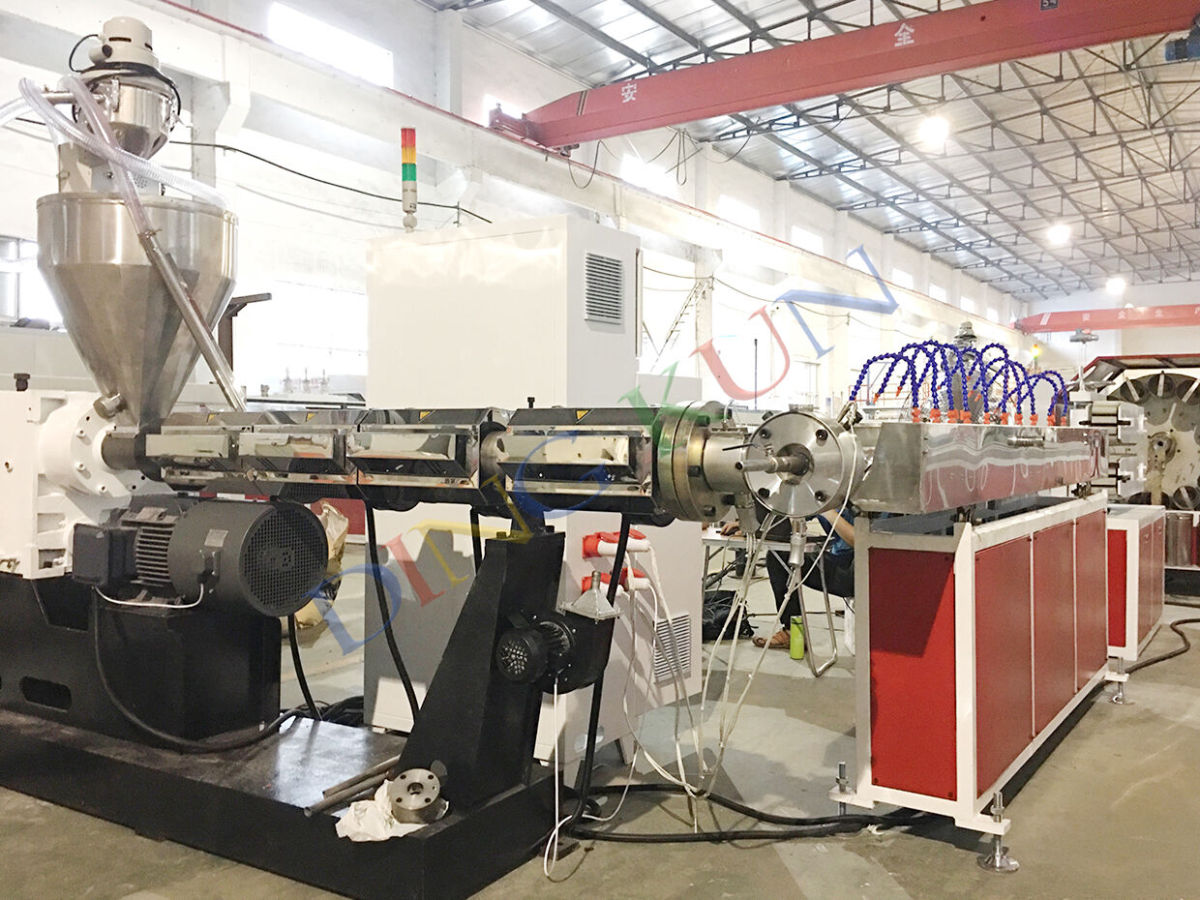

Single Screw Extruder with Plastic Auto Charger

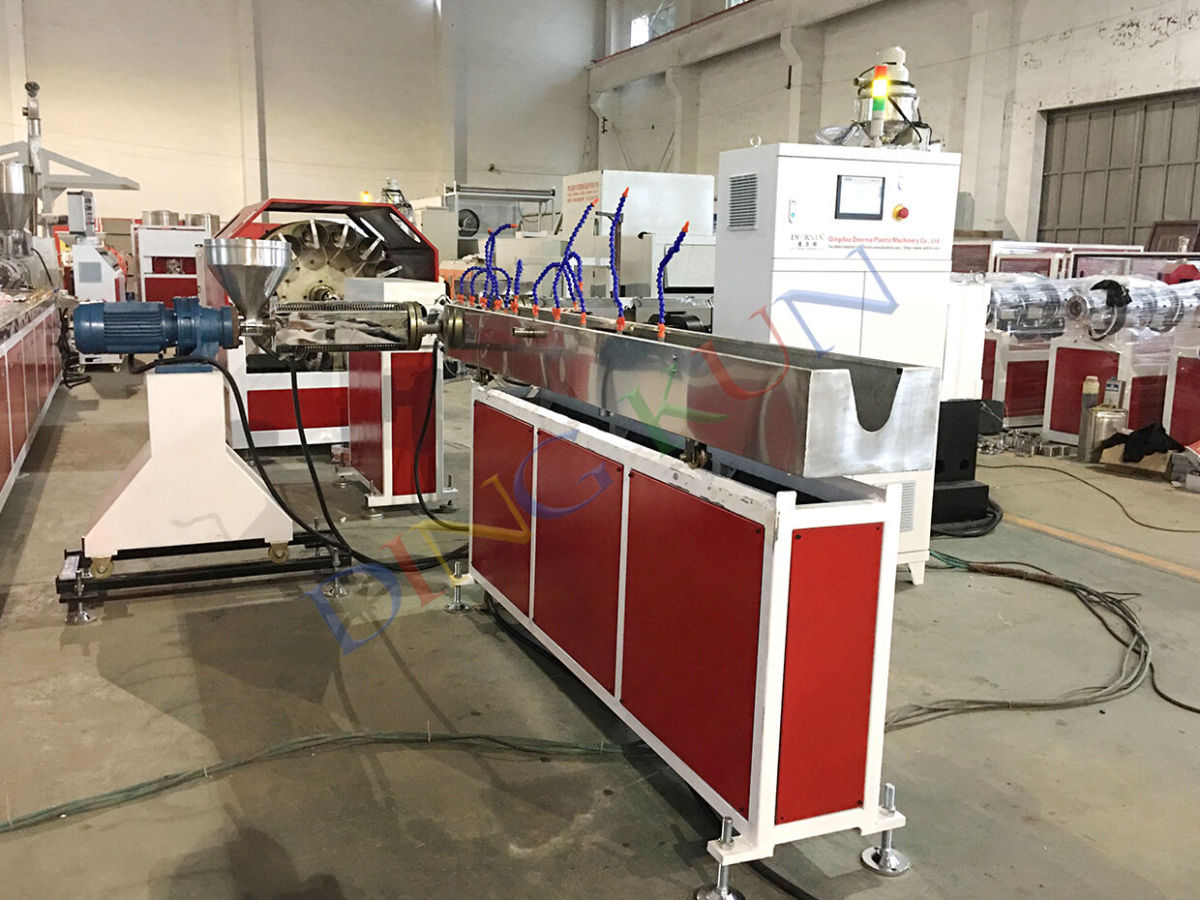

Cooling bath

Drying tank , Haul off Machine

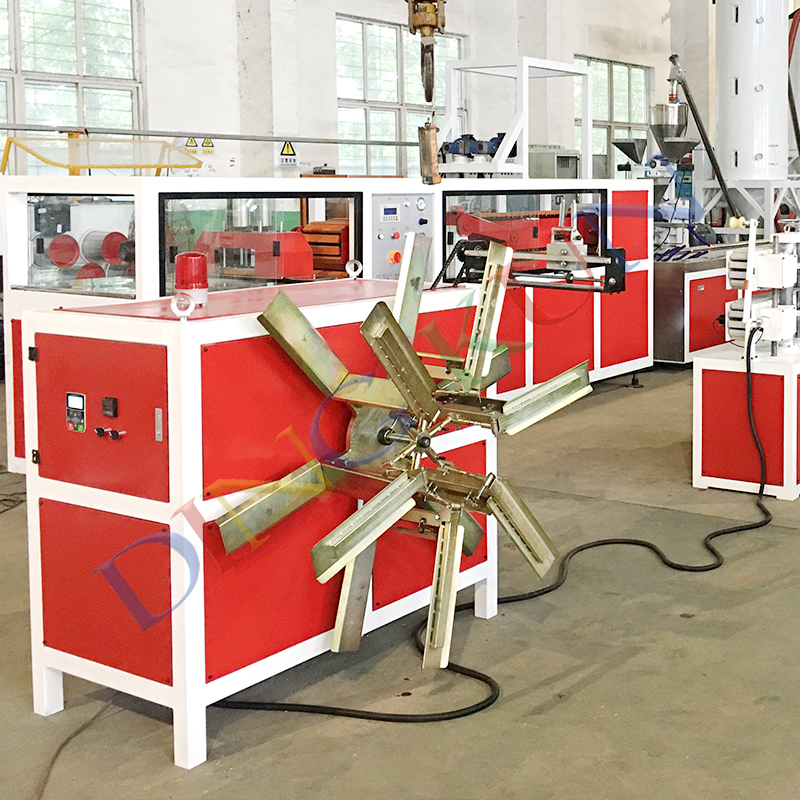

Winder

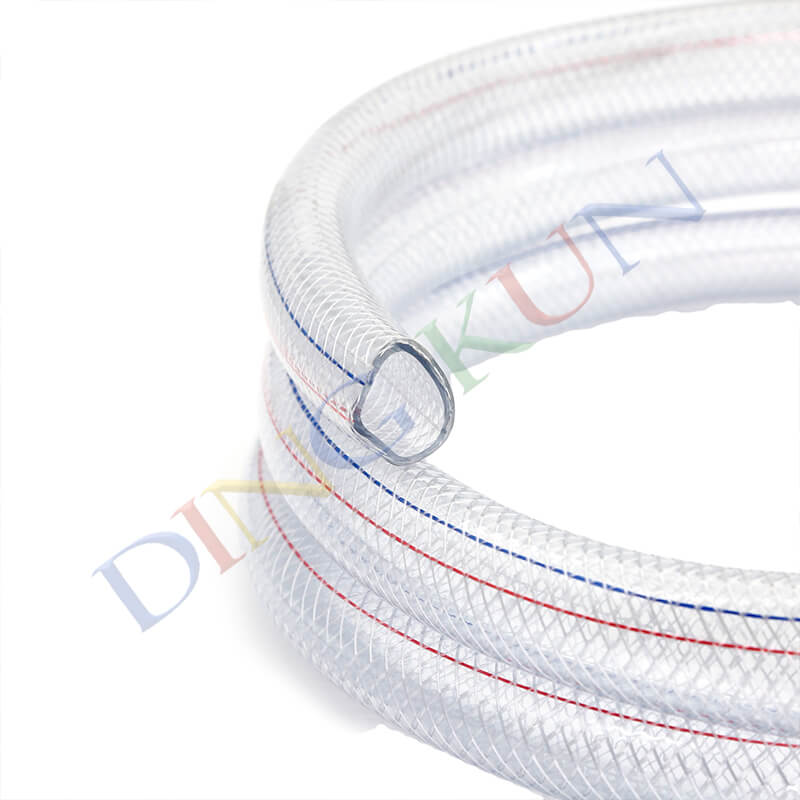

PVC FIBER STRENGTHEN SOFT HOSE--Specifications（Nominal）

BritishMeasurement	Metric Measurement		Length	W.P.	B.P.	Weight	Volume	BritishMeasuremen	Metric Measurement		Length	packing size		W.P.	B.P.	Weight	Volume
BritishMeasurement	1.D.	0.D.	Length	W.P.	B.P.	Weight	Volume	BritishMeasuremen	1.D.	0.D.	Length	diameter	height	W.P.	B.P.	Weight	Volume
inch	mm	mm	m	MPa	MPa	kg/roll	m3	inch	mm	mm	m	mm	mm	MPa	MPa	kg/roll	m3
1/5	5	9	168	0.9	3.0	10	0.024	5/8	15	21	87	600	190	0.8	1.7	20	0.068
1/4	6	9	180	0.8	2.5	10	0.024		16	20	130	600	190	0.6	1.4	20	0.068
	6	10	147	0.9	2.7	10	0.024		16	21	102	600	190	0.7	1.8	20	0.068
	6	11	111	1.0	3.0	10	0.024		16	22	83	800	190	0.5	1.6	20	0.068
	6	12	87	1.2	3.0	10	0.024		18	24	75	700	190	0.5	1.4	20	0.093
5/16	8	11.4	143	0.7	2.4	10	0.029	3/4	19	23	112	700	190	0.6	1.4	20	0.093
	8	12	118	0.9	2.4	10	0.027		19	24	87	700	190	0.6	1.6	20	0.093
	8	13	90	1.0	3.0	10	0.253		19	25	71	700	190	0.6	1.5	20	0.093
	8	14	71	1.2	3.2	10	0.027		19	26	60	700	190	0.6	1.5	20	0.093
3/8	9	13	107	0.7	2.7	10	0.026	3/4	20	25	83	700	190	0.5	1.0	20	0.093
3/8	9	14	82	0.8	3.0	10	0.026		20	26	68	700	190	0.5	1.0	20	0.093
3/8	10	13.6	110	0.6	2.4	10	0.026		20	27	57	700	190	0.5	1.0	20	0.093
	10	14	98	0.7	2.4	10	0.030		22	30	45	700	190	0.5	1.0	20	0.093
	10	15	75	0.8	2.5	10	0.028	1	25	30	68	700	190	0.5	1.2	20	0.093
	10	16	60	0.9	2.8	10	0.028		25	31	56	700	190	0.5	1.2	20	0.093
1/2	12	16	168	0.6	2.0	20	0.064		25	32	47	700	190	0.5	1.2	20	0.093
	12	17	130	0.7	2.1	20	0.064	1-1/4	32	39	57	770	230	0.5	1.2	30	0.136
	12	17.5	116	0.8	2.4	20	0.064		32	40	49	770	230	0.5	1.2	30	0.136
	12	18	105	0.9	2.7	20	0.064		32	41	43	770	230	0.5	1.2	30	0.136
1/2	13	17	157	0.5	1.5	20	0.064	1-1/2	38	45	48	800	210	0.5	1.2	30	0.134
	13	18	122	0.6	1.8	20	0.064		38	46	42	800	210	0.5	1.2	30	0.134
	13	19	98	0.7	2.1	20	0.064		38	47	37	800	210	0.5	1.2	30	0.134
	14	19	114	0.5	1.5	20	0.061		45	55	47	900	240	0.4	1.1	50	0.194
	14	20	92	0.6	1.6	20	0.061	2	50	60	42	980	240	0.4	1.1	50	0.230
5/8	15	19.4	125	0.6	1.6	20	0.061	2	50	62	35	980	240	0.4	1.1	50	0.230
5/8	15	20	107	0.7	1.6	20	0.061	2-1/2	64	78	20	980	240	0.4	1.1	43.4	0.37
3	75	92	20	0.4	1.1	62.5	0.40

Qingdao Dingkun Plastic Machinery Co.,Ltd . manufacture PVC Braided Hose Machine/ PVC Fiber Reinforced Hose Machine and supply OEM, ODM service according to your requirement. Our PVC Braided Hose Extrusion Line is good in quality and competitive in price, welcome to contact us for more details of PVC Braided Hose Extrusion Line or related products.
